Toyota AURIS-HYBRID-UKP 2016 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84550-33010 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186..LHD Production:2015-05 – … | |||
| 82755-02040 | BLOCK, CENTER RELAY | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186..LHD Production:2015-05 – … | |||
| 84345-51010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … | |||
| 84340-09020 | SWITCH ASSY, STOP LAMP | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … | |||
| 89121-12010 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186..D,N,S Production:2015-05 – … Spec:PRE-COLLISION SYSTEM-WITH | |||
| 89650-12D70 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:ZWE186..LHD Production:2015-05 – … | |||
| — | Part does not apply to this vehicle configuration. | 84520 | — |
| — | Part does not apply to this vehicle configuration. | 89940 | — |
| 82673-02120 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186..LHD Production:2015-05 – … | |||
| 82673-02130 | BRACKET, JUNCTION BLOCK | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186..LHD Production:2015-05 – … | |||
| 82673-02110 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186..LHD Production:2015-05 – … | |||
| 82755-02050 | BLOCK ASSY, RELAY | 1 | |
Note:ZWE186..LHD..(G,N,S) Production:2015-05 – 2016-06 | |||
| 82755-02050 | BLOCK ASSY, RELAY | 1 | |
Note:ZWE186..LHD..(G,N,S) Production:2016-06 – 2016-07 Rev.ref.no To:0016 Serial Ranges:Other: To E273154 · ZWE186 · · 00160060 | |||
| — | Part does not apply to this vehicle configuration. | 85940 | — |
| 89535-12021 | COMPUTER ASSY, TRANSMISSION CONTROL | 1 | |
Note:ZWE186 Production:2015-05 – … | |||
| 69065-02010 | CYLINDER SUB-ASSY, AIRBAG CUT OFF SWITCH | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Replacements:69065-12460 (fitment: unknown) | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Spec:30A,FEMALE,PNK,32V | |||
| 82730-12X81 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186..G,N,S Production:2016-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 85903 | — |
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | INSTRUMENT PANEL FUSE | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Spec:25A,MINI FUSE | |||
| 82672-12450 | COVER, JUNCTION BLOCK | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … | |||
| 82877-02020 | BOX, COMPUTER INTEGRATION, RH | 1 | |
Note:NDE180,ZRE185..G;NRE185..LHD..6F..G;NRE185,ZWE186..LHD..CVT Production:2015-05 – … | |||
| 89220-02620 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186..LHD..WG Production:2015-05 – … | |||
| 89981-02050 | COMPUTER ASSY, HYBRID VEHICLE CONTROL | 1 | |
Note:ZWE186 Production:2016-04 – 2018-05 Spec:TOWING PACKAGE | |||
| 90987-02027 | RELAY, FOG LAMP | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186..G,N,S Production:2015-05 – … | |||
| — | Part does not apply to this vehicle configuration. | 85910V | — |
| 90987-02027 | RELAY, POWER OUTLET SOCKET | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … | |||
| 90080-87021 | RELAY, LAMP CUT | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Replacements:90987-02012 (fitment: unknown) | |||
| 90080-87021 | RELAY, DAY TIME RUNNING LIGHT, NO.1 | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Replacements:90987-02012 (fitment: unknown) | |||
| 90119-W0156 | standard | — | |
Replacements:90119-06952 (fitment: unknown) | |||
| 90179-06110 | standard | — | |
| 90119-W0030 | standard | — | |
Replacements:91671-80616 (fitment: unknown) | |||
| 90159-60613 | standard | — | |
| 94120-41000 | standard | — | |
| 90159-W0007 | standard | — | |
Replacements:90159-60431 (fitment: unknown) | |||
| 90159-W0012 | standard | — | |
Replacements:90159-70004 (fitment: unknown) | |||
| 93315-14012 | standard | — | |

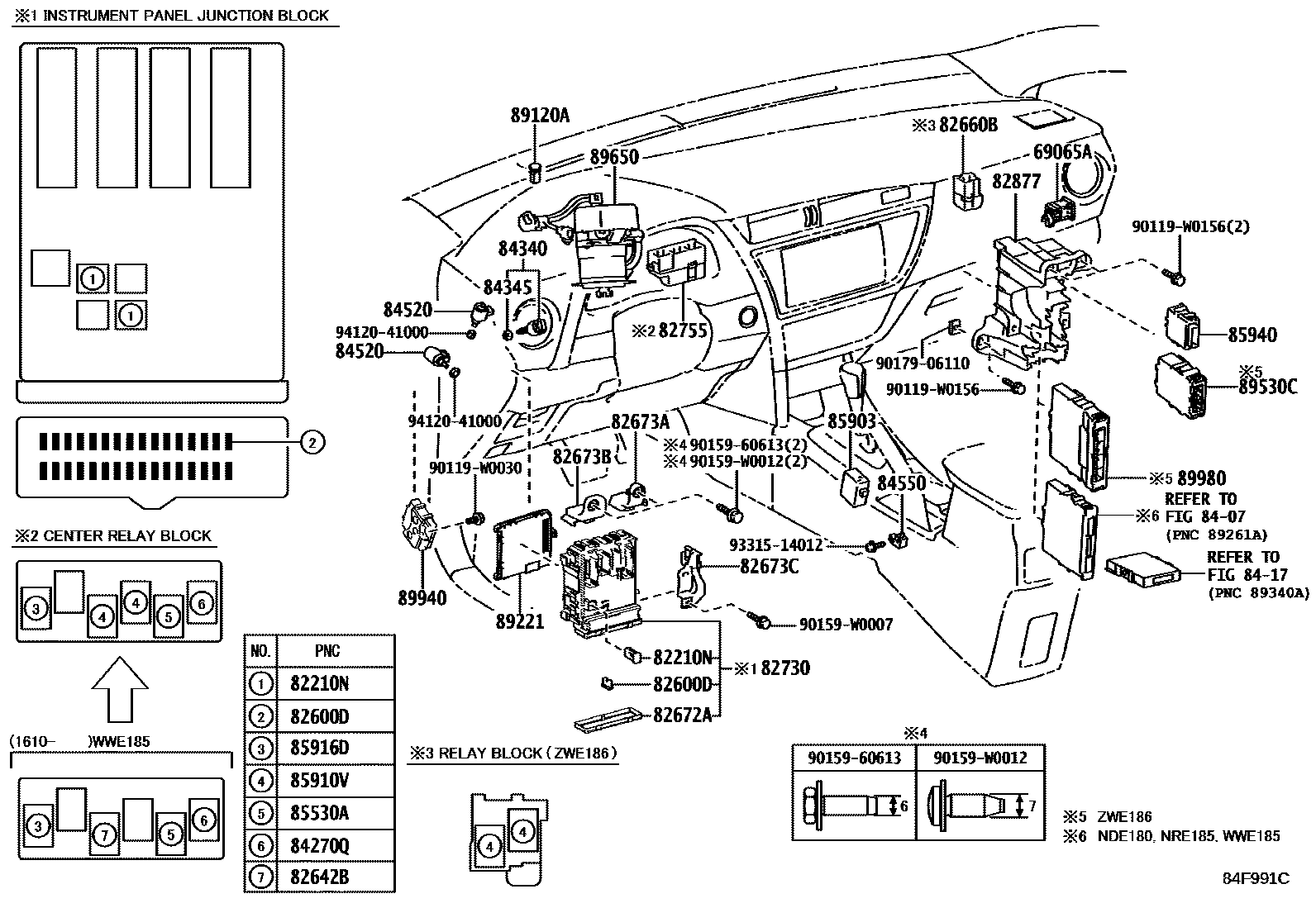

Diagram
37 parts
