Toyota AURIS-HYBRID-UKP 2016 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90080-87021 | RELAY, COOLING FAN | 1 | |
Note:NDE180,NRE180,ZRE185,ZWE186 Production:2015-05 – … Replacements:90987-02012 (fitment: unknown) | |||
| 90080-87030 | RELAY, IGCT | 1 | |
Note:ZWE186 Production:2015-05 – … Replacements:90987-02025 (fitment: unknown) | |||
| 90080-87021 | RELAY, COOLING FAN, NO.3 | 1 | |
Note:ZWE186 Production:2015-05 – … Replacements:90987-02012 (fitment: unknown) | |||
| 90080-87020 | RELAY, DEFOGGER | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Replacements:90987-04004 (fitment: unknown) | |||
| 90080-87021 | RELAY, DAY TIME RUNNING LIGHT, NO.1 | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Replacements:90987-02012 (fitment: unknown) | |||
| 90080-87021 | RELAY, BACK UP LAMP | 1 | |
Note:ZWE186 Production:2015-05 – … Replacements:90987-02012 (fitment: unknown) | |||
| 90080-87021 | RELAY, WATER PUMP | 1 | |
Note:2ZRFXE..ZWE186 Production:2015-05 – … Replacements:90987-02012 (fitment: unknown) | |||
| 90080-87021 | RELAY, TRANSAXLE PARKING LOOK CONTROL | 1 | |
Note:ZWE186 Production:2015-05 – … Replacements:90987-02012 (fitment: unknown) | |||
| 90080-87030 | RELAY, HEADLAMP | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Replacements:90987-02025 (fitment: unknown) | |||
| 90982-09019 | ENGINE ROOM FUSE | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | ENGINE ROOM FUSE | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | ENGINE ROOM FUSE | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | ENGINE ROOM FUSE | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | ENGINE ROOM FUSE | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | ENGINE ROOM FUSE | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … Spec:25A,MINI FUSE | |||
| 90982-09025 | ENGINE ROOM FUSE | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … Spec:30A,MINI FUSE,GRN | |||
| 90982-08294 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … Spec:40A,FEMALE,GRN,58V | |||
| 90982-08295 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … Spec:30A,FEMALE,PNK,58V | |||
| 90982-08296 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … Spec:50A,FEMALE,RED,58V | |||
| 90982-08297 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:ZWE186 Production:2015-05 – … Spec:125A,PINK | |||
| 90982-08300 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:ZWE186 Production:2015-05 – … Spec:50A-30A-30A,FEMALE | |||
| 90982-08305 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … Spec:80A,TERM.:FEMALE,BLK | |||
| 90080-87020 | RELAY, STOP LAMP | 1 | |
Note:NDE180,NRE18#,WWE185,ZRE185,ZWE186 Production:2015-05 – … Replacements:90987-04004 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 88185A | — |
| 82641-47020 | RELAY, INTEGRATION NO.1 | 1 | |
Note:ZWE186 Production:2015-05 – … | |||
| — | Part does not apply to this vehicle configuration. | 87346K | — |
| 90080-87021 | RELAY, HEADLAMP DIMMER | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Replacements:90987-02012 (fitment: unknown) | |||
| 90080-87020 | RELAY, COOLING FAN, NO.2 | 1 | |
Note:ZWE186 Production:2015-05 – … Replacements:90987-04004 (fitment: unknown) | |||
| 90080-87030 | RELAY, ELECTRIC POWER STEERING | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … Replacements:90987-02025 (fitment: unknown) | |||
| 82661-02040 | COVER, RELAY BLOCK, NO.3 | 1 | |
Note:ZWE186 Production:2015-05 – … | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:NDE180,NRE18#,ZRE185,ZWE186 Production:2015-05 – … | |||
| 82631-02070 | HOLDER, FUSE | 1 | |
Note:ZWE186 Production:2015-05 – … | |||
| 82662-02B70 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:ZWE186 Production:2015-05 – 2016-10 | |||
| 82741-02080 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:ZWE186 Production:2015-05 – … | |||
| 82663-02080 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:ZWE186 Production:2015-05 – … | |||
| 82660-0H070 | BLOCK ASSY, RELAY | 1 | |
Note:ZWE186 Production:2015-05 – … | |||
| 82660-42030 | BLOCK ASSY, RELAY | 1 | |
Note:ZWE186 Production:2015-05 – … | |||
| 82660-0C110 | BLOCK ASSY, RELAY | 1 | |
Note:ZWE186 Production:2015-05 – … | |||
| 82661-02010 | COVER, RELAY BLOCK LOWER, NO.4 | 1 | |
Note:ZWE186..RHD Production:2015-05 – … | |||
| 82660-08010 | BLOCK ASSY, RELAY | 1 | |
Note:ZWE186 Production:2015-05 – … | |||
| — | Part does not apply to this vehicle configuration. | 82662B | — |
| — | Part does not apply to this vehicle configuration. | 82742 | — |
| — | Part does not apply to this vehicle configuration. | 82663A | — |
| — | Part does not apply to this vehicle configuration. | 82660F | — |
| 82715-02J10 | standard | — | |
| 90119-W0061 | standard | — | |
Replacements:91673-80820 (fitment: unknown) | |||

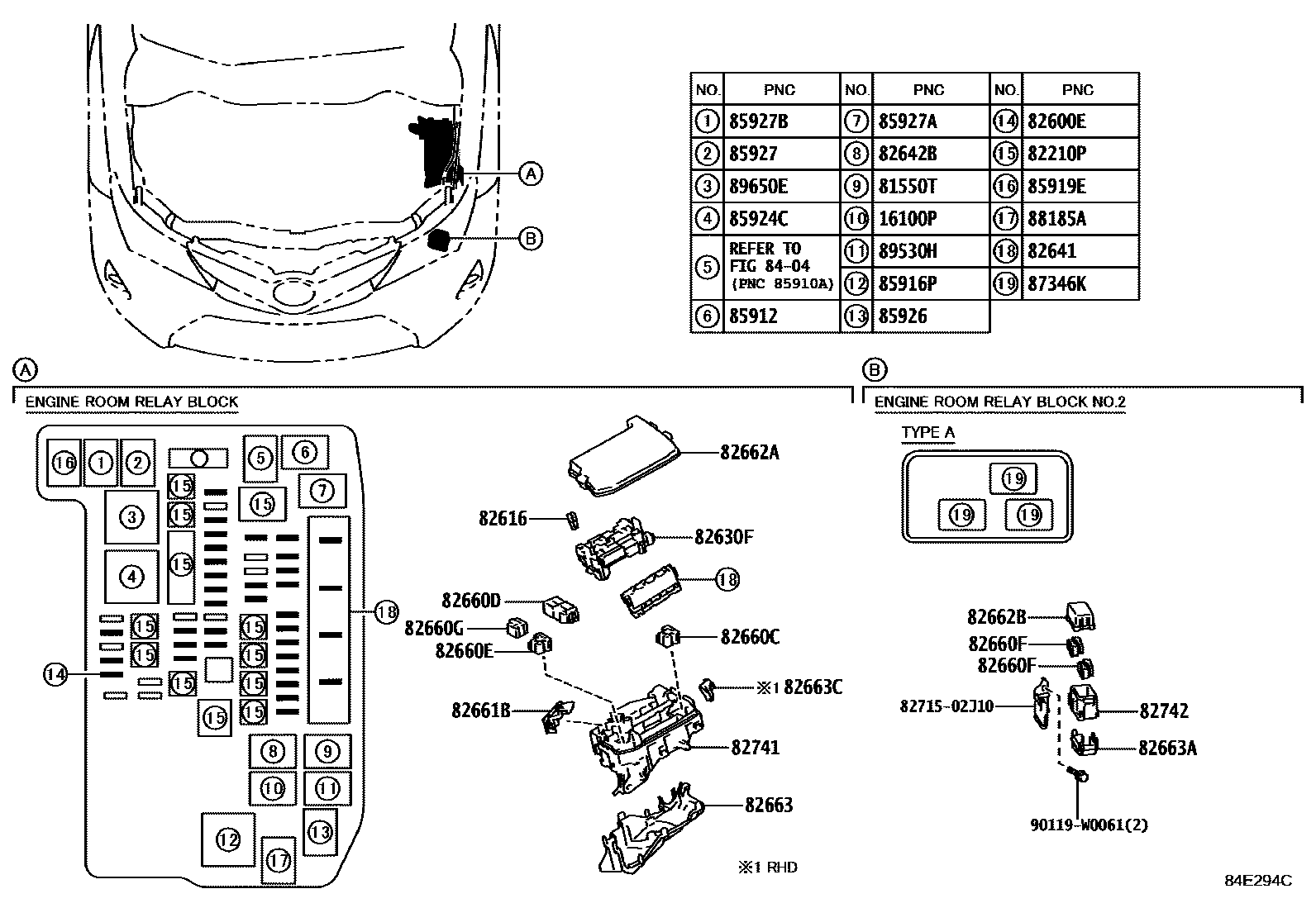

Diagram
40 parts
