Open RegionYearModelModelCode Details
Europe 2009 AVENSIS ZRT270L-AEFEPW
Catalog: TOYOTA202608 Engine: 1600CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Color Code: 209 Trim Code: FA20 Production: 200811-201111 Model Short: ZRT270L-AEFEPW Region: EU Native Region: EU

Toyota Avensis 2009 — Floor Pan & Lower Back Panel

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
57501-02020 BRACE, FRONT FLOOR, CENTER 1
Note:ADT27#,ZRT27# Production:2008-11 – 2009-10 Replacements:57501-12020 (fitment: unknown)
58307-05090 PANEL SUB-ASSY, BODY LOWER BACK 1
Note:ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
58251-02030 BRACE, FLOOR PANEL, FRONT RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58251-12040 (fitment: unknown)
58252-02010 BRACE, FLOOR PANEL, FRONT LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58252-12040 (fitment: unknown)
58247-05010 REINFORCEMENT, REAR SEAT CUSHION HINGE, RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58247-12090 (fitment: unknown)
58247-05010 REINFORCEMENT, REAR SEAT CUSHION HINGE, LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58247-12090 (fitment: unknown)
61063-05010 GUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
55129-02030 COVER, DASH PANEL HOLE 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:55129-12040 (fitment: unknown) Spec:RH
55139-02020 COVER, DASH PANEL HOLE 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:55139-12050 (fitment: unknown) Spec:LH
57043-02040 REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:57043-12020 (fitment: unknown)
57051-02010 MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:57051-12060 (fitment: unknown)
57052-02010 MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:57052-12010 (fitment: unknown)
57044-02040 REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:57044-12020 (fitment: unknown)
57053-02010 REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:57053-12010 (fitment: unknown)
57054-02010 REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:57054-12010 (fitment: unknown)
57531-02010 BRACKET, FRONT FLOOR CENTER BRACE, RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:57531-12010 (fitment: unknown)
57532-02010 BRACKET, FRONT FLOOR CENTER BRACE, LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:57532-12010 (fitment: unknown)
57805-02030 REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:57805-12150 (fitment: unknown)
58161-02040 REINFORCEMENT, BELT ANCHOR TO FLOOR PAN 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
58171-02040 REINFORCEMENT, PARKING BRAKE BASE 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58171-12120 (fitment: unknown)
58173-05010 BRACKET, WIRING HARNESS PROTECTOR 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58173-72010 (fitment: unknown)
58203-02020 BRACKET, EXHAUST PIPE MOUNTING 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58203-12070 (fitment: unknown)
58253-02020 BRACKET, PARKING BRAKE CABLE 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58253-12060 (fitment: unknown)
58111-05903 PAN, FRONT FLOOR, RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
58112-05901 PAN, FRONT FLOOR, LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
58136-02030 COVER, FRONT FLOOR SERVICE HOLE 2
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58136-12040 (fitment: unknown)
58113-05901 PANEL, FRONT FLOOR, CENTER 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
90115-W0010 BOLT, WELD(FOR FRONT FLOOR PANEL, CENTER) 4
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:90115-06166 (fitment: unknown)
57407-02071 MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:57407-12101 (fitment: unknown)
58015-02061 REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 1
Note:ADT27#,ZRT27# Production:2008-11 – 2010-04 Replacements:58015-12091 (fitment: unknown)
58016-02031 REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH 1
Note:ADT27#,ZRT27# Production:2008-11 – 2010-04 Replacements:58016-12061 (fitment: unknown)
58325-02080 COVER, REAR FLOOR SERVICE HOLE 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58325-12130 (fitment: unknown)
58211-02907 PAN, CENTER FLOOR 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
58305-02010 PANEL SUB-ASSY, REAR FLOOR SIDE, RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58305-12040 (fitment: unknown)
58306-02010 PANEL SUB-ASSY, REAR FLOOR SIDE, LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58306-12030 (fitment: unknown)
58311-05060 PAN, REAR FLOOR 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
58313-05030 PANEL, REAR FLOOR SIDE, RH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
58314-05050 PANEL, REAR FLOOR SIDE, LH 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
58336-02050 REINFORCEMENT, REAR FLOOR PAN 2
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58336-12090 (fitment: unknown)
58385-05020 GUSSET, LOWER BACK, UPPER LH 1
Note:ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
58384-05050 GUSSET, LOWER BACK, UPPER RH 1
Note:ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
58386-02010 BRACKET, REAR BUMPER COVER, NO.2 2
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58386-12020 (fitment: unknown)
82715-05440 BRACKET, WIRE HARNESS CLAMP 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
58309-05070 RETAINER, LUGGAGE COMPARTMENT DOOR LOOK STRIKER 1
Note:ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
51904-05010 BRACKET, EXHAUST PIPE MOUNTING, NO.4 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
58351-02020 BRACKET, SPARE WHEEL CARRIER 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:58351-12060 (fitment: unknown)
90105-W0058 standard —
Replacements:91553-L1020 (fitment: unknown)
90115-W0008 standard —
Replacements:90115-06219 (fitment: unknown)
90297-03007 standard —
90105-W0049 standard —
Replacements:90105-10301 (fitment: unknown)
90297-03004 standard —
90115-W0010 standard —
Replacements:90115-06166 (fitment: unknown)
90119-W0181 standard —
Replacements:90119-10945 (fitment: unknown)
94223-80800 standard —

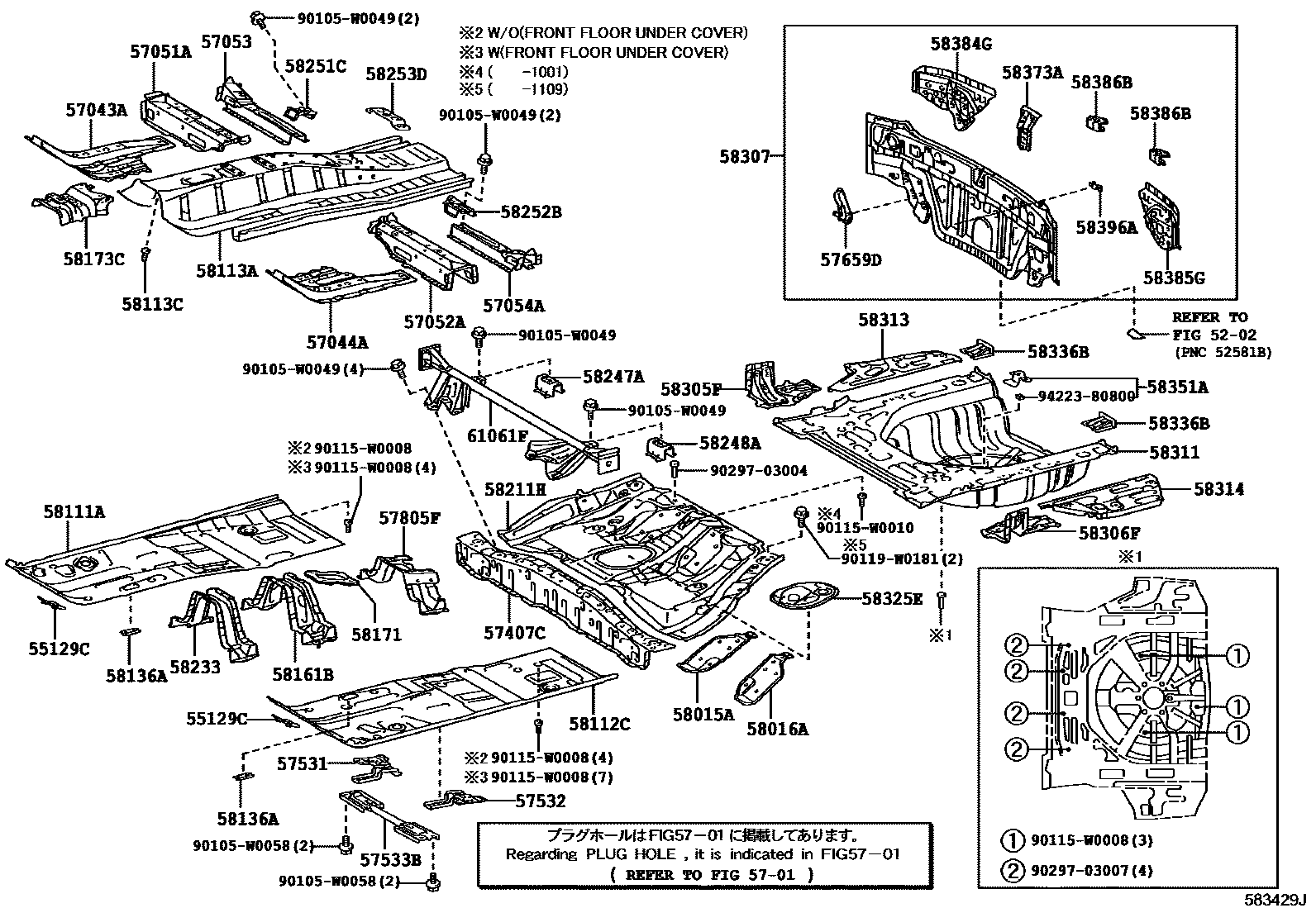

Diagram

54 parts
Toyota Avensis 2009 — Floor Pan & Lower Back Panel
