Toyota CARINA-E-UKP 1997 — Starter
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 28100-02040 | STARTER ASSY | 1 | |
Note:4AFE,7AFE..AT19#..UKP Production:1993-08 – 1997-10 Replacements:28100-02080 (fitment: unknown) Spec:12V 1.1KW Fitment:Matches · configuration | |||
| 28120-02020 | YOKE ASSY, STARTER | 1 | |
Note:4AFE,7AFE..AT19#..UKP Production:1993-12 – 1997-10 Fitment:Matches · configuration | |||
| 28140-02020 | HOLDER ASSY, STARTER BRUSH | 1 | |
Note:4AFE,7AFE..AT19#..UKP Production:1993-12 – 1997-10 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 28143 | — |
| 28130-02050 | FRAME ASSY, STARTER COMMUTATOR END | 1 | |
Note:4AFE,7AFE..AT19#..UKP Production:1993-12 – 1997-10 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 28160A | — |
| 28160-02020 | ARMATURE ASSY, STARTER | 1 | |
Note:4AFE,7AFE..AT19#..UKP Production:1993-12 – 1997-10 Replacements:28160-02080 (fitment: unknown) Fitment:Matches · configuration | |||
| 28150-02040 | SWITCH ASSY, MAGNET STARTER | 1 | |
Note:4AFE,7AFE..AT19#..UKP Production:1993-12 – 1997-08 Replacements:28150-02080 (fitment: unknown) Fitment:Matches · configuration | |||
| 28150-02080 | SWITCH ASSY, MAGNET STARTER | 1 | |
Note:4AFE,7AFE..AT19#..UKP Production:1997-08 – 1997-10 Fitment:Matches · configuration | |||
| 28110-02050 | HOUSING ASSY, STARTER DRIVE | 1 | |
Note:4AFE,7AFE..AT19#..UKP Production:1993-12 – 1997-10 Replacements:28110-02080 (fitment: unknown) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 28226A | — |
| — | Part does not apply to this vehicle configuration. | 28228 | — |
| — | Part does not apply to this vehicle configuration. | 28229 | — |
| — | Part does not apply to this vehicle configuration. | 28252 | — |
| — | Part does not apply to this vehicle configuration. | 28169 | — |
| — | Part does not apply to this vehicle configuration. | 28175A | — |
| — | Part does not apply to this vehicle configuration. | 28159B | — |
| — | Part does not apply to this vehicle configuration. | 28235 | — |
| 28011-02010 | CLUTCH SUB-ASSY, STARTER | 1 | |
Note:4AFE,7AFE..AT19#..UKP Production:1993-12 – 1997-10 Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 28226 | — |
| — | Part does not apply to this vehicle configuration. | 28165 | — |
| 90099-04562 | standard | — | |
Fitment:Matches · configuration | |||
| 90099-00902 | standard | — | |
Fitment:Matches · configuration | |||
| 90099-05129 | standard | — | |
Fitment:Matches · configuration | |||
| 90099-00907 | standard | — | |
Fitment:Matches · configuration | |||
| 90099-04474 | standard | — | |
Fitment:Matches · configuration | |||
| 90099-12009 | standard | — | |
Fitment:Matches · configuration | |||
| 94511-00800 | standard | — | |
Fitment:Matches · configuration | |||
| 94110-40800 | standard | — | |
Fitment:Matches · configuration | |||
| 90119-10466 | standard | — | |
Replacements:91612-61050 (fitment: unknown) Fitment:Matches · configuration | |||
| 90179-08146 | standard | — | |
Replacements:90179-08204 (fitment: unknown) Fitment:Matches · configuration | |||

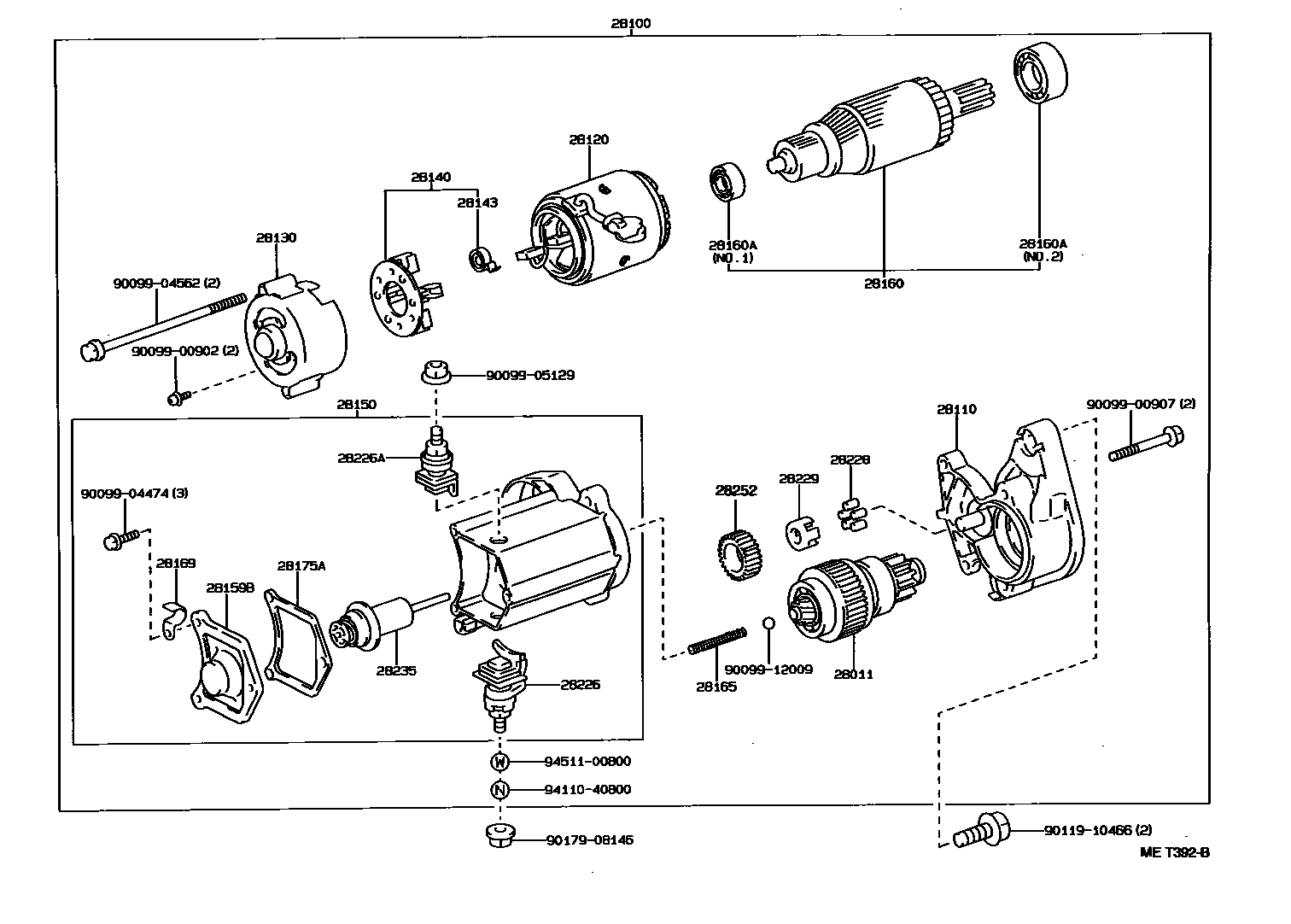

Diagram
19 parts
