Open RegionYearModelModelCode Details
Europe 1997 CARINA E UKP AT190L-BWMDKW
Catalog: TOYOTA202608 Engine: 1600CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION Body Description: WAGON Vehicle Grade: XL TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Color Code: 3L3 Production: 199505-199710 Model Short: AT190L-BWMDKW Region: EU Native Region: EU

Toyota CARINA-E-UKP 1997 — Heating & Air Conditioning - Compressor

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
88440-17010 PULLEY ASSY, IDLE 1
Note:AT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Fitment:Matches · configuration
88443-36010 COLLAR, IDLE PULLEY 1
Note:AT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Fitment:Matches · configuration
88446-12030 BOLT, IDLE PULLEY 1
Note:AT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Fitment:Matches · configuration
88431-12550 BRACKET, COMPRESSOR MOUNTING, NO.1 1
Note:AT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Fitment:Matches · configuration
88320-2B300 COMPRESSOR ASSY, COOLER 1
Note:AT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Replacements:88320-35H92 (fitment: unknown) Fitment:Matches · configuration
88410-2B100 CLUTCH ASSY, MAGNET 1
Note:AT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Fitment:Matches · configuration
88411-2B100 STATOR SUB-ASSY, MAGNET CLUTCH 1
Note:AT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Fitment:Matches · configuration
88412-2B040 ROTOR SUB-ASSY, MAGNET CLUTCH 1
Note:AT191..UKP;AT190..UKP..GL;AT190..UKP..RHD..XL;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Fitment:Matches · configuration
88403-30290 HUB SUB-ASSY, MAGNET CLUTCH 1
Note:AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Fitment:Matches · configuration
88335-14020 WASHER (FOR MAGNET CLUTCH) 1
Note:AT190..UKP..GL;AT190..UKP..RHD..XL;AT191,CT190,ST191..UKP;AT190..UKP..LHD..(LB,WG)..XL Production:1996-01 – 1997-10 Fitment:Matches · configuration
90179-10016 standard —
Replacements:90179-10132 (fitment: unknown) Fitment:Matches · configuration
91621-61040 standard —
Fitment:Matches · configuration
91622-61040 standard —
Fitment:Matches · configuration
91621-61025 standard —
Fitment:Matches · configuration
91622-61025 standard —
Replacements:91622-B1025 (fitment: unknown) Fitment:Matches · configuration
93319-15008 standard —
Fitment:Matches · configuration
88688-2D790 standard —
Fitment:Matches · configuration
90099-07125 standard —
Fitment:Matches · configuration
90099-04356 standard —
Fitment:Matches · configuration
90099-07114 standard —
Fitment:Matches · configuration
90099-04349 standard —
Fitment:Matches · configuration

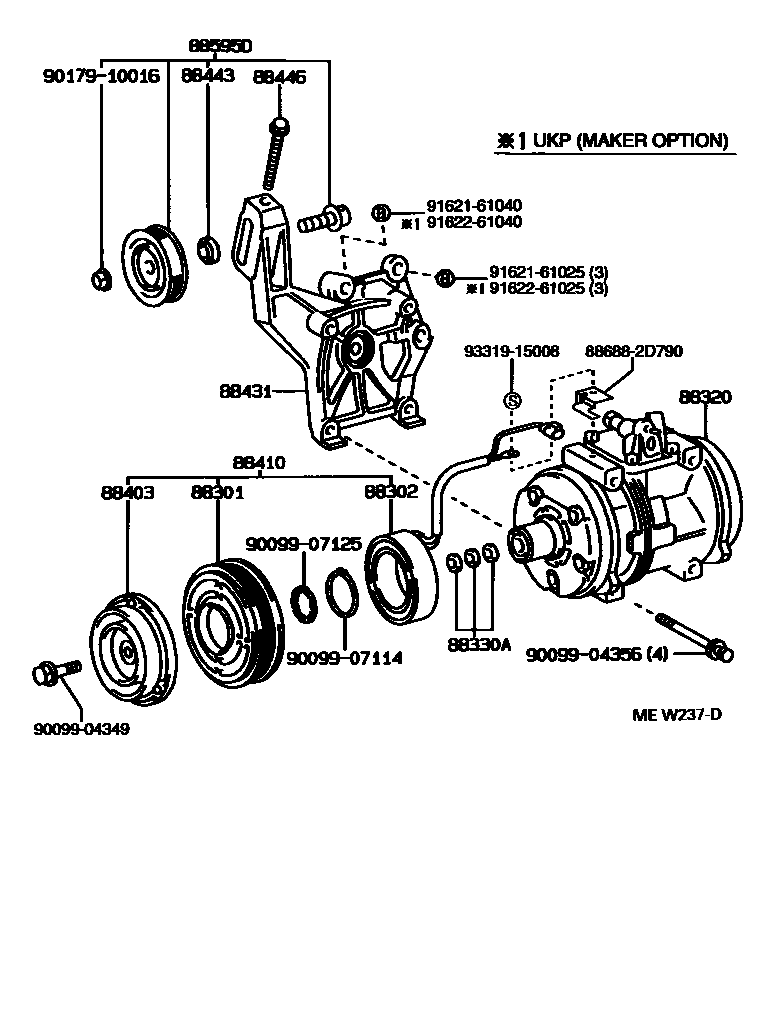

Diagram

21 parts
Toyota CARINA-E-UKP 1997 — Heating & Air Conditioning - Compressor
