Toyota Corolla-Altis 2015 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90987-T2002 | RELAY, HEADLAMP DIMMER | 1 | |
Note:ZRE172,173..VN Production:2013-12 – 2017-09 Replacements:90987-02025 (fitment: unknown) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 82642B | — |
| 90987-04004 | RELAY, DEFOGGER | 1 | |
Note:ZRE171..16J..HTWCF;ZRE172..6F..(G,GL);ZRE172..6F..(ARL,IDN);ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,IND,MA,TH,VN);NDE170,ZRE171,173..GEN,IND,MA,PHL,SGP,VN Production:2013-10 – 2016-10 Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration | |||
| 90080-87009 | RELAY, DEFOGGER | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Replacements:90987-04004 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 85916C | — |
| 90987-T2002 | RELAY, HEADLAMP | 1 | |
Note:ZRE172,173..VN Production:2013-12 – 2017-09 Replacements:90987-02025 (fitment: unknown) Fitment:Matches · configuration | |||
| 90987-02027 | RELAY, IGNITION, NO.2 | 1 | |
Note:2ZRFE,3ZRFE..ZRE172,173..VN Production:2013-10 – 2017-09 Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration | |||
| 90987-T2001 | RELAY, IGNITION, NO.2 | 1 | |
Note:2ZRFE,3ZRFE..ZRE172,173..VN Production:2013-10 – 2017-09 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration | |||
| 90987-02027 | RELAY, COOLING FAN | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration | |||
| 90987-T2001 | RELAY, COOLING FAN | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration | |||
| 90982-08274 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:120A,TERM.:MALE,WHT Fitment:Matches · configuration | |||
| 90982-08294 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:40A,FEMALE,GRN,58V Fitment:Matches · configuration | |||
| 90982-08295 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:30A,FEMALE,PNK,58V Fitment:Matches · configuration | |||
| 90982-08296 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:50A,FEMALE,RED,58V Fitment:Matches · configuration | |||
| 90982-08305 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:80A,TERM.:FEMALE,BLK Fitment:Matches · configuration | |||
| 90982-09020 | ENGINE ROOM FUSE | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:7.5A,MINI FUSE,BROWN Fitment:Matches · configuration | |||
| 90982-09021 | ENGINE ROOM FUSE | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:10A,MINI FUSE,RED Fitment:Matches · configuration | |||
| 90982-09022 | ENGINE ROOM FUSE | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:15A,MINI FUSE,BLUE Fitment:Matches · configuration | |||
| 90982-09023 | ENGINE ROOM FUSE | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:20A,MINI FUSE,YELLOW Fitment:Matches · configuration | |||
| 90982-09024 | ENGINE ROOM FUSE | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:25A,MINI FUSE Fitment:Matches · configuration | |||
| 90982-09025 | ENGINE ROOM FUSE | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:30A,MINI FUSE,GRN Fitment:Matches · configuration | |||
| 90987-T2001 | RELAY ASSY, HORN | 1 | |
Note:ZRE172,173..VN Production:2013-12 – 2017-09 Replacements:90987-02027 (fitment: unknown) Fitment:Matches · configuration | |||
| 28300-0L010 | RELAY ASSY, STARTER | 1 | |
Note:1ZRFE..ZRE171..6F..XLI..GCC;1ZRFE..ZRE171..GEN,PHL,PKN,SGP;1NDTV,2NZFE,1ZRF,1ZRFBE,2ZRFE,3ZRFE..NDE170,NZE170,ZRE17#..ARL,IDN,IND,MA,PHL,PKN,TAIW,TH,VN Production:2013-10 – 2016-04 Replacements:28300-0L011 (fitment: unknown) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 85927B | — |
| — | Part does not apply to this vehicle configuration. | 85927A | — |
| 82662-02390 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Fitment:Matches · configuration | |||
| 82663-12140 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:ZRE171,172..(CVT,MTM)..(16E,16G,16J,16V,18G,XLI)..HTWC..(GEN,PHL,TH,VN) Production:2013-10 – 2016-01 Fitment:Matches · configuration | |||
| 82741-12120 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:ZRE171,172..(CVT,MTM)..(16E,16G,16J,16V,18G,XLI)..HTWC..(GEN,PHL,TH,VN) Production:2013-10 – 2016-01 Fitment:Matches · configuration | |||
| 82661-12330 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:ZRE171,172..(CVT,MTM)..(16E,16G,16J,16V,18G,XLI)..HTWC..(GEN,PHL,TH,VN) Production:2013-10 – 2016-01 Fitment:Matches · configuration | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:ZRE171,172..(CVT,MTM)..(16E,16G,16J,16V,18G,XLI)..HTWC..(GEN,PHL,TH,VN) Production:2013-10 – 2016-01 Fitment:Matches · configuration | |||
| 90119-T0260 | standard | — | |
Replacements:91671-80616 (fitment: unknown) Fitment:Matches · configuration | |||
| 91671-80616 | standard | — | |
Fitment:Matches · configuration | |||

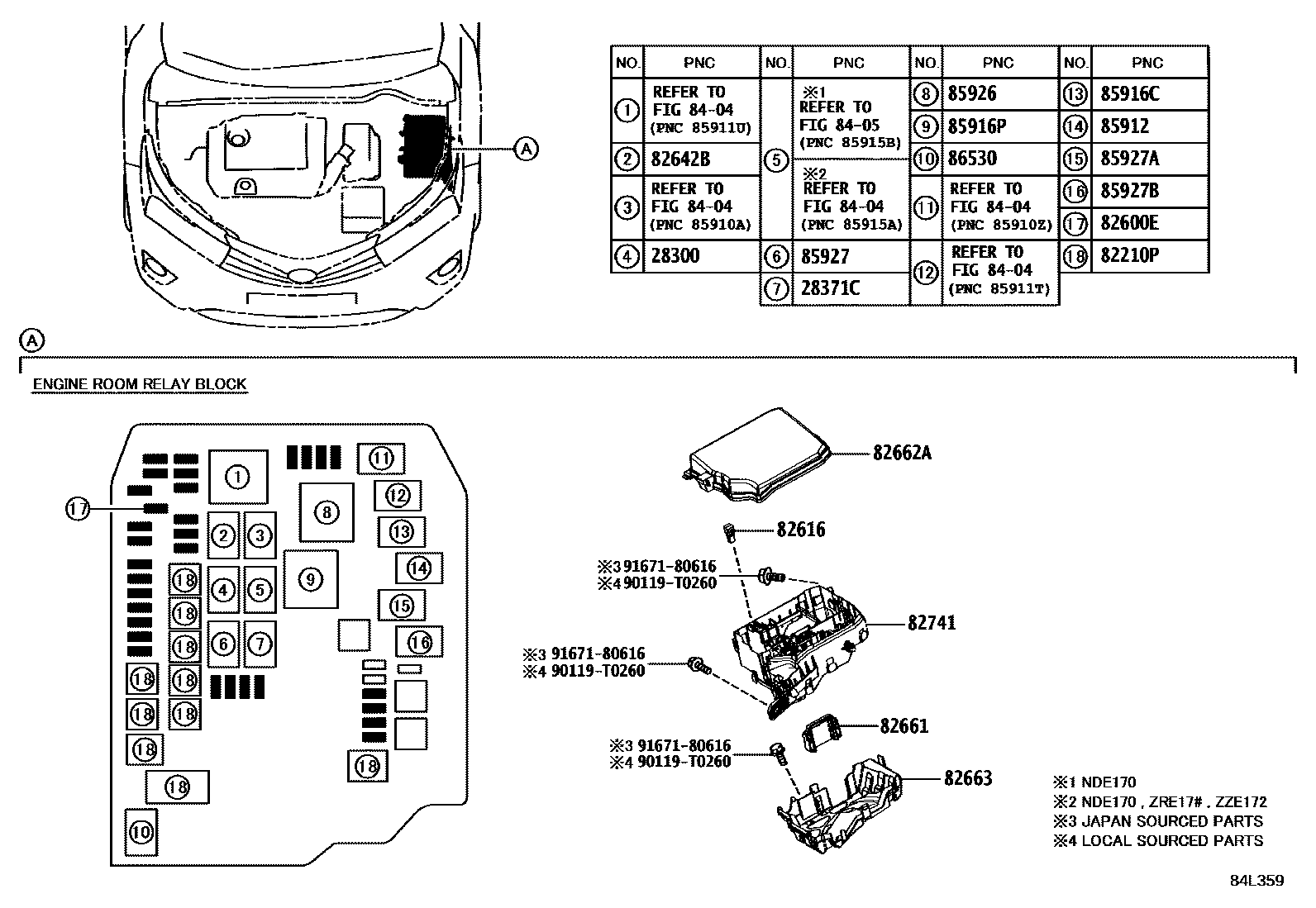

Diagram
28 parts
