Open RegionYearModelModelCode Details
General 2015 COROLLA ALTIS ZRE172L-GEXGKH
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Vehicle Grade: 1.8G TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: VIETNAM Doors Description: 4-DOOR Color Code: 218 Production: 201409-201709 Model Short: ZRE172L-GEXGKH Region: OTHER Native Region: GR

Toyota Corolla-Altis 2015 — Headlamp

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
81130-02F40 UNIT ASSY, HEADLAMP, RH 1
Note:ZRE171,172..LHD..(GEN,PHL,VN) Production:2013-12 – 2016-09 Replacements:81130-02F41 (fitment: unknown) Fitment:Matches · configuration
81170-02F40 UNIT ASSY, HEADLAMP, LH 1
Note:ZRE171,172..LHD..(GEN,PHL,VN) Production:2013-12 – 2016-09 Replacements:81170-02F41 (fitment: unknown) Fitment:Matches · configuration
81125-02F20 CORD, HEADLAMP, RH 1
Note:ZRE172..VN Production:2013-12 – 2017-09 Fitment:Matches · configuration
81125-02F20 CORD, HEADLAMP, LH 1
Note:ZRE171,172..LHD..(GEN,PHL,VN) Production:2013-12 – 2016-09 Fitment:Matches · configuration
81110-02F40 HEADLAMP ASSY, RH 1
Note:ZRE171,172..LHD..(GEN,PHL,VN) Production:2013-12 – 2016-08 Replacements:81110-02F41 (fitment: unknown) Fitment:Matches · configuration
81150-02F40 HEADLAMP ASSY, LH 1
Note:ZRE171,172..LHD..(GEN,PHL,VN) Production:2013-12 – 2016-08 Replacements:81150-02F41 (fitment: unknown) Fitment:Matches · configuration
90981-13046 BULB(FOR HEADLAMP, NO.1) 2
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:12V65W(SAE),60W(ECE) Fitment:Matches · configuration
90981-13075 BULB(FOR HEADLAMP, NO.2) 2
Note:ZRE172..VN Production:2013-10 – 2017-09 Spec:12V 55W,HALOGEN Fitment:Matches · configuration
90981-15021 BULB (FOR FRONT TURN SIGNAL LAMP) 2
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Spec:12V 21W,AMBER Fitment:Matches · configuration
90981-11069 BULB(FOR CLEARANCE LAMP) 2
Note:ZRE172..VN Production:2013-10 – 2017-09 Spec:12V 5W Fitment:Matches · configuration
53181-02070 COVER, HEADLAMP, RH 1
Note:ZRE172,173..VN Production:2013-12 – 2017-09 Fitment:Matches · configuration
53182-02070 COVER, HEADLAMP, LH 1
Note:ZRE172,173..VN Production:2013-12 – 2017-09 Fitment:Matches · configuration
90168-40059 SCREW, HEADLAMP 8
Note:ZRE172,173..VN Production:2013-10 – 2017-09 Fitment:Matches · configuration
90159-50388 standard —
Fitment:Matches · configuration
90109-06382 standard —
Fitment:Matches · configuration
90189-05142 standard —
Fitment:Matches · configuration
90189-T0007 standard —
Replacements:90189-05142 (fitment: unknown) Fitment:Matches · configuration

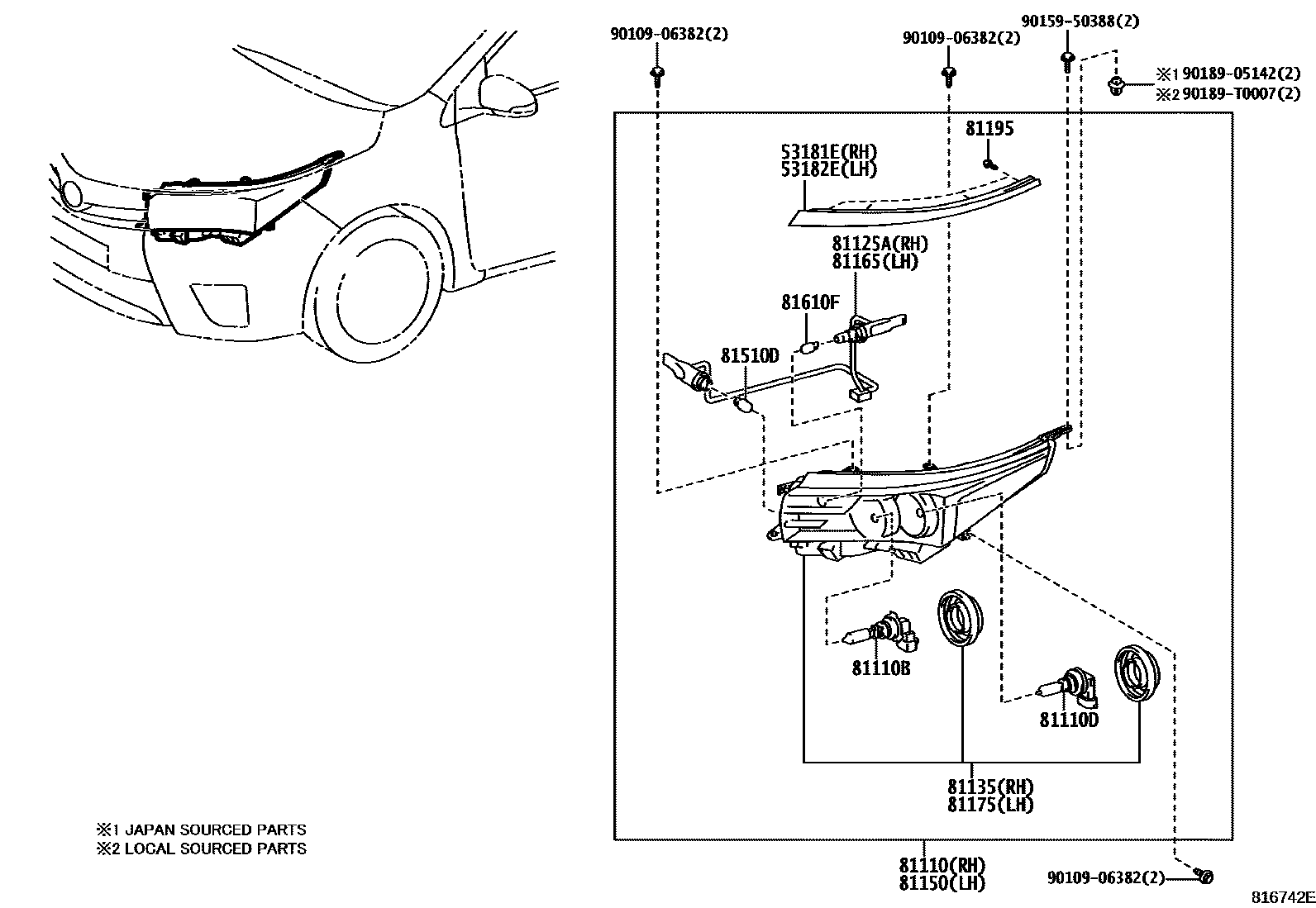

Diagram

17 parts
Toyota Corolla-Altis 2015 — Headlamp
