Toyota Corolla-Altis 2013 — Starter
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 28150-0T070 | SWITCH ASSY, MAGNET STARTER | 1 | |
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);1ZRFE,2ZRFE,3ZZFE..ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,LIMO)..(IDN,MA,PHL,TH)..HTWC Production:2010-08 – … Replacements:28150-22100 (fitment: unknown) Fitment:Matches · configuration | |||
| 28100-0T100 | STARTER ASSY | 1 | |
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH)..HTWC Production:2010-08 – … Spec:12V 0.8KW Fitment:Matches · configuration | |||
| 28160-0T100 | ARMATURE ASSY, STARTER | 1 | |
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH)..HTWC Production:2010-08 – … Replacements:28160-70021 (fitment: unknown) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 28011 | — |
| 28120-0D040 | YOKE ASSY, STARTER | 1 | |
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZZFE..ZRE141,142,ZZE141..(16E,16G,16V,18E,18J,LIMO)..(IDN,MA,PHL,TH)..HTWC Production:2010-08 – … Replacements:28120-47120 (fitment: unknown) Fitment:Matches · configuration | |||
| 90068-14029 | RING, O(FOR STARTER YOKE) | 2 | |
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH)..HTWC;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN) Production:2010-08 – … Replacements:90099-14092 (fitment: unknown) Fitment:Matches · configuration | |||
| 28142-70020 | STARTER KIT | 2 | |
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;2NZFE,1ZRFE,3ZRFE..NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20G,20V,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration | |||
| 28140-0T070 | HOLDER ASSY, STARTER BRUSH | 1 | |
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J)..(IDN,MA,PHL,TH)..HTWC;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN) Production:2010-08 – … Replacements:28140-70020 (fitment: unknown) Fitment:Matches · configuration | |||
| — | Part does not apply to this vehicle configuration. | 28163 | — |
| 28021-0T070 | CLUTCH SUB-ASSY, STARTER CENTER BEARING | 1 | |
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC Production:2011-05 – … Replacements:28021-70020 (fitment: unknown) Fitment:Matches · configuration | |||
| 90119-T0309 | standard | — | |
Replacements:91612-61065 (fitment: unknown) Fitment:Matches · configuration | |||
| 91612-61065 | standard | — | |
Fitment:Matches · configuration | |||
| 90182-T0011 | standard | — | |
Replacements:90179-08204 (fitment: unknown) Fitment:Matches · configuration | |||
| 90179-08204 | standard | — | |
Fitment:Matches · configuration | |||
| 90099-07124 | standard | — | |
Fitment:Matches · configuration | |||
| 90096-90030 | standard | — | |
Fitment:Matches · configuration | |||

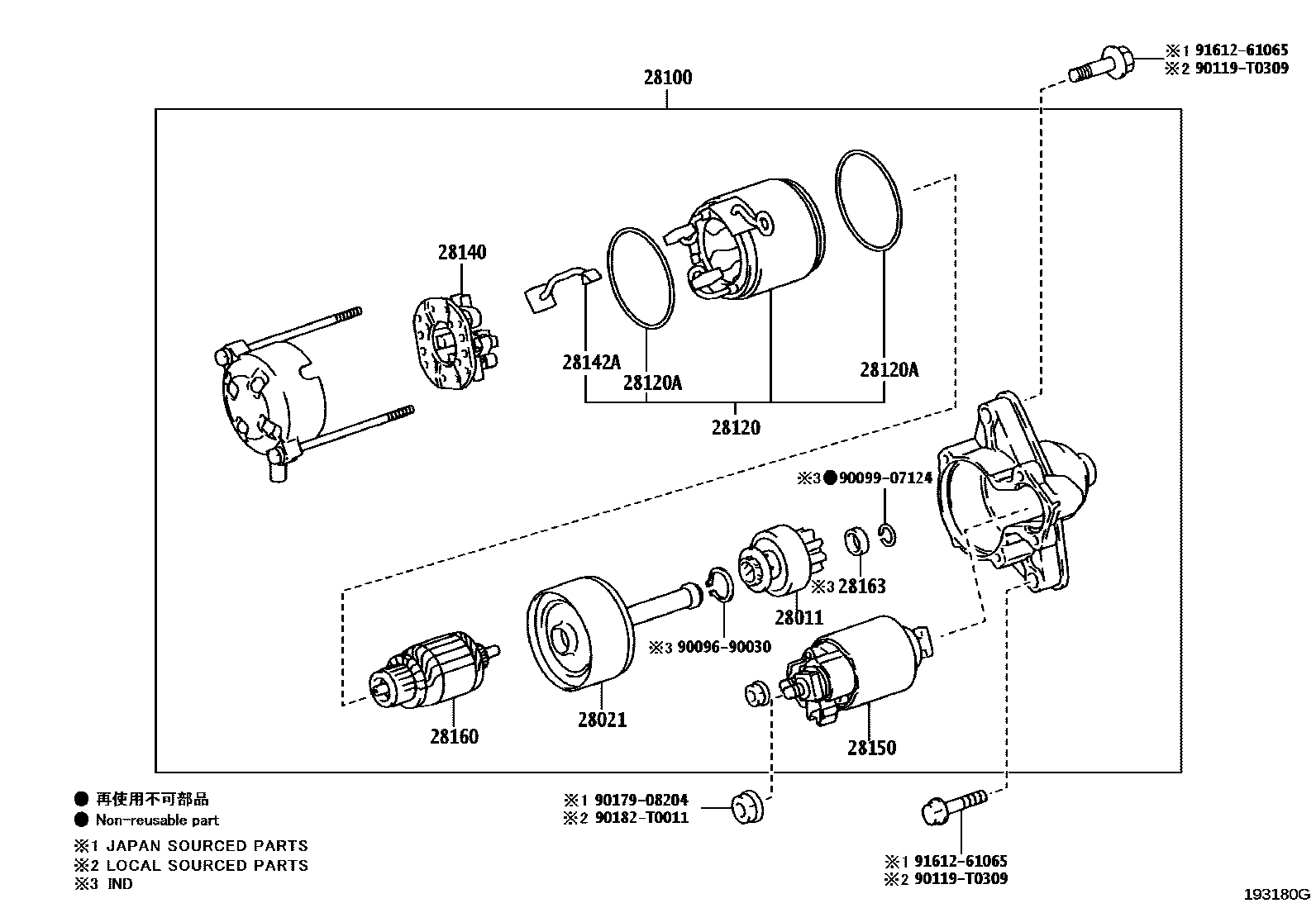

Diagram
14 parts
