General 2013 COROLLA ALTIS ZRE142L-GEXGKH
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: 1.8G TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: VIETNAM Color Code: 4R0 Production: 201010-201407 Model Short: ZRE142L-GEXGKH Region: OTHER Native Region: GR

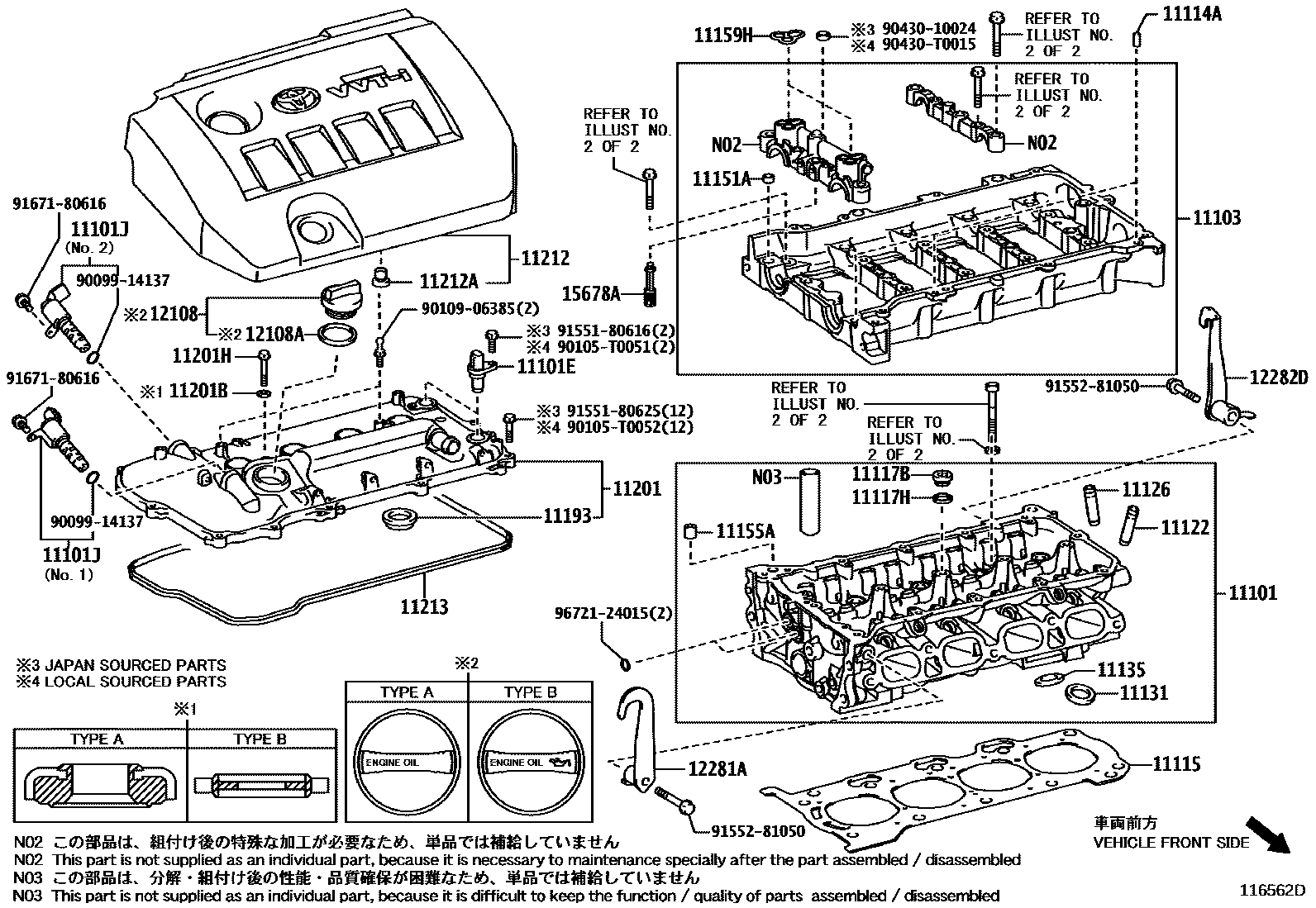

Toyota Corolla-Altis 2013 — Cylinder Head

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
15330-37010 VALVE ASSY, CAMSHAFT TIMING OIL CONTROL 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:NO.1 Fitment:Matches · configuration
15330-37020 VALVE ASSY, CAMSHAFT TIMING OIL CONTROL 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:NO.2 Fitment:Matches · configuration
11101-39686 HEAD SUB-ASSY, CYLINDER 1
Note:2ZRFE,3ZRFE..ZRE142,143..(6F,CVFC)..VN Production:2010-07 – 2014-01 Fitment:Matches · configuration
90919-05060 SENSOR, CAM POSITION 2
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
11103-37021 HOUSING SUB-ASSY, CAMSHAFT 1
Note:2ZRFE,3ZRFE..ZRE142,143..(6F,CVFC)..VN Production:2010-07 – 2014-01 Fitment:Matches · configuration
90341-20002 PLUG, W/HEAD TAPER SCREW, NO.2 3
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
90430-20004 GASKET(FOR WATER HOLE) 3
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
11122-31050 BUSH, INTAKE VALVE GUIDE 8
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Replacements:11122-31090 (fitment: unknown) Spec:STD Fitment:Matches · configuration
11123-31050 BUSH, INTAKE VALVE GUIDE 8
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Replacements:11123-31090 (fitment: unknown) Spec:O/S 0.05 Fitment:Matches · configuration
11126-31030 BUSH, EXHAUST VALVE GUIDE 8
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Replacements:11126-31040 (fitment: unknown) Spec:STD Fitment:Matches · configuration
11127-31030 BUSH, EXHAUST VALVE GUIDE 8
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Replacements:11127-31040 (fitment: unknown) Spec:O/S 0.05 Fitment:Matches · configuration
11131-37020 SEAT, INTAKE VALVE 8
Note:2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Replacements:11131-37040 (fitment: unknown) Spec:STD Fitment:Matches · configuration
11132-37040 SEAT, INTAKE VALVE 8
Note:1ZRFE,2ZRFE,3ZRFE..ZRE14#..HTWC Production:2012-11 – … Spec:O/S 0.03 Fitment:Matches · configuration
11135-37020 SEAT, EXHAUST VALVE 8
Note:2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:STD Fitment:Matches · configuration
11136-37040 SEAT, EXHAUST VALVE 8
Note:1ZRFE,2ZRFE,3ZRFE..ZRE14#..HTWC Production:2012-11 – … Spec:O/S 0.03 Fitment:Matches · configuration
90253-13005 PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) 10
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:L=12.5,OD=8 Fitment:Matches · configuration
90253-12002 PIN, RING W/HEAD 2
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
11159-37010 GASKET, CAMSHAFT BEARING CAP OIL HOLE 2
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
11159-0T010 GASKET, CAMSHAFT BEARING CAP OIL HOLE 2
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V,G,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH,VN)..HTWC Production:2012-03 – … Replacements:11159-37010 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
11193-37020 GASKET, SPARK PLUG TUBE 4
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
11193-0T040 GASKET, SPARK PLUG TUBE 4
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V,G,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH,VN)..HTWC Production:2012-03 – … Replacements:11193-37020 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
11201-37022 COVER SUB-ASSY, CYLINDER HEAD 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
11201-0T070 COVER SUB-ASSY, CYLINDER HEAD 1
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V,G,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH,VN)..HTWC Production:2012-03 – … Replacements:11201-37022 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
16258-37010 WASHER, SEAL(FOR CYLINDER HEAD COVER) 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:TYPE B:REFER ILLUST. Fitment:Matches · configuration
90210-06013 WASHER, SEAL(FOR CYLINDER HEAD COVER) 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:TYPE A:REFER ILLUST. Fitment:Matches · configuration
91551-80670 BOLT(FOR CYLINDER HEAD COVER) 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
11213-37020 GASKET, CYLINDER HEAD COVER 1
Note:3ZRFE..ZRE143..CVFC;1ZRFE,2ZRFE..ZRE141,142 Production:2010-07 – 2014-07 Replacements:11213-37021 (fitment: unknown) Fitment:Matches · configuration
12180-0H020 CAP SUB-ASSY, OIL FILLER 1
Note:2ZRFE..ZRE142..HTWCF;3ZZFE..ZZE141..(16G,LIMO)..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – … Replacements:12180-38010 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
12180-38010 CAP SUB-ASSY, OIL FILLER 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
90080-43027 GASKET(FOR OIL FILLER CAP) 1
Note:2ZRFE..ZRE142..HTWCF;3ZZFE..ZZE141..(16G,LIMO)..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – … Replacements:90430-37140 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
90430-35001 GASKET(FOR OIL FILLER CAP) 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
12282-37011 HANGER, ENGINE, NO.2 1
Note:2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..16E,16G,16V,20G,20V,D,G,N;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E,18J)..(IDN,TH)..HTWC Production:2012-06 – … Spec:W/O(PAINTED) Fitment:Matches · configuration
11115-37060 GASKET, CYLINDER HEAD 1
Note:1ZRFE,2ZRFE,3ZRFE..ZRE14# Production:2011-10 – 2014-06 Replacements:11115-37061 (fitment: unknown) Fitment:Matches · configuration
12281-37021 HANGER, ENGINE, NO.1 1
Note:2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..16E,16G,16V,20G,20V,D,G,N;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E,18J)..(IDN,TH)..HTWC Production:2012-06 – … Spec:W/O(PAINTED) Fitment:Matches · configuration
15678-37010 FILTER, OIL CONTROL VALVE 1
Note:2ZRFE,3ZRFE..ZRE142,143..(6F,CVFC)..VN Production:2010-07 – 2014-02 Fitment:Matches · configuration
90250-06001 PIN, STRAIGHT 2
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:L=14,OD=6 Fitment:Matches · configuration
90480-16049 CUSHION, CYLINDER HEAD COVER 4
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – 2014-02 Fitment:Matches · configuration
11212-37010 COVER, CYLINDER HEAD, NO.2 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,D,N)..(MA,PHL,PKN,TH)..HTWC Production:2010-07 – … Fitment:Matches · configuration
91551-80625 standard —
Fitment:Matches · configuration
90105-T0052 standard —
Replacements:91551-80625 (fitment: unknown) Fitment:Matches · configuration
91551-80616 standard —
Fitment:Matches · configuration
90105-T0051 standard —
Replacements:91551-80616 (fitment: unknown) Fitment:Matches · configuration
90109-06385 standard —
Fitment:Matches · configuration
90099-14137 standard —
Fitment:Matches · configuration
90430-10024 standard —
Fitment:Matches · configuration
91552-81050 standard —
Fitment:Matches · configuration
91671-80616 standard —
Fitment:Matches · configuration
96721-24015 standard —
Fitment:Matches · configuration
90430-T0015 standard —
Replacements:90430-10024 (fitment: unknown) Fitment:Matches · configuration
