General 2013 COROLLA ALTIS ZRE142L-GEXGKH
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: 1.8G TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: VIETNAM Color Code: 4R0 Production: 201010-201407 Model Short: ZRE142L-GEXGKH Region: OTHER Native Region: GR

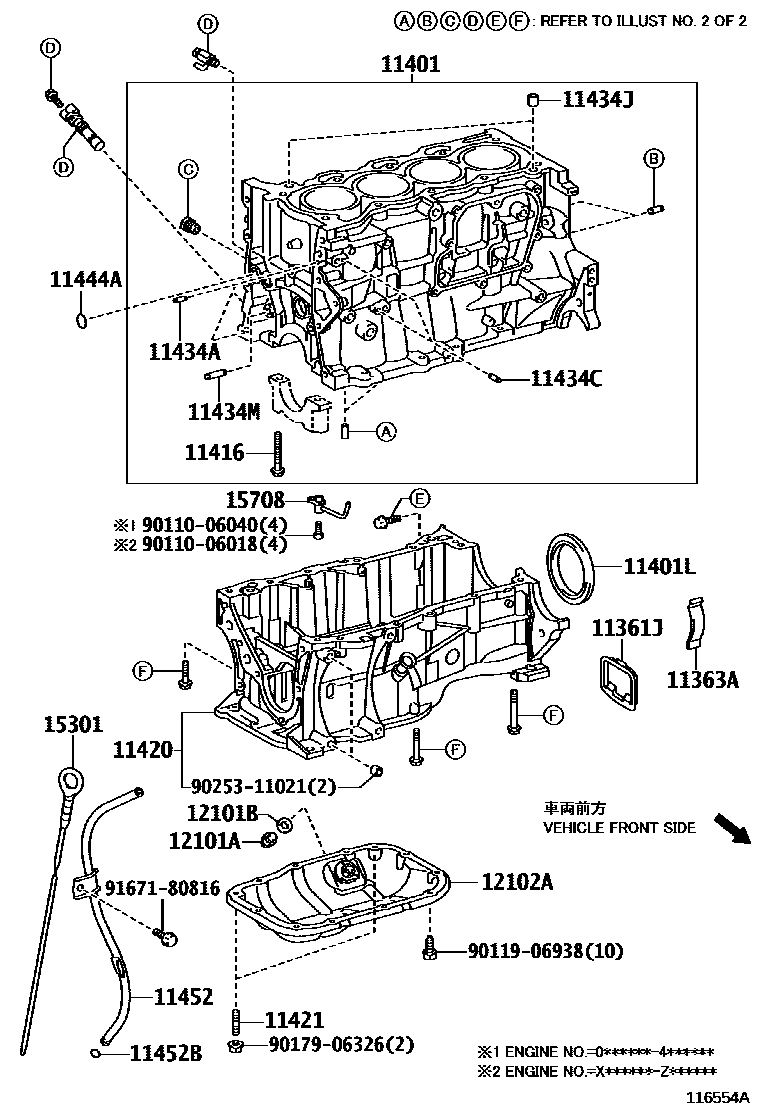

Toyota Corolla-Altis 2013 — Cylinder Block

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
11361-21011 COVER, FLYWHEEL HOUSING UNDER 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
11363-21010 COVER, FLYWHEEL HOUSING SIDE 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
11410-39057 BLOCK SUB-ASSY, CYLINDER 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);2ZRFE..ZRE142..(18E,18J,GLI,XLI)..(GCC,IDN,TAIW,TH)..HTWC Production:2010-09 – 2014-01 Replacements:11410-39245 (fitment: unknown) Fitment:Matches · configuration
90311-76002 SEAL, ENGINE REAR OIL 1
Note:2ZRFE..ZRE142..VN Production:2010-07 – 2014-07 Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
90311-T0049 SEAL, ENGINE REAR OIL 1
Note:2ZRFE..ZRE142..VN Production:2012-03 – 2014-07 Replacements:90311-78002 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
90910-02163 BOLT(FOR CRANKSHAFT BEARING CAP SET) 10
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
11420-37010 CRANKCASE ASSY, STIFFENING 1
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
11420-0T050 CRANKCASE ASSY, STIFFENING 1
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2012-03 – … Replacements:11420-37010 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
90126-06028 BOLT, STUD(FOR OIL PAN) 2
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
90250-04097 PIN, STRAIGHT(FOR TIMING GEAR COVER SET) 2
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:L=12,OD=4.0 Fitment:Matches · configuration
90250-04097 PIN, STRAIGHT (FOR CYLINDER HEAD SET) 2
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:L=12,OD=4.0 Fitment:Matches · configuration
90253-13001 PIN, RING (FOR CYLINDER HEAD SET) 2
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
90250-10030 PIN, STRAIGHT(FOR CHAIN TENSIONER) 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
90250-T0019 PIN, STRAIGHT(FOR CHAIN TENSIONER) 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – … Replacements:90250-10030 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
96723-24020 RING, O 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
90301-T0041 RING, O 1
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V,G,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH,VN)..HTWC Production:2012-03 – … Replacements:96722-24020 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
11452-37011 GUIDE, OIL LEVEL GAGE 1
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC Production:2011-01 – … Fitment:Matches · configuration
90301-T0025 RING, O(FOR OIL LEVEL GAGE GUIDE) 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – … Replacements:96721-19010 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
96721-19010 RING, O(FOR OIL LEVEL GAGE GUIDE) 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
90341-12012 PLUG(FOR OIL PAN DRAIN) 1
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G);2ZRFE,3ZZFE..ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC Production:2010-07 – … Fitment:Matches · configuration
90080-43030 GASKET(FOR OIL PAN DRAIN PLUG) 1
Note:1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN Production:2013-01 – … Replacements:90430-12031 (fitment: unknown) Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
90430-12031 GASKET(FOR OIL PAN DRAIN PLUG) 1
Note:1ZRFE,2ZRFE,3ZRFE..ZRE14#..GCC,IDN,MA,PHL,TAIW,TH,VN Production:2013-01 – … Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
12102-37010 PAN SUB-ASSY, OIL, NO.2 1
Note:2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;1ZRFE..ZRE141..16E,16G,16V,D,N,XLI;2ZRFE..ZRE142..GCC,IDN,IND,MA,TAIW,VN;1ZRFE,3ZRFE..ZRE141,143..(6F,CVFC)..(16J,20G,20V,G) Production:2010-07 – … Fitment:Matches · configuration
15301-37030 GAGE SUB-ASSY, OIL LEVEL 1
Note:2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE..ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2012-08 – 2013-06 Replacements:15301-37010 (fitment: unknown) Spec:*264 Spec Note:*264(ENGINE NO.=X******-Z******) Fitment:Matches · configuration
15708-37012 NOZZLE SUB-ASSY, OIL, NO.1 4
Note:1ZRFE,2ZRFE,3ZRFE..ZRE14# Production:2012-11 – … Fitment:Matches · configuration
90110-06040 standard —
Fitment:Matches · configuration
90119-06938 standard —
Fitment:Matches · configuration
90179-06326 standard —
Fitment:Matches · configuration
90253-11021 standard —
Fitment:Matches · configuration
91671-80816 standard —
Fitment:Matches · configuration
90110-06018 standard —
Fitment:Matches · configuration
