General 2013 COROLLA ALTIS ZRE142L-GEXGKH
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: 1.8G TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: VIETNAM Color Code: 4R0 Production: 201010-201407 Model Short: ZRE142L-GEXGKH Region: OTHER Native Region: GR

Toyota Corolla-Altis 2013 — Floor Pan & Lower Back Panel

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
57051-02070 MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 1
Note:CE140,NDE140,NZE140,ZRE14#..IND,PKN,VN Production:2010-10 – … Fitment:Matches · configuration
57052-02060 MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 1
Note:CE140,NDE140,NZE140,ZRE14#..IND,PKN,VN Production:2010-10 – … Fitment:Matches · configuration
57505-02030 REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER 2
Note:ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI)..(IND,MA,PHL,PKN,TH) Production:2010-08 – … Fitment:Matches · configuration
57661-02130 MEMBER, REAR FLOOR CROSS, FRONT 1
Note:ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI)..(IND,MA,PHL,PKN,TH) Production:2010-08 – … Fitment:Matches · configuration
58015-02100 REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 1
Note:ZRE142..18G..HTWCF;ZRE142,143..(6F,CVFC)..(18J,20G,20V)..(IDN,MA,PHL,TH,VN);NDE140,ZRE141,142..(16G,16V,18G,18V,E,G)..(IDN,IND,MA,PHL,VN) Production:2010-08 – … Fitment:Matches · configuration
58016-02100 REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH 1
Note:ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI)..(IND,MA,PHL,PKN,TH) Production:2010-08 – … Fitment:Matches · configuration
58111-02922 PAN, FRONT FLOOR, RH 1
Note:ZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141..(16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI)..(IND,MA,PHL,PKN,TH) Production:2010-08 – … Fitment:Matches · configuration
58013-02150 SUPPORT, SHIFT & SELECT LEVER 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58136-02050 COVER, FRONT FLOOR SERVICE HOLE 2
Note:CE140,NDE140,NZE140,ZRE14#..IND,PKN,VN Production:2010-10 – 2014-07 Spec:(L) Spec Note:(Local made) Fitment:Matches · configuration
58136-33010 COVER, FRONT FLOOR SERVICE HOLE 2
Note:CE140,NDE140,NZE140,ZRE14#..IND,PKN,VN Production:2010-10 – 2014-07 Spec:(J) Spec Note:(Japan made) Fitment:Matches · configuration
57805-02070 REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58176-02040 REINFORCEMENT, PARKING BRAKE BASE, NO.1 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58211-02290 PAN, CENTER FLOOR 1
Note:ZRE142..18G..HTWCF;ZRE142,143..(6F,CVFC)..(18J,20G,20V)..(IDN,MA,PHL,TH,VN);NDE140,ZRE141,142..(16G,16V,18G,18V,E,G)..(IDN,IND,MA,PHL,VN) Production:2010-08 – … Fitment:Matches · configuration
58311-12270 PAN, REAR FLOOR 1
Note:ZRE142..HTWCF;ZRE143..CVFC..(IDN,MA,PHL,TAIW,VN);ZRE14#..(6F,CVFC)..(16J,18E,20G)..TH..HTWC;ZRE142..(18E,18G,18J,E,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141..16E,16G,16V,20D,20DSA,D,E,GLI,N,XLI Production:2010-07 – … Fitment:Matches · configuration
58369-12020 BRACKET, REAR FLOOR BRACE 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58313-12300 PANEL, REAR FLOOR SIDE, RH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
62939-02050 SILENCER, QUARTER VENT 2
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) Production:2010-07 – … Replacements:62939-12030 (fitment: unknown) Fitment:Matches · configuration
58314-12300 PANEL, REAR FLOOR SIDE, LH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58325-02130 COVER, REAR FLOOR SERVICE HOLE 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Replacements:58325-12150 (fitment: unknown) Fitment:Matches · configuration
58341-12020 BRACKET, REAR ABSORBER MOUNTING, NO.1 RH 1
Note:ZRE143..CVFC..(TAIW,VN);CE140,NDE140,NZE140,ZRE141,142..GCC,IND,PKN,TAIW,VN Production:2010-07 – … Fitment:Matches · configuration
58342-12020 BRACKET, REAR ABSORBER MOUNTING, NO.1 LH 1
Note:CE140,NDE140,NZE140,ZRE14#..IND,PKN,VN Production:2010-10 – … Fitment:Matches · configuration
58791-12200 CARRIER, JACK 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58351-33010 BRACKET, SPARE WHEEL CARRIER 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58247-02080 REINFORCEMENT, REAR SEAT CUSHION HINGE, RH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58247-02080 REINFORCEMENT, REAR SEAT CUSHION HINGE, LH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58307-02230 PANEL SUB-ASSY, BODY LOWER BACK 1
Note:ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,VN;NDE140,ZRE141..16E,16G,16V,E,G,XLI;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC Production:2010-07 – … Fitment:Matches · configuration
58384-02140 GUSSET, LOWER BACK, UPPER RH 1
Note:ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141..16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI Production:2010-07 – … Replacements:58384-12210 (fitment: unknown) Fitment:Matches · configuration
58385-02120 GUSSET, LOWER BACK, UPPER LH 1
Note:ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141..16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI Production:2010-07 – … Replacements:58385-12190 (fitment: unknown) Fitment:Matches · configuration
58386-02040 BRACKET, REAR BUMPER COVER, NO.2 2
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Replacements:58386-12020 (fitment: unknown) Fitment:Matches · configuration
90115-06166 standard —
Fitment:Matches · configuration
90115-T0011 standard —
Replacements:90115-06166 (fitment: unknown) Fitment:Matches · configuration
90297-03007 standard —
Fitment:Matches · configuration
90115-06219 standard —
Fitment:Matches · configuration
90119-08A12 standard —
Fitment:Matches · configuration
82715-02E20 standard —
Fitment:Matches · configuration
90115-T0023 standard —
Replacements:90115-06219 (fitment: unknown) Fitment:Matches · configuration

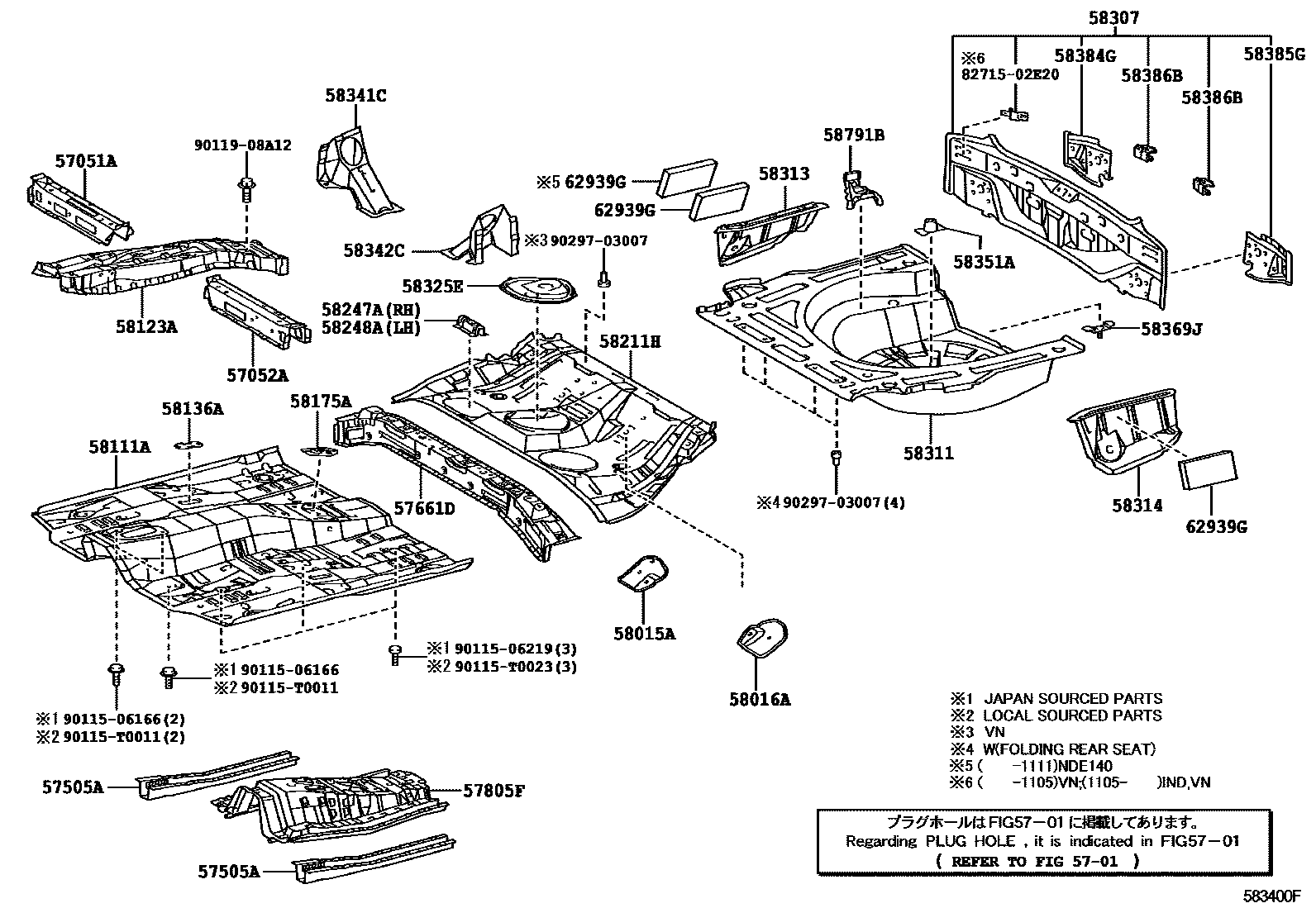

Diagram

36 parts
Toyota Corolla-Altis 2013 — Floor Pan & Lower Back Panel
