General 2012 COROLLA ALTIS ZRE142L-GEPNKV
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION Vehicle Grade: GLI TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 040 Trim Code: FH40 Production: 201007-201310 Model Short: ZRE142L-GEPNKV Region: OTHER Native Region: GR

Toyota Corolla-Altis 2012 — Floor Pan & Lower Back Panel

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
57051-02060 MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH 1
Note:ZRE142..HTWCF;ZRE142..18G..(IDN,MA);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – 2013-11 Fitment:Matches · configuration
57052-02050 MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH 1
Note:ZRE142..HTWCF;ZRE142..18G..(IDN,MA);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – 2013-11 Fitment:Matches · configuration
57053-02060 REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH 1
Note:ZRE142..HTWCF;ZRE142..18G..(IDN,MA);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – 2013-11 Fitment:Matches · configuration
57054-02040 REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH 1
Note:ZRE142..HTWCF;ZRE142..18G..(IDN,MA);ZRE141,143..(6F,CVFC)..(16J,20G,20V,G)..(IDN,MA,PHL,TAIW,TH);ZRE141,142..(16E,16G,16V,18E,18J,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH)..HTWC Production:2010-07 – 2013-11 Fitment:Matches · configuration
57417-02120 REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER 2
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Replacements:57417-12120 (fitment: unknown) Fitment:Matches · configuration
57407-02140 MEMBER, REAR FLOOR CROSS, FRONT 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Replacements:57407-12152 (fitment: unknown) Fitment:Matches · configuration
58015-02150 REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Fitment:Matches · configuration
58016-02130 REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Replacements:58016-12080 (fitment: unknown) Fitment:Matches · configuration
58111-02926 PAN, FRONT FLOOR, RH 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Fitment:Matches · configuration
58013-02150 SUPPORT, SHIFT & SELECT LEVER 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58136-33010 COVER, FRONT FLOOR SERVICE HOLE 2
Note:ZRE141,142..GCC,IDN,MA,PHL,TAIW,TH;ZRE143..CVFC..(IDN,MA,PHL,TAIW,TH) Production:2010-07 – 2013-11 Fitment:Matches · configuration
57805-02070 REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58176-02040 REINFORCEMENT, PARKING BRAKE BASE, NO.1 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58211-02350 PAN, CENTER FLOOR 1
Note:ZRE142,143..LHD..(18E,20G,G,GLI) Production:2010-07 – 2013-10 Fitment:Matches · configuration
58311-12270 PAN, REAR FLOOR 1
Note:ZRE142..HTWCF;ZRE143..CVFC..(IDN,MA,PHL,TAIW,VN);ZRE14#..(6F,CVFC)..(16J,18E,20G)..TH..HTWC;ZRE142..(18E,18G,18J,E,GLI,XLI)..(GCC,IDN,IND,MA,TAIW,VN);CE140,NDE140,NZE140,ZRE141..16E,16G,16V,20D,20DSA,D,E,GLI,N,XLI Production:2010-07 – … Fitment:Matches · configuration
58369-12020 BRACKET, REAR FLOOR BRACE 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58313-12300 PANEL, REAR FLOOR SIDE, RH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
62939-02050 SILENCER, QUARTER VENT 2
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,G,GLI,XLI) Production:2010-07 – … Replacements:62939-12030 (fitment: unknown) Fitment:Matches · configuration
58314-12300 PANEL, REAR FLOOR SIDE, LH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58325-02130 COVER, REAR FLOOR SERVICE HOLE 1
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Replacements:58325-12150 (fitment: unknown) Fitment:Matches · configuration
58341-12020 BRACKET, REAR ABSORBER MOUNTING, NO.1 RH 1
Note:ZRE143..CVFC..(TAIW,VN);CE140,NDE140,NZE140,ZRE141,142..GCC,IND,PKN,TAIW,VN Production:2010-07 – … Fitment:Matches · configuration
— Part does not apply to this vehicle configuration. 58035D —
— Part does not apply to this vehicle configuration. 58036B —
58342-02010 BRACKET, REAR ABSORBER MOUNTING, NO.1 LH 1
Note:ZRE14#..GCC,TAIW Production:2010-07 – 2013-10 Replacements:58342-12020 (fitment: unknown) Fitment:Matches · configuration
58307-02230 PANEL SUB-ASSY, BODY LOWER BACK 1
Note:ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,VN;NDE140,ZRE141..16E,16G,16V,E,G,XLI;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC Production:2010-07 – … Fitment:Matches · configuration
58384-02140 GUSSET, LOWER BACK, UPPER RH 1
Note:ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141..16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI Production:2010-07 – … Replacements:58384-12210 (fitment: unknown) Fitment:Matches · configuration
58385-02120 GUSSET, LOWER BACK, UPPER LH 1
Note:ZRE142..HTWCF;ZZE141..(16G,LIMO)..TH;ZRE142..GCC,IDN,IND,MA,VN;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC;CE140,NDE140,NZE140,ZRE141..16E,16G,16V,20D,20DSA,D,E,G,GLI,N,XLI Production:2010-07 – … Replacements:58385-12190 (fitment: unknown) Fitment:Matches · configuration
58386-02040 BRACKET, REAR BUMPER COVER, NO.2 2
Note:ZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Replacements:58386-12020 (fitment: unknown) Fitment:Matches · configuration
58791-12200 CARRIER, JACK 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58351-33010 BRACKET, SPARE WHEEL CARRIER 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58247-02080 REINFORCEMENT, REAR SEAT CUSHION HINGE, RH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
58247-02080 REINFORCEMENT, REAR SEAT CUSHION HINGE, LH 1
Note:ZRE142..HTWCF;ZRE142..18E..TH..HTWC;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI) Production:2010-07 – … Fitment:Matches · configuration
90115-06166 standard —
Fitment:Matches · configuration
90115-T0011 standard —
Replacements:90115-06166 (fitment: unknown) Fitment:Matches · configuration
90297-03007 standard —
Fitment:Matches · configuration
90115-06219 standard —
Fitment:Matches · configuration
90119-08A12 standard —
Fitment:Matches · configuration
82715-02E20 standard —
Fitment:Matches · configuration
90119-T0299 standard —
Replacements:90119-08A12 (fitment: unknown) Fitment:Matches · configuration

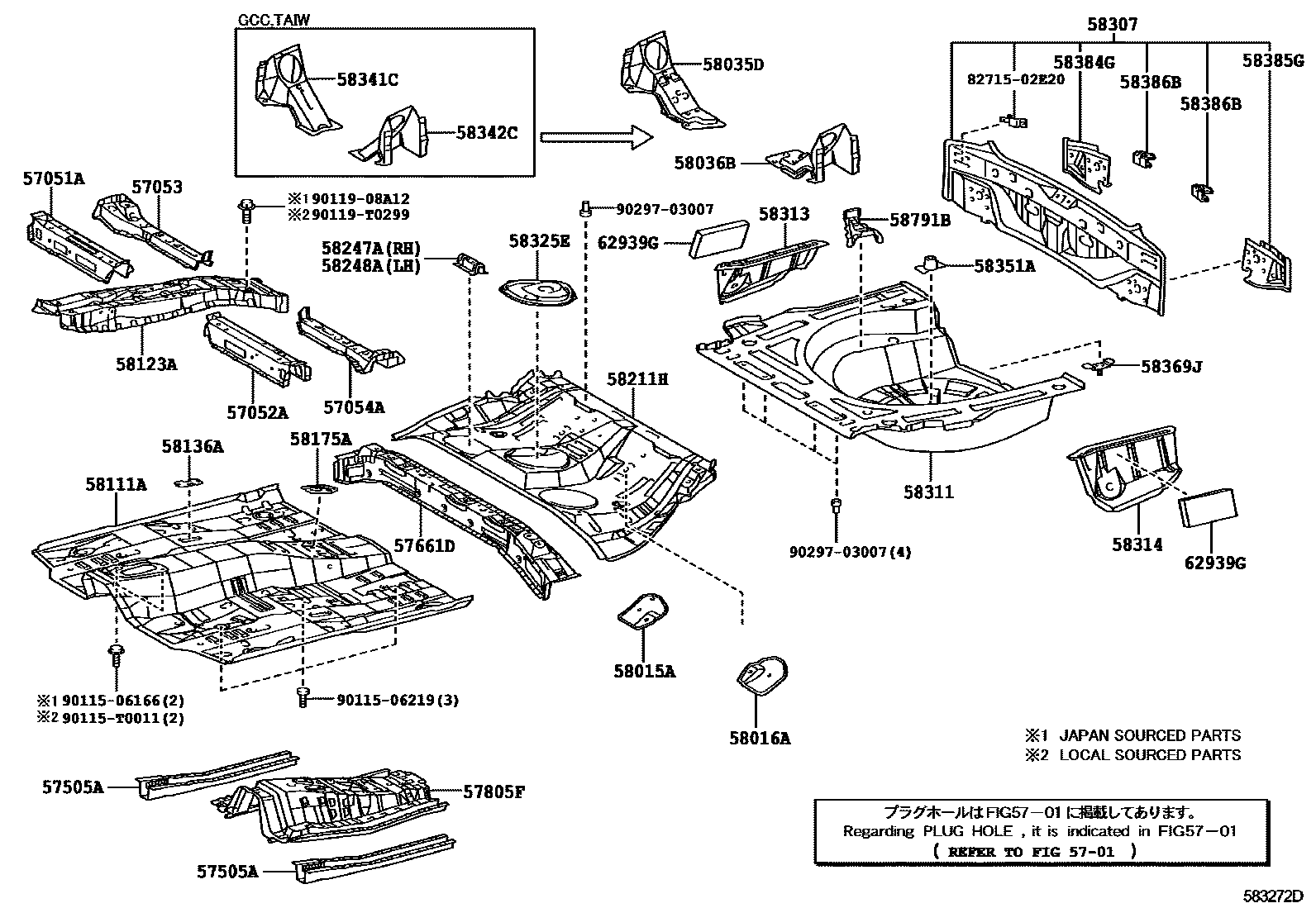

Diagram

37 parts
Toyota Corolla-Altis 2012 — Floor Pan & Lower Back Panel
