Toyota COROLLA-TUP 2020 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90080-87021 | RELAY, FOG LAMP | 1 | |
Note:MZEA11,ZRE21#,ZWE21#..G,N Production:2019-01 – 2021-09 Replacements:90987-02012 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 85910V | — |
| — | Part does not apply to this vehicle configuration. | 28371 | — |
| — | Part does not apply to this vehicle configuration. | 89730A | — |
| — | Part does not apply to this vehicle configuration. | 85913F | — |
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … Spec:30A,FEMALE,PNK,32V | |||
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … Spec:20A,MINI FUSE,YELLOW | |||
| 89121-F4010 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … Replacements:89121-30020 (fitment: unknown) | |||
| 82730-02P80 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … | |||
| 82672-02110 | COVER, JUNCTION BLOCK | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … | |||
| 82673-F4020 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:ZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN) Production:2019-01 – … | |||
| 82877-F4020 | BOX, COMPUTER INTEGRATION, RH | 1 | |
Note:ZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN) Production:2020-04 – … | |||
| 89111-02030 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:ZWE211,213 Production:2019-01 – 2022-01 Replacements:89111-12040 (fitment: unknown) | |||
| 85940-12230 | RELAY ASSY, WINDSHIELD WIPER | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … | |||
| 69065-02010 | CYLINDER SUB-ASSY, AIRBAG CUT OFF SWITCH | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … Replacements:69065-12460 (fitment: unknown) | |||
| 82673-02270 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:ZWE211,213..LHD;ZRE210..6F..N..RUS;ZRE210..CVT..N..GCC;ZRE210..LHD..D..EUR;ZRE210..LHD..6F..(GCC,GEN);MZEA11,ZRE211..G..(EUR,GCC,GEN) Production:2019-01 – … | |||
| — | Part does not apply to this vehicle configuration. | 84550 | — |
| 82715-0Z150 | BRACKET, WIRING HARNESS CLAMP, NO.3 | 1 | |
Note:ZWE211,213..LHD;ZRE210..CVT..N..GCC;ZRE210..LHD..CVT..D..EUR;MZEA11,ZRE211..CVT..G..(EUR,GCC,GEN) Production:2019-01 – … Replacements:82715-12X60 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 84520 | — |
| — | Part does not apply to this vehicle configuration. | 88280A | — |
| 84345-51010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … | |||
| 84340-09370 | SWITCH ASSY, STOP LAMP | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … | |||
| 89650-12L60 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:ZWE211,213..N Production:2019-12 – … Spec:JTEKT/DENSO | |||
| 82660-12460 | BLOCK ASSY, RELAY | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … | |||
| 82663-12150 | COVER, RELAY BLOCK, LOWER, NO.3 | 1 | |
Note:ZWE211,213;ZRE211..RHD;MZEA11..6F..G;MZEA11..RHD..6F;ZRE210..6F..N..RUS;ZRE210..LHD..D..EUR;ZRE210..CVT..N..GCC;ZRE210..6F..(GCC,GEN);ZRE210..RHD..CVT..D..GEN;MZEA11,ZRE211..CVT..(D,G)..(EUR,GCC,GEN) Production:2019-01 – … | |||
| — | Part does not apply to this vehicle configuration. | 89280 | — |
| 89220-0Z031 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:ZWE211,213..LHD..N..EUR Production:2020-11 – … Spec:TURKEY SPEC&OUTSIDE REAR VIEW MIRROR-*AREM & *HEA Rev.ref.no From:0005 Serial Ranges:Other: From R068452 · ZWE211 · · 00050040 | |||
| 90178-W0019 | standard | — | |
Replacements:94151-80600 (fitment: unknown) | |||
| 90119-W0333 | standard | — | |
Replacements:90119-06A21 (fitment: unknown) | |||
| 93315-54010 | standard | — | |
| 90179-06274 | standard | — | |
| 90178-W0039 | standard | — | |
| 90119-W0127 | standard | — | |
Replacements:90119-06951 (fitment: unknown) | |||
| 94120-41000 | standard | — | |

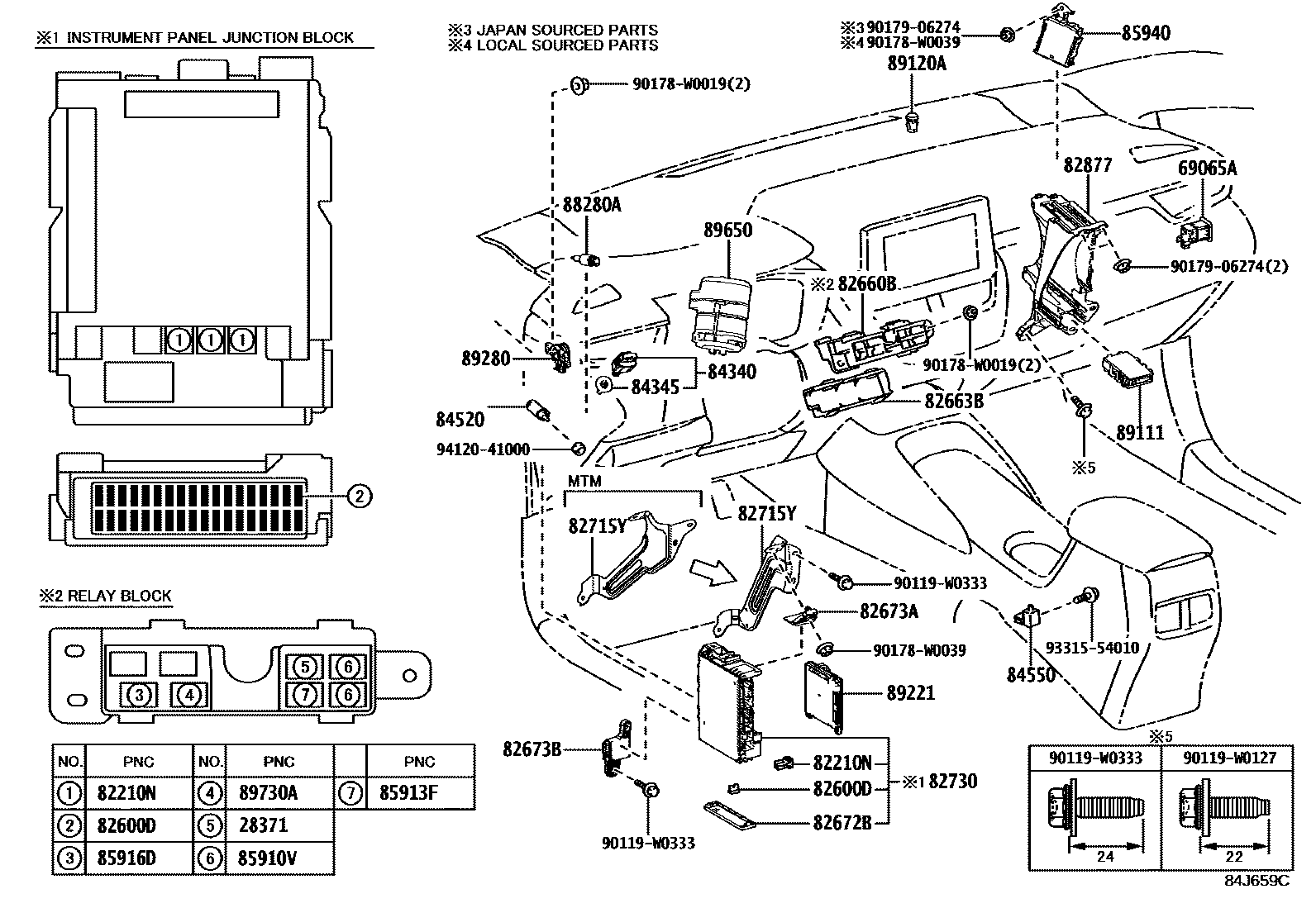

Diagram
30 parts
