Open RegionYearModelModelCode Details
USA / Canada 2019 YARIS VIOS LIMO NSP151L-AEMRK
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 5-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: 4-DOOR Color Code: 1D4 Trim Code: FA20 Production: 201710-999999 Model Short: NSP151L-AEMRK Region: NA Native Region: US

Toyota Yaris-Vios-Limo 2019 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82660-48020 BLOCK ASSY, RELAY 1
Note:NSP152..HTWCB;NSP150..CVT..(A,C);NSP151..(GCC,TH)..A;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..LHD..CVT..GEN..A;NSP151..5F..(GEN,IDN)..(A,C);NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07
82660-48030 BLOCK ASSY, RELAY 1
Note:NSP152..HTWCB;NSP150..CVT..(A,C);NSP151..(GCC,TH)..A;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..LHD..CVT..GEN..A;NSP151..5F..(GEN,IDN)..(A,C);NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07
82660-48040 BLOCK ASSY, RELAY 1
Note:NSP152..HTWCB;NSP150..CVT..(A,C);NSP151..(GCC,TH)..A;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..LHD..CVT..GEN..A;NSP151..5F..(GEN,IDN)..(A,C);NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07
84550-02030 SWITCH ASSY, PARKING BRAKE 1
Note:NSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A Production:2017-08 – 2022-07 Replacements:84550-16060 (fitment: unknown)
— Part does not apply to this vehicle configuration. 89120A —
89650-0D630 COMPUTER ASSY, POWER STEERING 1
Note:NSP150,151..LHD..(A,C,D,E) Production:2017-10 – 2020-11 Spec:JTEKT/DENSO
84520-42010 SWITCH ASSY, CLUTCH START 1
Note:NSP150..5F..GEN..D;NSP150..5F..R..(A,C);NSP151..5F..(GEN,IDN) Production:2017-10 – 2022-07
84345-0K010 ADJUSTER, STOP LAMP SWITCH MOUNTING 1
Note:NSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07 Replacements:84345-51010 (fitment: unknown)
84340-09210 SWITCH ASSY, STOP LAMP 1
Note:NSP151..GEN..R Production:2017-10 – 2022-07 Replacements:84340-69115 (fitment: unknown) Spec:E-SPORT PACKAGE(GRADE MARK(S))
89420-52100 SENSOR ASSY, VACUUM 1
Note:NSP151..A;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07
— Part does not apply to this vehicle configuration. 88280A —
82673-0D320 BRACKET, JUNCTION BLOCK, NO.1 1
Note:NSP151..LHD..(A,H);NSP150..LHD..GEN..D;NSP150..LHD..(G,R)..A;NSP150..CVT..GCC..D..A Production:2017-10 – 2022-07
82715-0DW90 BRACKET, WIRING HARNESS CLAMP 1
Note:NSP150..CVT..GCC..A;NSP151..LHD..(A,D,E);NSP150..5F..GCC..R..A;NSP150..LHD..(GEN,PH,VN)..(A,D,E) Production:2017-10 – 2022-07
82673-0K020 BRACKET, JUNCTION BLOCK, NO.2 1
Note:NSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07
82730-0DA10 BLOCK ASSY, DRIVER SIDE JUNCTION 1
Note:NSP151..A;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A Production:2017-08 – 2022-07
90982-08295 INSTRUMENT PANEL FUSIBLE LINK 1
Note:NSP15# Production:2017-08 – … Spec:30A,FEMALE,PNK,58V
90982-09019 INSTRUMENT PANEL FUSE 1
Note:NSP15# Production:2017-08 – … Spec:5A,MINI FUSE,TAN
90982-09020 INSTRUMENT PANEL FUSE 1
Note:NSP15# Production:2017-08 – … Spec:7.5A,MINI FUSE,BROWN
90982-09021 INSTRUMENT PANEL FUSE 1
Note:NSP15# Production:2017-08 – … Spec:10A,MINI FUSE,RED
90982-09022 INSTRUMENT PANEL FUSE 1
Note:NSP15# Production:2017-08 – … Spec:15A,MINI FUSE,BLUE
90982-09023 INSTRUMENT PANEL FUSE 1
Note:NSP15# Production:2017-08 – … Spec:20A,MINI FUSE,YELLOW
90982-09024 INSTRUMENT PANEL FUSE 1
Note:NSP15# Production:2017-08 – … Spec:25A,MINI FUSE
82672-0D030 COVER, JUNCTION BLOCK 1
Note:NSP151..A;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07
89221-0D610 COMPUTER, BODY 1
Note:NSP151..GEN..(D,R)..A Production:2017-10 – 2022-07 Spec:MEXICO SPEC
82610-52010 BLOCK ASSY, FUSE 1
Note:NSP152..HTWCB;NSP150..CVT..(A,C);NSP151..(GCC,TH)..A;NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..LHD..CVT..GEN..A;NSP151..5F..(GEN,IDN)..(A,C);NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07
90982-09019 FUSE, FUSE BLOCK 1
Note:NSP15# Production:2017-08 – … Spec:5A,MINI FUSE,TAN
90982-09020 FUSE, FUSE BLOCK 1
Note:NSP15# Production:2017-08 – … Spec:7.5A,MINI FUSE,BROWN
90987-T2001 RELAY, TAILLAMP 1
Note:NSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07 Replacements:90987-02027 (fitment: unknown)
— Part does not apply to this vehicle configuration. 85916L —
90987-02027 RELAY, DEFOGGER 1
Note:NSP152..HTWCB;NSP151..5F..G..A;NSP151..(D,R)..A;NSP150..RHD..CVT..A;NSP150..5F..R..(A,C);NSP151..GCC..G..(A,C);NSP150..5F..GEN..D..A;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP151..CVT..(GCC,IDN)..R..C;NSP150..LHD..CVT..GEN..(D,R)..A Production:2017-08 – 2022-07 Spec:(J) Spec Note:(Japan made)
90987-T2001 RELAY, DEFOGGER 1
Note:NSP152..HTWCB;NSP151..5F..G..A;NSP151..(D,R)..A;NSP150..RHD..CVT..A;NSP150..5F..R..(A,C);NSP151..GCC..G..(A,C);NSP150..5F..GEN..D..A;NSP151..5F..IDN..(D,R);NSP150..CVT..GCC..(A,C);NSP151..CVT..(GCC,IDN)..R..C;NSP150..LHD..CVT..GEN..(D,R)..A Production:2017-08 – 2022-07 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
— Part does not apply to this vehicle configuration. 85530A —
— Part does not apply to this vehicle configuration. 84270Q —
90987-T2002 RELAY, HEADLAMP 1
Note:NSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07 Replacements:90987-02025 (fitment: unknown)
90987-T2001 RELAY, FOG LAMP 1
Note:NSP151..GEN..R Production:2017-10 – 2022-07 Replacements:90987-02027 (fitment: unknown) Spec:MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))
— Part does not apply to this vehicle configuration. 82642B —
90987-02025 RELAY, HEATER 1
Note:NSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07 Spec:(J) Spec Note:(Japan made)
90987-T2002 RELAY, HEATER 1
Note:NSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07 Replacements:90987-02025 (fitment: unknown) Spec:(L) Spec Note:(Local made)
— Part does not apply to this vehicle configuration. 28371 —
90987-T2001 RELAY(FOR SECURITY WARNING) 1
Note:NSP151..GEN..(D,R)..A Production:2017-10 – 2022-07 Replacements:90987-02027 (fitment: unknown) Spec:MEXICO SPEC
— Part does not apply to this vehicle configuration. 28371C —
— Part does not apply to this vehicle configuration. 84930F —
— Part does not apply to this vehicle configuration. 85940 —
90178-T0007 standard —
Replacements:90179-06216 (fitment: unknown)
90179-06274 standard —
93315-14012 standard —
90159-T0003 standard —
90159-70003 standard —
90159-T0037 standard —
Replacements:90159-60613 (fitment: unknown)
90170-10017 standard —
94120-41000 standard —
90119-T0313 standard —
Replacements:91673-80620 (fitment: unknown)
91673-80620 standard —
91673-80616 standard —
94151-80600 standard —

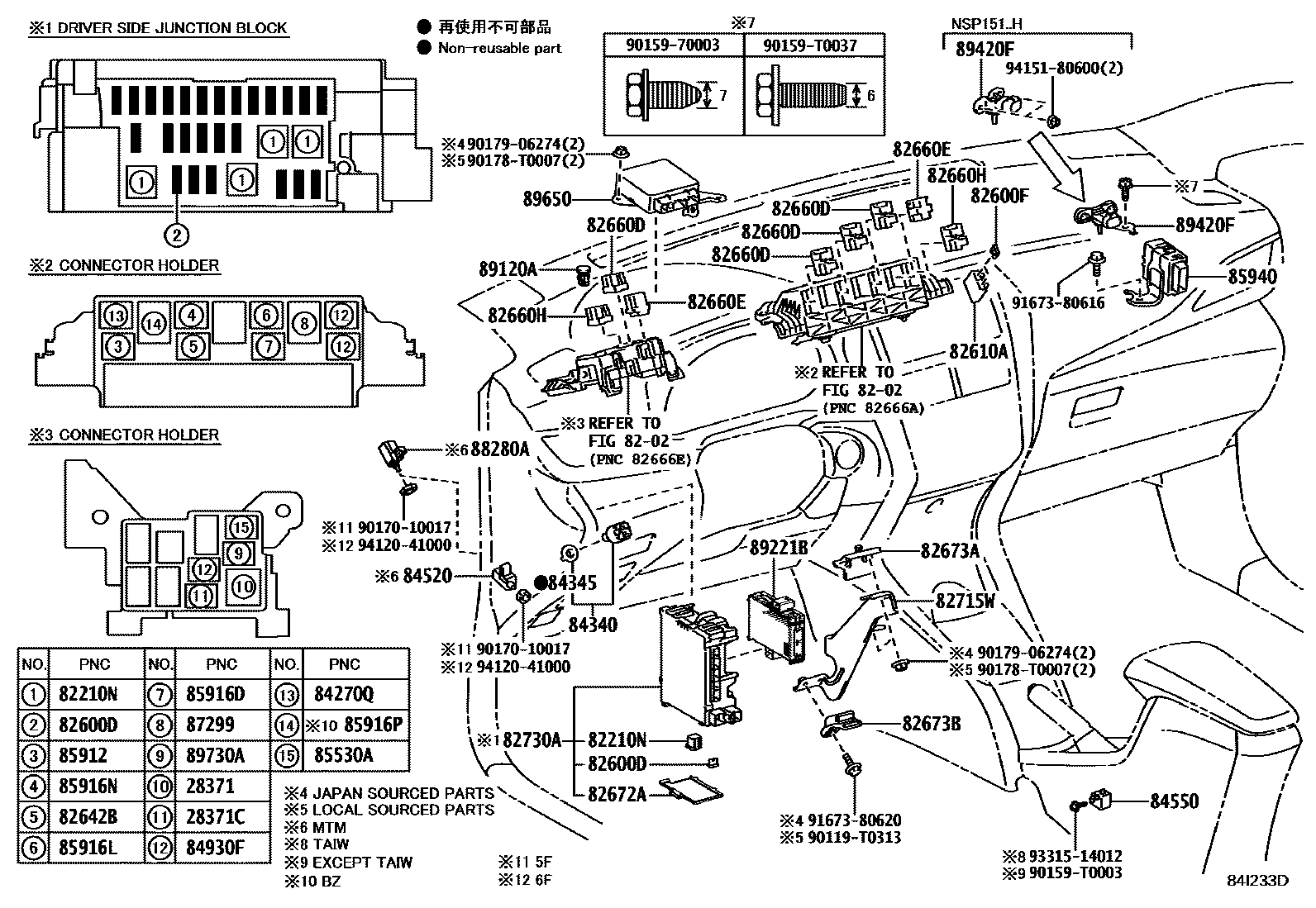

Diagram

45 parts
Toyota Yaris-Vios-Limo 2019 — Switch & Relay & Computer
