Open RegionYearModelModelCode Details
General 2019 YARIS VIOS LIMO NSP151L-AEMRK
Catalog: TOYOTA202608 Engine: 1500CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 5-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: 4-DOOR Color Code: 1D4 Trim Code: FA20 Production: 201710-999999 Model Short: NSP151L-AEMRK Region: OTHER Native Region: GR

Toyota Yaris-Vios-Limo 2019 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84308-0K010 CABLE SUB-ASSY, SPIRAL 1
Note:NSP151..GEN..R Production:2017-10 – 2020-09 Spec:MEXICO SPEC&AUDIO-RADIOLESS 4SPEAKER
84140-0D590 SWITCH ASSY, HEADLAMP DIMMER 1
Note:NSP151..GEN..R Production:2017-10 – 2022-07 Spec:MEXICO SPEC&E-SPORT PACKAGE(GRADE MARK(S))
84250-0D430-C0 SWITCH ASSY, STEERING PAD 1
Note:NSP151..GEN..R..A;NSP150..GEN..(G,R)..A;NSP151..(GEN,TH)..G..A Production:2017-08 – 2020-09 Spec:BLACK,TRIM0#,2#
8924B-0D010 SENSOR, STEERING 1
Note:NSP151..GEN..(D,R)..A Production:2017-10 – 2022-07 Spec:MEXICO SPEC
84307-0D180 CABLE SUB-ASSY, SPIRAL W/SENSOR 1
Note:NSP151..GEN..R Production:2017-10 – 2020-09 Spec:MEXICO SPEC&AUDIO-RADIOLESS 4SPEAKER
— Part does not apply to this vehicle configuration. 84523 —
— Part does not apply to this vehicle configuration. 84610F —
84052-0K020 SWITCH ASSY, UN-LOCK WARNING 1
Note:NSP152..HTWCB;NSP151..CVT..D..A;NSP150..5F..R..(A,C);NSP151..GCC..G..(A,C);NSP150..5F..GEN..D..A;NSP150..CVT..GCC..(A,C);NSP150..CVT..GEN..(D,R)..A;NSP151..5F..(GEN,IDN)..(D,R)..(A,C);NSP151..CVT..(GCC,GEN,IDN)..R..(A,C) Production:2017-08 – 2022-07 Replacements:84052-71010 (fitment: unknown)
84450-06030 SWITCH ASSY, IGNITION OR STARTER 1
Note:NSP152..HTWCB;NSP151..CVT..D..A;NSP150..5F..R..(A,C);NSP151..GCC..G..(A,C);NSP150..5F..GEN..D..A;NSP150..CVT..GCC..(A,C);NSP150..CVT..GEN..(D,R)..A;NSP151..5F..(GEN,IDN)..(D,R)..(A,C);NSP151..CVT..(GCC,GEN,IDN)..R..(A,C) Production:2017-08 – 2022-07 Replacements:84450-52020 (fitment: unknown)
— Part does not apply to this vehicle configuration. 85432 —
— Part does not apply to this vehicle configuration. 84650 —
84652-0K280 SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) 1
Note:NSP150,151..GCC..G..A;NSP150,151..LHD..GEN..A Production:2017-10 – 2022-07
90168-40113 standard —
90159-T0007 standard —
Replacements:90159-50199 (fitment: unknown)
90159-50199 standard —
90168-40129 standard —
90168-T0004 standard —
Replacements:90168-40129 (fitment: unknown)

Diagram

13 parts

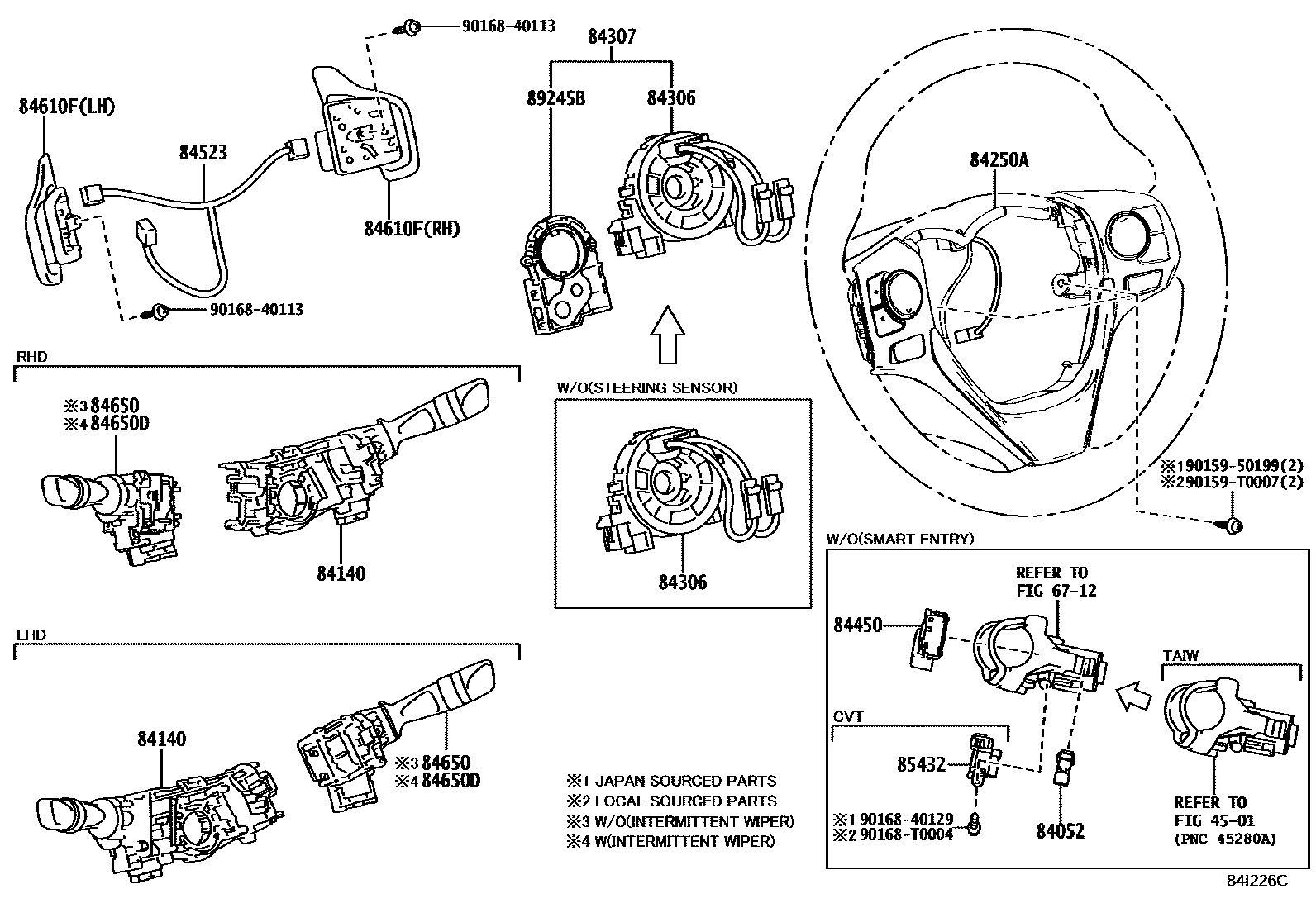

Toyota Yaris-Vios-Limo 2019 — Switch & Relay & Computer
