Toyota Vios-Yaris-Yarisativ 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82600-BZL80 | BLOCK ASSY, FUSE | 1 | |
Note:NGC101,102..M..GCC Production:2022-08 – 2025-08 Replacements:82600-BZL81 (fitment: unknown) | |||
| 89111-BZ031 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:NGC10#..THP Production:2022-08 – … | |||
| 84340-B2061 | SWITCH ASSY, STOP LAMP | 1 | |
Note:NGC10#,NYC100 Production:2022-08 – … | |||
| 84345-BZ040 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:NGC10#,NYC100 Production:2022-08 – … | |||
| 90987-T2001 | RELAY, HORN | 1 | |
Note:NGC10#,NYC100 Production:2022-08 – … Replacements:90987-02027 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 84520 | — |
| 82616-58010 | PULLER, FUSE | 1 | |
Note:NGC10#,NYC100 Production:2022-08 – … | |||
| 90041-20197 | standard | — | |
| 90041-63014 | standard | — | |
| 90982-09019 | standard | — | |
| 90982-09020 | standard | — | |
| 90982-09021 | standard | — | |
| 90982-09022 | standard | — | |
| 90982-09024 | standard | — | |
| 90982-09025 | standard | — | |
| 90982-09023 | standard | — | |
| 90982-08306 | standard | — | |
| 90170-T0005 | standard | — | |
Replacements:94120-41000 (fitment: unknown) | |||

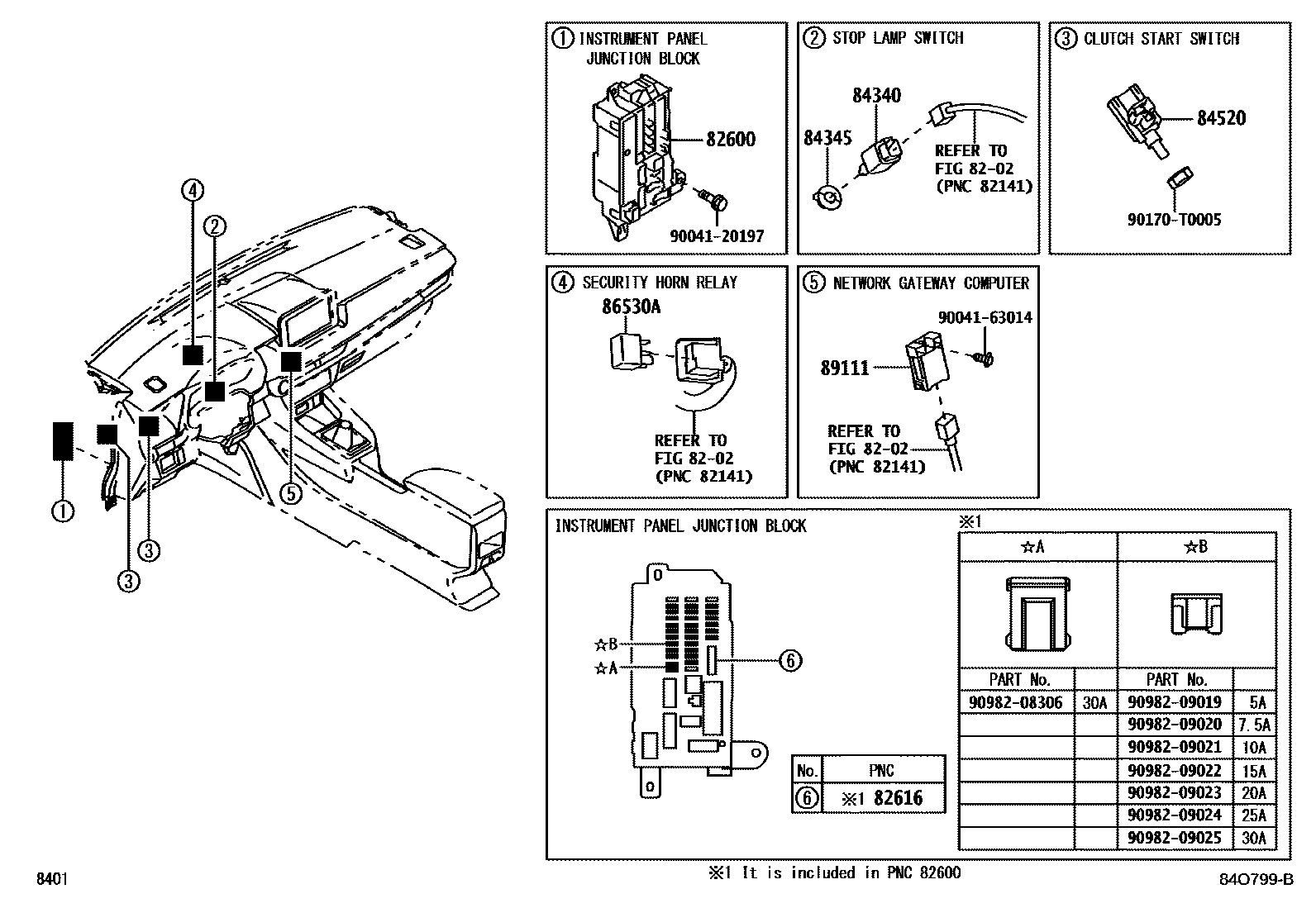

Diagram
17 parts
