Toyota Yaris-Vios-Limo 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 8598A | — |
| 84231-02070 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:NSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A Production:2017-08 – 2022-07 Replacements:84231-52010 (fitment: unknown) | |||
| 84231-02070 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:NSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A Production:2017-08 – 2022-07 Replacements:84231-52010 (fitment: unknown) | |||
| 83320-0D150 | GAGE ASSY, FUEL SENDER | 1 | |
Note:NSP151..A;NSP152..HTWCB;NSP151..5F..IDN;NSP150..CVT..(A,C);NSP150..5F..R..(A,C);NSP150..5F..GEN..D..A;NSP151..CVT..(GCC,IDN)..(G,R)..C Production:2017-08 – 2022-07 | |||
| 84820-0D600 | MASTER SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:NSP151..AGT..R;NSP151..D..(A,H);NSP150..GCC..(G,R)..A;NSP151..LHD..(G,R)..(A,D,E);NSP150..LHD..(GEN,PH,VN)..(A,D,E) Production:2017-10 – 2022-07 | |||
| 84872-0D270 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:NSP150..LHD..R..A;NSP150..LHD..GEN..D;NSP151..LHD..(D,R)..A Production:2021-02 – 2022-07 | |||
| 84810-0D300 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:NSP151..A;NSP152..HTWCB;NSP150..CVT..A;NSP150..5F..GCC..R..A;NSP150..LHD..5F..GEN..A Production:2017-08 – 2022-07 | |||
| 84810-0D300 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:NSP151..A;NSP152..HTWCB;NSP150..CVT..GEN..A;NSP150..GCC..(G,R)..A;NSP150..LHD..5F..GEN..A Production:2017-08 – 2022-07 | |||
| — | Part does not apply to this vehicle configuration. | 84010D | — |
| — | Part does not apply to this vehicle configuration. | 84945A | — |
| 90119-T0279 | standard | — | |
Replacements:90119-06995 (fitment: unknown) | |||
| 90166-70001 | standard | — | |
| 90164-T0005 | standard | — | |
Replacements:90164-40103 (fitment: unknown) | |||
| 90164-40103 | standard | — | |
| 90167-T0012 | standard | — | |
Replacements:93568-55014 (fitment: unknown) | |||
| 93568-55014 | standard | — | |
| 90159-T0034 | standard | — | |
| 90159-60498 | standard | — | |
| 90189-06197 | standard | — | |

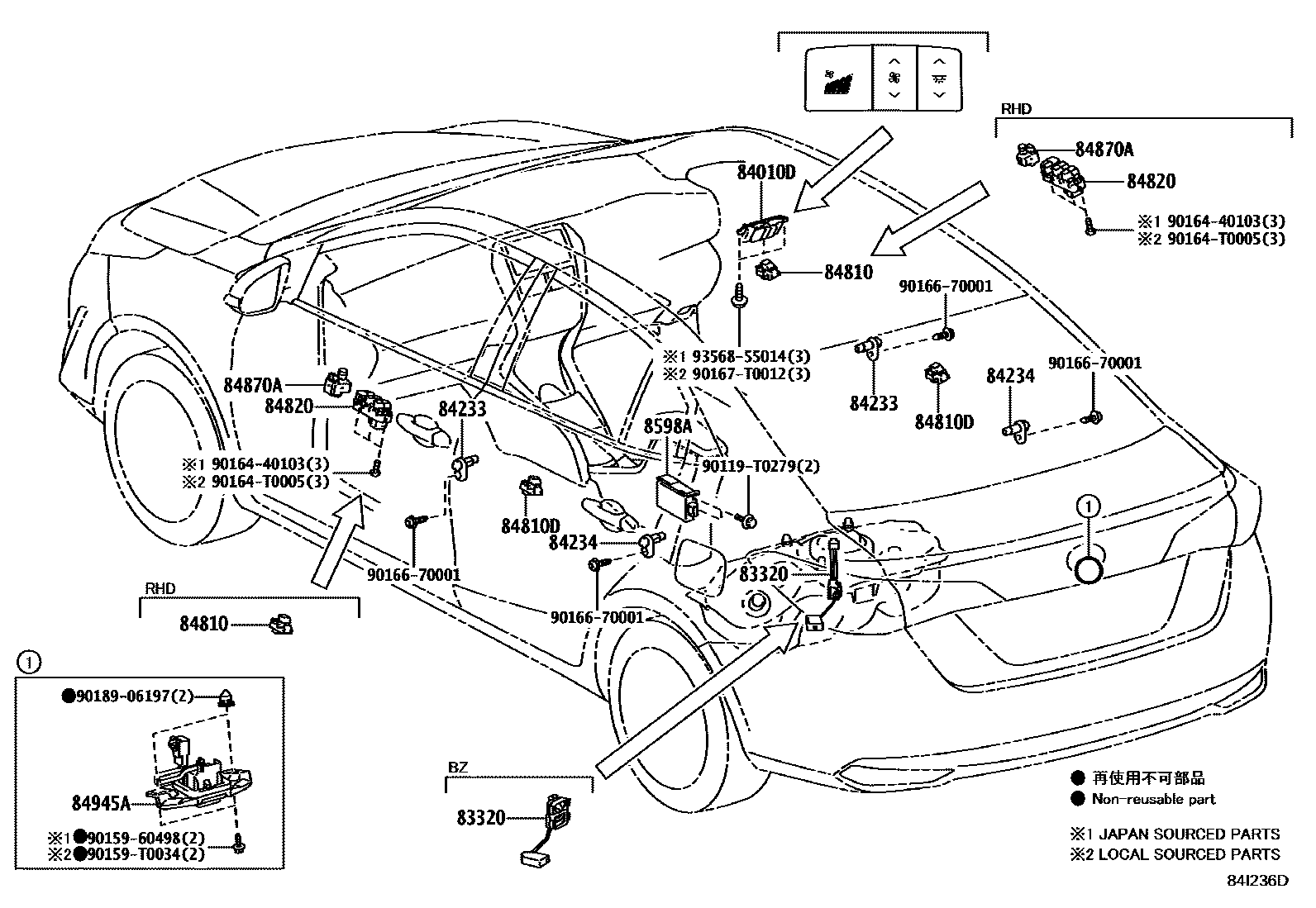

Diagram
16 parts
