Open RegionYearModelModelCode Details
General 2016 YARIS VIOS LIMO NSP150L-BEMRK
Catalog: TOYOTA202608 Engine: 1300CC 16-VALVE DOHC EFI Transmission Description: MANUAL TRANSMISSION, MTM, 5-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: 4-DOOR Color Code: 1D4 Trim Code: FC20 Production: 201604-201709 Model Short: NSP150L-BEMRK Region: OTHER Native Region: GR

Toyota Yaris-Vios-Limo 2016 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90987-02027 RELAY, COOLING FAN 1
Note:NSP150,151..GEN Production:2013-04 – 2017-09 Spec:(J) Spec Note:(Japan made)
90987-T2001 RELAY, COOLING FAN 1
Note:NSP150,151..GEN Production:2013-04 – 2017-09 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
— Part does not apply to this vehicle configuration. 85926 —
28300-0L011 RELAY ASSY, STARTER 1
Note:1NRFE,2NRFE..NSP150,151..GEN Production:2016-05 – 2017-09 Replacements:28300-21020 (fitment: unknown)
90982-09020 ENGINE ROOM FUSE 1
Note:NCP15#,NSP15# Production:2013-04 – … Spec:7.5A,MINI FUSE,BROWN
90982-09021 ENGINE ROOM FUSE 1
Note:NCP15#,NSP15# Production:2013-04 – … Spec:10A,MINI FUSE,RED
90982-09022 ENGINE ROOM FUSE 1
Note:NCP15#,NSP150,151..B,C Production:2013-04 – … Spec:15A,MINI FUSE,BLUE
90982-09023 ENGINE ROOM FUSE 1
Note:NCP15#,NSP150,151..B,C Production:2013-04 – … Spec:20A,MINI FUSE,YELLOW
90982-09024 ENGINE ROOM FUSE 1
Note:NCP15#,NSP150,151..B,C Production:2013-04 – … Spec:25A,MINI FUSE
90982-09025 ENGINE ROOM FUSE 1
Note:NCP15#,NSP150,151..B,C Production:2013-04 – … Spec:30A,MINI FUSE,GRN
— Part does not apply to this vehicle configuration. 85916P —
90987-02028 RELAY, MAGNET-CLUTCH 1
Note:NSP150,151..GEN Production:2013-04 – 2017-09
90987-T2001 RELAY ASSY, HORN 1
Note:NSP150,151..GEN Production:2013-04 – 2017-09 Replacements:90987-02027 (fitment: unknown)
90982-08274 ENGINE ROOM FUSIBLE LINK 1
Note:NCP15#,NSP150,151..B,C Production:2013-04 – … Spec:120A,TERM.:MALE,WHT
90982-08295 ENGINE ROOM FUSIBLE LINK 1
Note:NCP15#,NSP150,151..B,C Production:2013-04 – … Spec:30A,FEMALE,PNK,58V
90982-08296 ENGINE ROOM FUSIBLE LINK 1
Note:NCP15#,NSP150,151..B,C Production:2013-04 – … Spec:50A,FEMALE,RED,58V
90982-08302 ENGINE ROOM FUSIBLE LINK 1
Note:NCP15#,NSP150,151..B,C Production:2013-04 – … Spec:50A-30A-50A,FEMALE
90080-87009 RELAY, COOLING FAN, NO.2 1
Note:NSP150,151..GEN Production:2013-04 – 2017-09 Replacements:90987-04004 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-04004 RELAY, COOLING FAN, NO.2 1
Note:NSP150,151..GEN Production:2013-04 – 2017-09 Spec:(J) Spec Note:(Japan made)
82661-52050 COVER, RELAY BLOCK, NO.1 1
Note:NSP150,151..GEN Production:2013-04 – 2017-09
82663-0D090 COVER, RELAY BLOCK, LOWER 1
Note:NCP15#,NSP150,151..B,C Production:2013-04 – …
— Part does not apply to this vehicle configuration. 82660C —
82660-0D050 BLOCK ASSY, RELAY 1
Note:NCP15#,NSP150,151..B,C Production:2013-04 – …
82662-0D200 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:NCP150,NSP151..VN..R;NCP150,NSP151..(GCC,GEN)..(B,C);NCP151,NSP150..(GCC,PH,VN)..(B,C);NCP151,NSP150..LHD..GEN..(D,R)..B Production:2013-07 – 2018-07
82660-0D040 BLOCK ASSY, RELAY, ENGINE ROOM 1
Note:NCP15#,NSP150,151..B,C Production:2013-04 – …
82741-0D100 BLOCK, ENGINE ROOM RELAY 1
Note:NCP15#,NSP150,151..B,C Production:2013-04 – …
— Part does not apply to this vehicle configuration. 82660F —
82616-58010 PULLER, FUSE 1
Note:NCP15#..C;NSP150,151..B,C Production:2013-12 – …
— Part does not apply to this vehicle configuration. 82660G —
90178-T0018 standard —
91671-80620 standard —
90119-T0283 standard —
Replacements:91671-80620 (fitment: unknown)

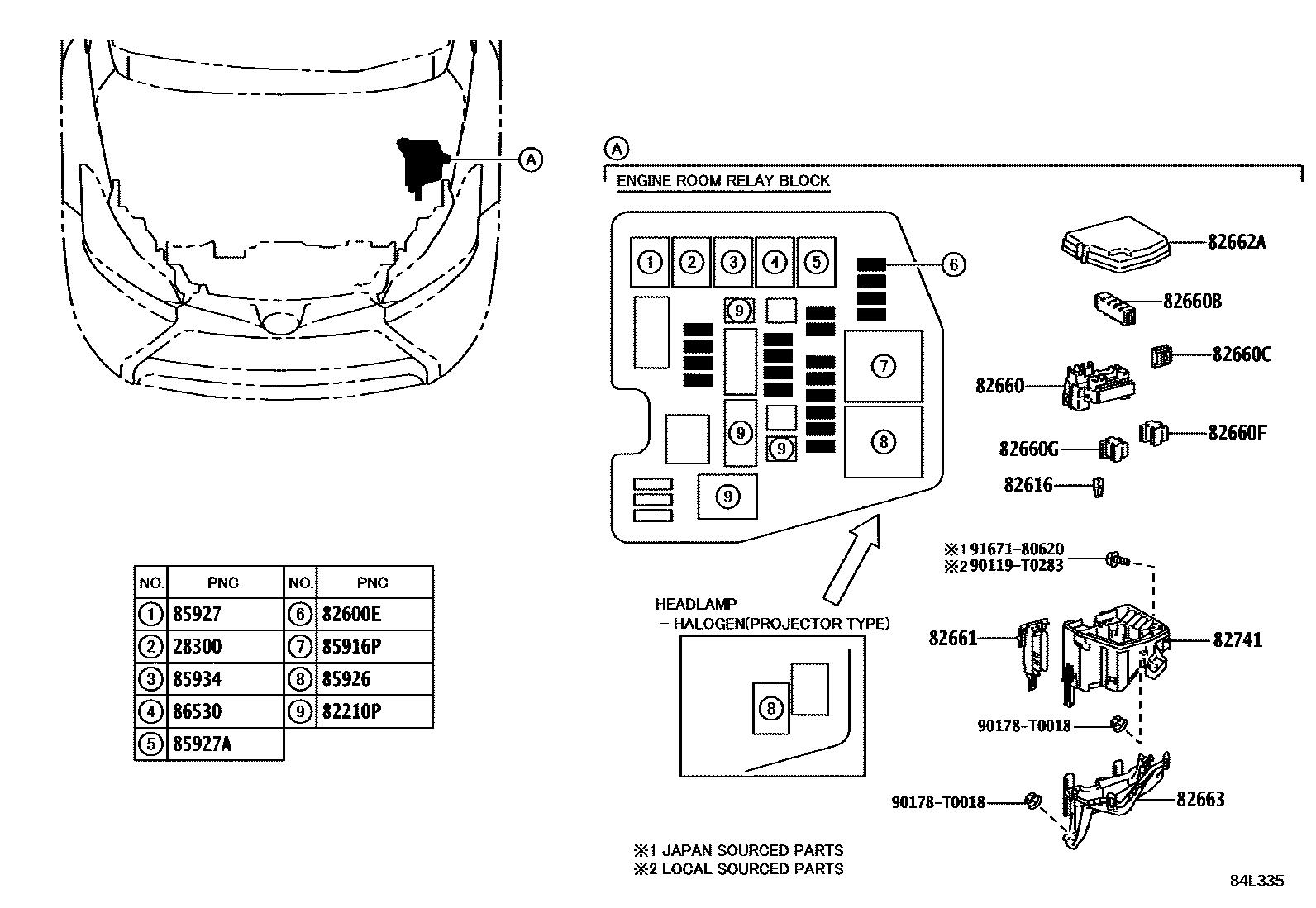

Diagram

27 parts
Toyota Yaris-Vios-Limo 2016 — Switch & Relay & Computer
