General 2006 HILUX KUN26R-CRMDYQ3
Catalog: TOYOTA202608 Engine: 3000CC DIESEL TURBO Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: DLX TYPE Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: AUSTRALIA Doors Description: EXTRA CAB Color Code: 040 Trim Code: GJ10 Production: 200502-200808 Model Short: KUN26R-CRMDYQ3 Region: OTHER Native Region: GR

Toyota Hilux 2006 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82741-0K010 BLOCK, ENGINE ROOM RELAY 1
Note:TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) Production:2004-08 – 2012-02
90982-09013 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2004-08 – 2012-02 Spec:30A,MINI FUSE,GRN
90982-09020 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2004-08 – 2012-02 Spec:7.5A,MINI FUSE,BROWN
90982-09021 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2004-08 – 2012-02 Spec:10A,MINI FUSE,RED
90982-09022 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2004-08 – 2012-02 Spec:15A,MINI FUSE,BLUE
90982-09023 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2004-08 – 2012-02 Spec:20A,MINI FUSE,YELLOW
90982-09024 FUSE, FUSE BLOCK 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2004-08 – 2012-02 Spec:25A,MINI FUSE
82620-71010 BLOCK ASSY, FUSIBLE LINK 1
Note:TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..DLX..SA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) Production:2004-08 – 2010-09
82641-71020 RELAY, INTEGRATION NO.1 1
Note:KUN25..SCB..MA;KUN15..XTR..HDCR;KUN26..THDCB..5F;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN26..(SCB,THDCB)..4FC;KUN15..SR..DCR..(PHL,TH);KUN15..LHD..DLX..(PHL,SA);KUN10,16,LAN15,25,35..DCB,SCB;KUN26..(DCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB)..(GCC,GEN,PKN,TH);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA) Production:2004-08 – 2012-02
82663-0K010 COVER, RELAY BLOCK, LOWER 1
Note:TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) Production:2004-08 – 2012-02
82631-0K010 HOLDER ASSY, FUSE 1
Note:TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) Production:2004-08 – 2012-02
82744-0K010 BLOCK, ENGINE ROOM RELAY, NO.2 1
Note:KUN26..THDCB;KUN25..SCB..MA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH) Production:2004-08 – 2012-02
— Part does not apply to this vehicle configuration. 82616 —
82662-0K020 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:KUN26..THDCB;KUN25..SCB..MA;KUN15..DLX..SA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(DLX,SR)..(GCC,GEN,PHL,TH) Production:2004-08 – 2010-09 Spec:MARK 82662-0K020
82662-0K050 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:KUN26..THDCB;KUN25..SCB..MA;KUN15..DLX..SA;KUN16,36..XTR..TH;KUN26..DCB..5F..SA;KUN25..(DCB,XTR)..SR;KUN36..(DCB,SCB)..5F;KUN10,16,LAN15,25,35..DCB,SCB;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(DLX,SR)..(GCC,GEN,PHL,TH) Production:2004-08 – 2010-09 Spec:MARK 82662-0K050
90987-02025 RELAY ASSY, STARTER 1
Note:1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);1KDFTV,2KDFTV,5LE..KUN10,16,LAN15,25,35..DCB,SCB Production:2004-08 – 2012-02
28610-54390 RELAY ASSY, INTAKE HEATER OR GLOW PLUG 1
Note:1KDFTV..KUN26..THDCB;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN16,36..XTR..TH;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;1KDFTV..KUN36..(DCB,SCB)..5F;2KDFTV..KUN15..(DCB,SCB)..(PHL,SA)..CBU;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV..KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);2KDFTV..KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);1KDFTV,2KDFTV,5LE..KUN10,16,LAN15,25,35..DCB,SCB Production:2004-08 – 2012-02 Replacements:28610-27010 (fitment: unknown)
82661-0K010 COVER, RELAY BLOCK, NO.1 1
Note:TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..DLX..SA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN36..DCB..(ANCOM,PHL,SA);TGN26,36..DCB..5F..DLX..(LA,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN15,26..(DCB,SCB,THDCB,XTR)..(DLX,SR)..(ANCOM,GCC,GEN,PHL,TH);GGN15,25,KUN10,LAN15,25,35,TGN10,11,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) Production:2004-08 – 2010-09 Spec:EXCEPT SOUTH AFRICA
82661-0K020 COVER, RELAY BLOCK, NO.1 1
Note:TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN15..DLX..SA;KUN16..DCB,SCB;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15,TGN10..(DCB,SCB,XTR)..(DLX,SR)..(GCC,GEN,IDN,PHL,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) Production:2004-08 – 2010-09 Spec:SOUTH AFRICA
90119-06923 standard —
82715-0K800 standard —

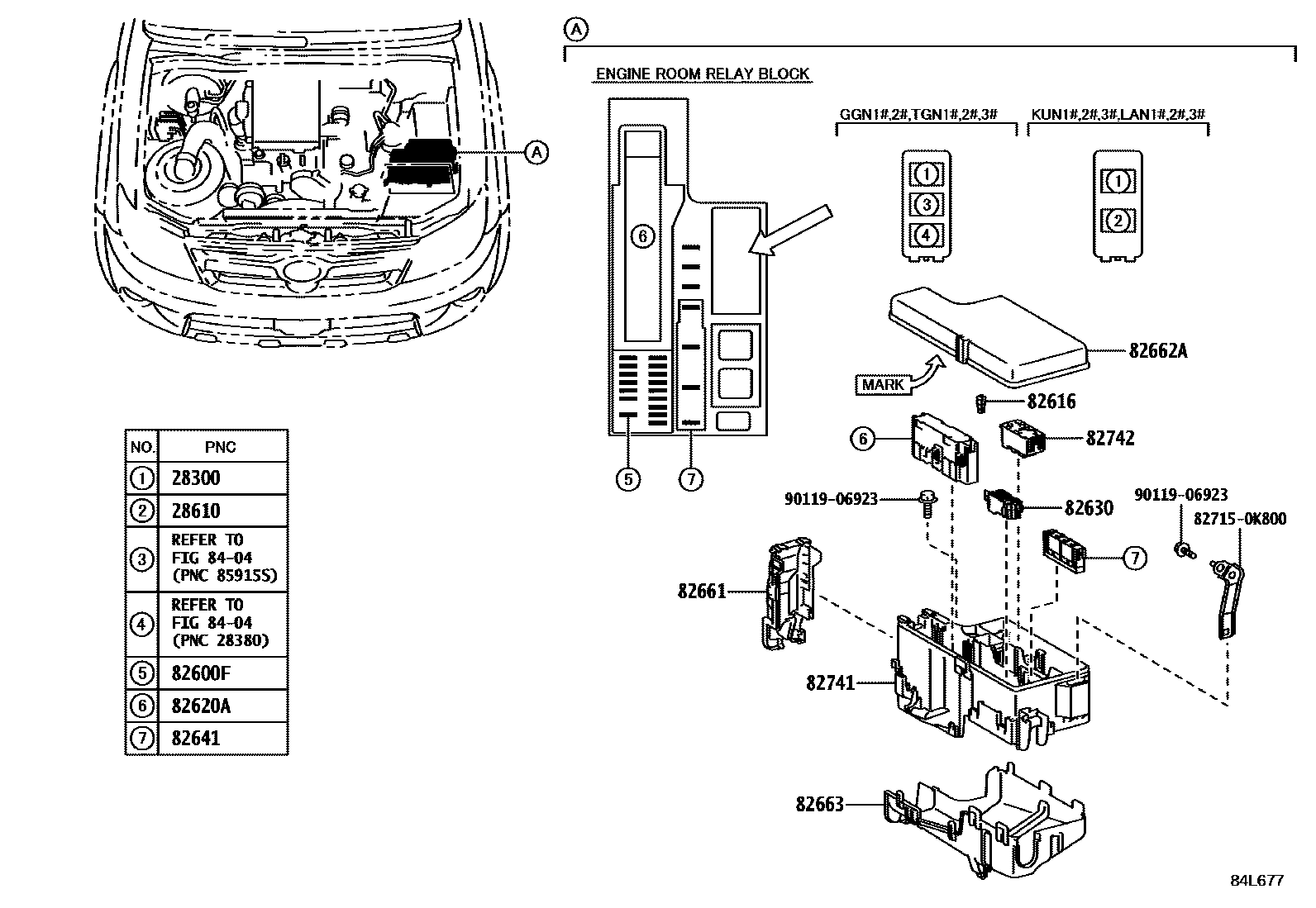

Diagram

20 parts
