Open RegionYearModelModelCode Details
USA / Canada 2013 HILUX KUN26L-HRMDY
Catalog: TOYOTA202608 Engine: 3000CC DIESEL TURBO Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: DLX TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: THAILAND PRODUCED DOUBLE CAB Color Code: 3E5 Trim Code: FZ10 Production: 201107-201504 Model Short: KUN26L-HRMDY Region: NA Native Region: US

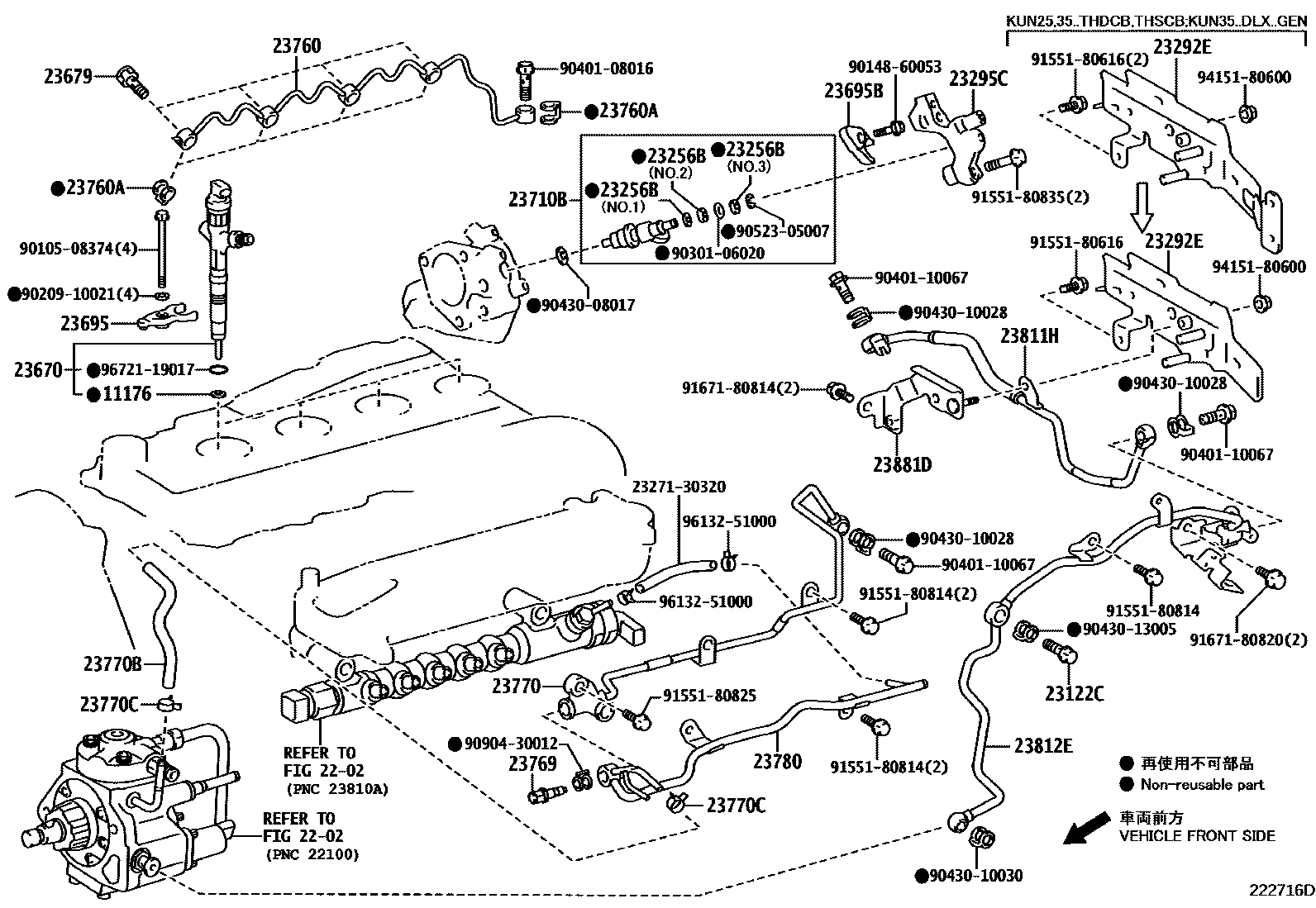

Toyota Hilux 2013 — Injection Nozzle

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
23679-30021 SCREW, INJECTOR FOLLOW 4
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
90904-30013 GASKET 5
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23695-30020 CLAMP, NOZZLE HOLDER, NO.1 4
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23670-39445 INJECTOR ASSY 4
Note:1KDFTV..KUN26..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
11176-30011 SEAT, INJECTION NOZZLE 4
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
96135-51100 CLAMP OR CLIP(FOR FUEL HOSE SET) 2
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23769-26030 VALVE, FUEL CHECK 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23273-30330 HOSE, FUEL 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23760-30020 PIPE ASSY, NOZZLE LEAKAGE 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23770-30140 PIPE ASSY, NOZZLE LEAKAGE, NO.2 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23780-30020 PIPE, NOZZLE LEAKAGE, NO.3 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23811-30080 PIPE, FUEL, NO.1 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23292-30020 PROTECTOR, FUEL HOSE 1
Note:1KDFTV..KUN26..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23881-30060 BRACKET, FUEL HOSE 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
2376A-26030 VALVE, CHECK 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-09 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23812-30020 PIPE, FUEL, NO.2 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23256-74010 RING, FUEL INJECTOR BACK-UP, NO.1 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION),NO.1
23257-74010 RING, FUEL INJECTOR BACK-UP, NO.1 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION),NO.2
23258-28011 RING, FUEL INJECTOR BACK-UP, NO.1 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION),NO.3
23710-30020 INJECTOR ASSY, EXHAUST FUEL ADDITION 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23295-30020 HOLDER, INJECTOR 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
23695-28010 CLAMP, NOZZLE HOLDER, NO.2 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2011-07 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
90904-30012 standard —
90105-08374 standard —
90209-10021 standard —
96721-19017 standard —
90430-10028 standard —
90401-08016 standard —
90401-10067 standard —
96132-51000 standard —
23271-30320 standard —
90430-10030 standard —
90430-13005 standard —
91551-80825 standard —
94151-80600 standard —
91551-80616 standard —
90430-08017 standard —
90301-06020 standard —
90523-05007 standard —
91551-80835 standard —
91671-80814 standard —
91671-80820 standard —
90148-60053 standard —
91551-80814 standard —
