Open RegionYearModelModelCode Details
USA / Canada 2013 HILUX KUN26L-HRMDY
Catalog: TOYOTA202608 Engine: 3000CC DIESEL TURBO Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: DLX TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: THAILAND PRODUCED DOUBLE CAB Color Code: 3E5 Trim Code: FZ10 Production: 201107-201504 Model Short: KUN26L-HRMDY Region: NA Native Region: US

Toyota Hilux 2013 — Exhaust Pipe

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
17410-0L040 PIPE ASSY, EXHAUST, FRONT 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2012-05 – 2015-04 Spec:*114=TOYOTA/ZB3/Y,CHILE SPEC(EURO 5 REGULATION) Spec Note:*114(CATALYST MAKE/CATALYSTID/ONBOARD DIAGNOSIS:YES OR NO(THIS INDICATION COMPLIES WITH EC DIRECTIVE.))=TOYOTA/ZB3/Y,CHILE SPEC(EURO 5 REGULATION)
17451-0C010 GASKET, EXHAUST PIPE 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2012-05 – 2015-04 Replacements:17451-74040 (fitment: unknown) Spec:CHILE SPEC(EURO 5 REGULATION)
17451-0L010 GASKET, EXHAUST PIPE 1
Note:2KDFTV..KUN35..LHD..GEN;1KDFTV,2KDFTV..KUN1#,2#,36;2KDFTV..KUN35..CO,LA,PHL,SA,TH Production:2011-07 – 2016-09 Replacements:17451-67020 (fitment: unknown)
17403-0L102 PIPE ASSY, EXHAUST, CENTER 1
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2013-05 – 2015-04 Spec:CHILE SPEC(EURO 5 REGULATION)
90917-T6002 GASKET, EXHAUST PIPE, CENTER 1
Note:1GRFE..GGN15,25;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ANCOM,ARL,GCC,GEN,IDN,MA,PHL,SA,TH Production:2011-07 – …
17405-0L141 PIPE ASSY, EXHAUST, TAIL 1
Note:2KDFTV..KUN35..DLX..GEN;1KDFTV,2KDFTV..KUN2#..THDCB,THSCB Production:2011-07 – 2015-04
17565-0M010 SUPPORT, EXHAUST PIPE, NO.3 2
Note:1KDFTV,2KDFTV..KUN2#,35..THDCB..5F Production:2012-05 – 2015-04 Replacements:17565-74280 (fitment: unknown) Spec:CHILE SPEC(EURO 5 REGULATION)
17565-0M010 SUPPORT, EXHAUST PIPE, NO.4 3
Note:1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH Production:2011-07 – 2016-09 Replacements:17565-74280 (fitment: unknown)
17565-0M010 SUPPORT, EXHAUST PIPE, NO.5 1
Note:1GRFE..GGN15;1GRFE,1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..GGN25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36..ARL,GCC,GEN,IDN,MA,PHL,PKN,SA,TH Production:2011-07 – 2016-09 Replacements:17565-74280 (fitment: unknown)
90080-50392 standard —
Replacements:90501-35032 (fitment: unknown)
90109-T0005 standard —
94185-61000 standard —
90105-T0095 standard —
Replacements:90105-10388 (fitment: unknown)

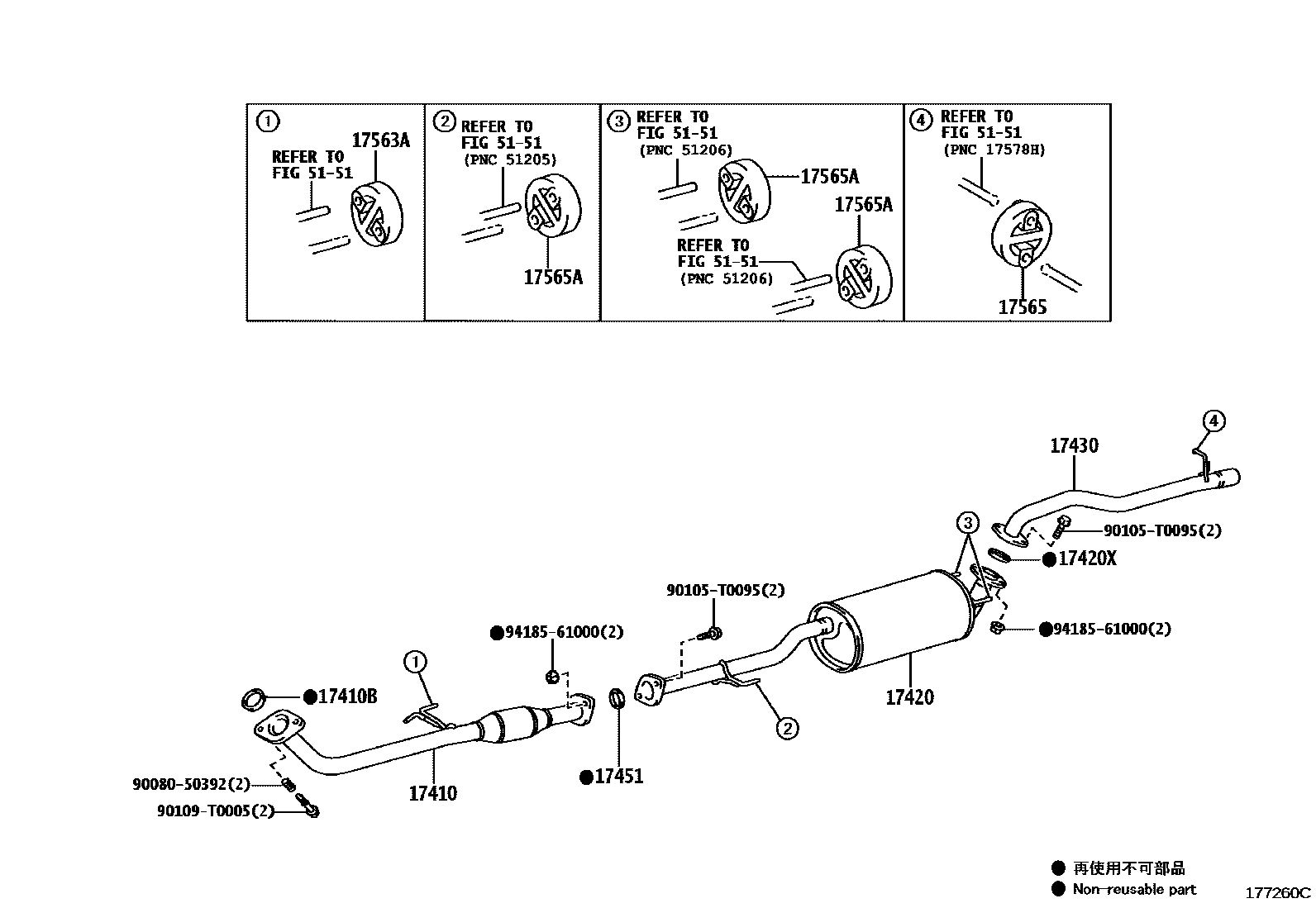

Diagram

13 parts
Toyota Hilux 2013 — Exhaust Pipe
