Open RegionYearModelModelCode Details
USA / Canada 2013 HILUX KUN26L-HRMDY
Catalog: TOYOTA202608 Engine: 3000CC DIESEL TURBO Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: DLX TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Doors Description: THAILAND PRODUCED DOUBLE CAB Color Code: 3E5 Trim Code: FZ10 Production: 201107-201504 Model Short: KUN26L-HRMDY Region: NA Native Region: US

Toyota Hilux 2013 — Mirror

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
87810-06041 MIRROR ASSY, INNER REAR VIEW 1
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-12 – … Spec:TYPE A:REFER ILLUST.
87910-0K411 MIRROR ASSY, OUTER REAR VIEW, RH 1
Note:KUN26..DLX..GEN;KUN25..LHD..DLX..SA;KUN15..DCB..DLX..SA Production:2011-07 – 2015-12 Spec:NO PAINT REQ.,POWER DOOR LOCK-WITH
87940-0K391 MIRROR ASSY, OUTER REAR VIEW, LH 1
Note:KUN26..DLX..GEN;KUN25..LHD..DLX..SA;KUN15..DCB..DLX..SA Production:2011-07 – 2015-12 Spec:NO PAINT REQ.,POWER DOOR LOCK-WITH
— Part does not apply to this vehicle configuration. 87915 —
— Part does not apply to this vehicle configuration. 87945 —
87931-0K070 OUTER MIRROR, RH 1
Note:KUN25..5F..PKN;KUN35..DLX..(GEN,SA);KUN15..DCB..DLX..DCR..(GEN,PHL,SA,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GEN,PHL,PKN,SA,TH);GGN15,25,KUN10,16,2#,LAN15,25,35,TGN10,15,16,26,36..(DCB,SADCB,SCB,THDCB,THSCB,XTR)..(DLX,STD)..(ARL,GEN,IDN,SA,TH) Production:2011-07 – 2016-09
87961-0K050 MIRROR OUTER, LH 1
Note:KUN25..5F..PKN;KUN35..DLX..(GEN,SA);KUN15..DCB..DLX..DCR..(GEN,PHL,SA,TH);KUN15..(SCB,SMT,XTR)..(DLX,STD)..(GEN,PHL,PKN,SA,TH);GGN15,25,KUN10,16,2#,LAN15,25,35,TGN10,15,16,26,36..(DCB,SADCB,SCB,THDCB,THSCB,XTR)..(DLX,STD)..(ARL,GEN,IDN,SA,TH) Production:2011-07 – 2016-09
90178-T0023 standard —

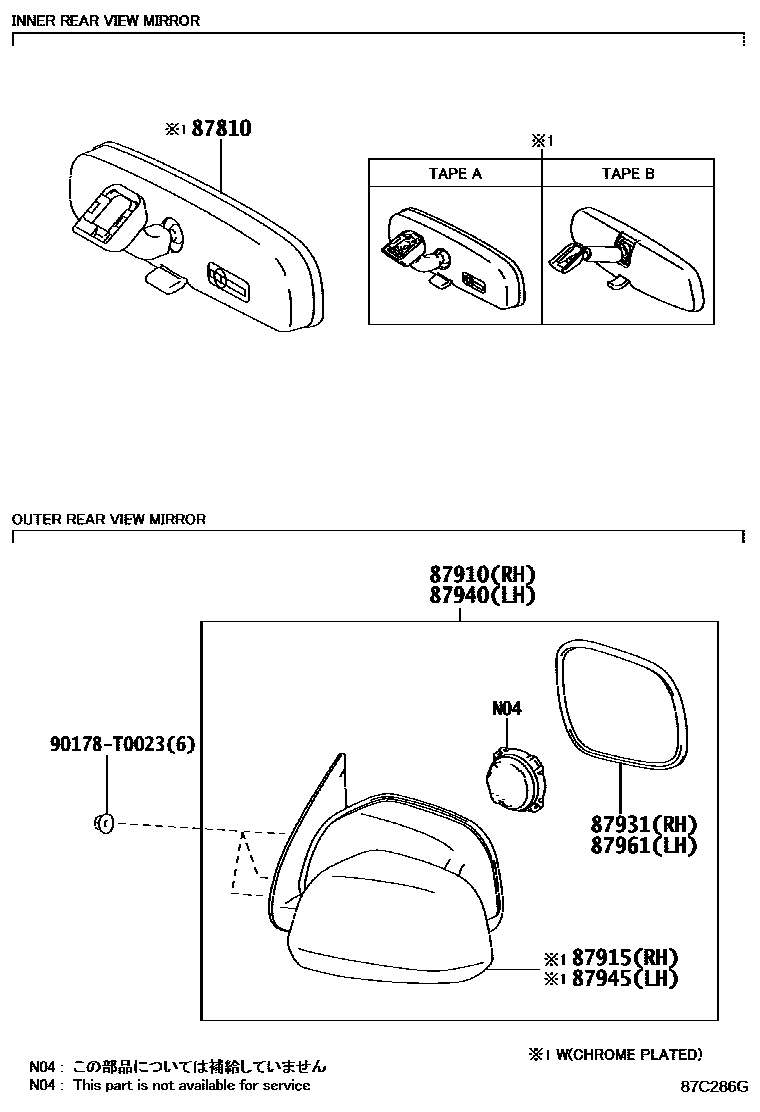

Diagram

6 parts
Toyota Hilux 2013 — Mirror
