Toyota Hilux 2007 — Injection Pump Assembly
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 23742-30020 | CLAMP, INJECTION PIPE, NO.3 | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 Spec:NO.2 | |||
| 23742-58020 | CLAMP, INJECTION PIPE, NO.3 | 2 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 Spec:NO.1 | |||
| 23742-27010 | CLAMP, INJECTION PIPE, NO.2 | 2 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 Spec:NO.1 | |||
| 23742-30010 | CLAMP, INJECTION PIPE, NO.2 | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 Spec:NO.2 | |||
| 23273-30150 | HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) | 1 | |
Note:1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,SA);1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,PHL,TH);1KDFTV,2KDFTV..KUN10,15,36..(DCB,SCB,XTR)..5F..(GCC,GEN,PHL,SA,TH) Production:2004-08 – 2008-12 | |||
| 23271-0L010 | HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | 1 | |
Note:1KDFTV..KUN16..DCB,SCB;1KDFTV..KUN16..XTR..TH;2KDFTV..KUN25..SCB..MA;1KDFTV..KUN26..DCB..5F..SA;2KDFTV..KUN25..(DCB,XTR)..SR;2KDFTV..KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);1KDFTV,2KDFTV..KUN10,15,36..(DCB,SCB,XTR)..5F;1KDFTV..KUN26..(DCB,SCB,THDCB,XTR)..(ARL,GEN,LA,PHL,TH) Production:2004-08 – 2008-12 | |||
| 23810-30100 | RAIL ASSY, COMMON | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 | |||
| 23743-30011 | CLAMP, INJECTION PIPE, NO.4 | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 | |||
| 23701-30060 | PIPE SUB-ASSY, INJECTION, NO.1 | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 | |||
| 23702-30060 | PIPE SUB-ASSY, INJECTION, NO.2 | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 | |||
| 23703-30060 | PIPE SUB-ASSY, INJECTION, NO.3 | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 | |||
| 23681-30010 | SEAL, NOZZLE HOLDER | 4 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 | |||
| 23804-30050 | PIPE SUB-ASSY, FUEL INLET | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 | |||
| 23743-30011 | CLAMP, INJECTION PIPE, NO.3 | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 | |||
| 23741-30010 | CLAMP, INJECTION PIPE, NO.1 | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-08 | |||
| 23704-39055 | PIPE SUB-ASSY, INJECTION, NO.4 | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-01 Spec:*163 OR *184 Spec Note:*163(ENGINE NO.=5XXXXXX) OR *184(ENGINE NO.=7XXXXXX) | |||
| 22100-30040 | PUMP ASSY, INJECTION OR SUPPLY | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-01 Replacements:22100-30090 (fitment: unknown) Spec:MARK 22100-30040 | |||
| 04226-30010 | VALVE KIT, SUCTION CONTROL | 1 | |
Note:1KDFTV..KUN16,26..ARL Production:2006-08 – 2008-01 Spec:*507 Spec Note:*507(PNC 22100 = MARK 22100-30040) | |||
| 90466-T0041 | standard | — | |
Replacements:96133-41300 (fitment: unknown) | |||
| 90464-T0004 | standard | — | |
Replacements:90464-00723 (fitment: unknown) | |||
| 90116-06173 | standard | — | |
| 90119-06775 | standard | — | |
| 94151-80600 | standard | — | |
| 90253-13008 | standard | — | |
Replacements:90253-13005 (fitment: unknown) | |||
| 90301-49003 | standard | — | |
| 90179-08022 | standard | — | |
| 91552-81060 | standard | — | |
| 90466-T0045 | standard | — | |
Replacements:96135-41400 (fitment: unknown) | |||
| 91631-G0614 | standard | — | |

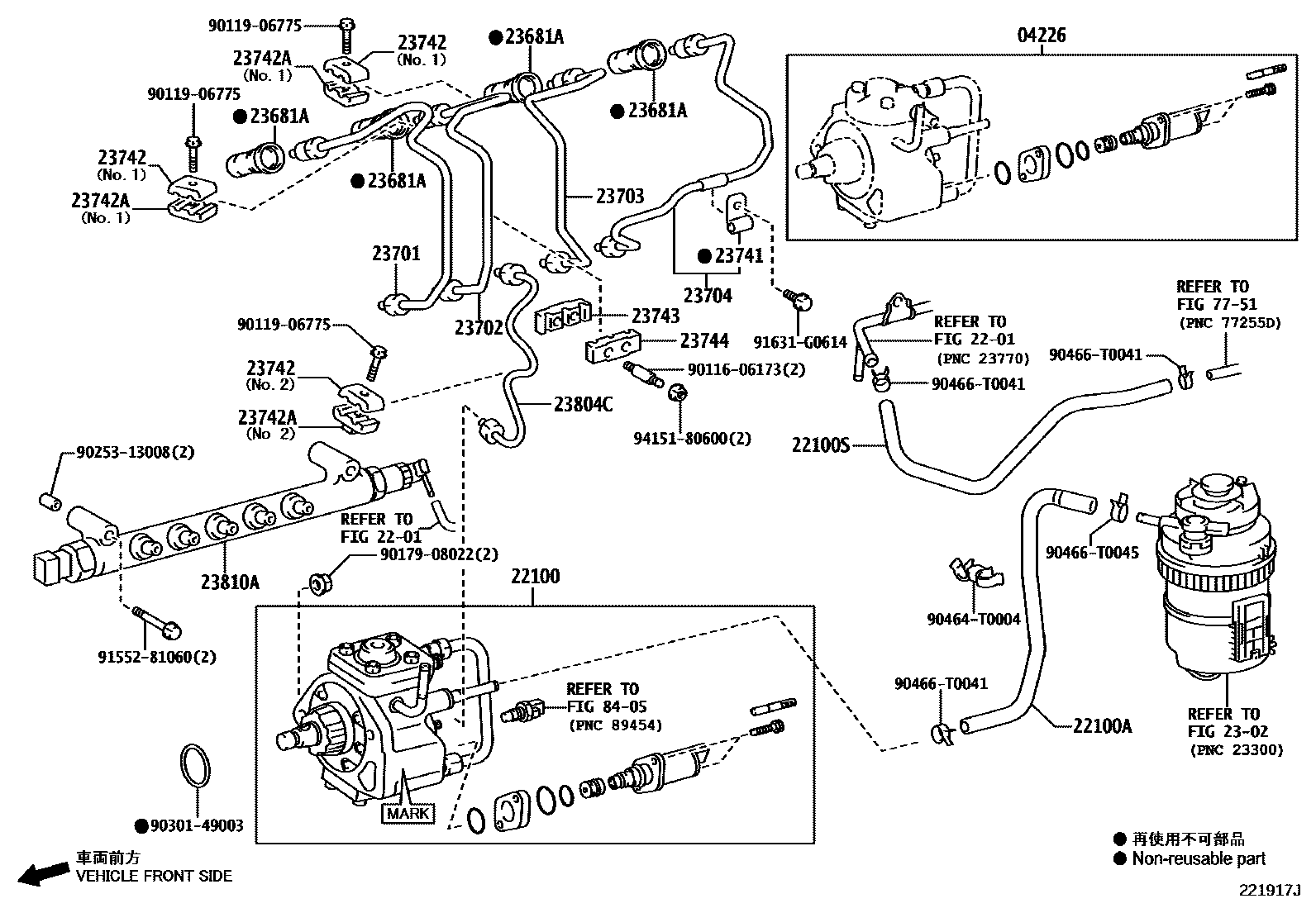

Diagram
29 parts
