Toyota Hilux 2011 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84052-0K020 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:KUN15,25..LHD..SR;KUN25..THDCB,THSCB,XTR;KUN15,25..RHD..(IDN,MA,SA,TH);KUN25,TGN26..4FC..(GCC,GEN,LA,SA);KUN15,25,TGN26..5F..(ANCOM,CO,GCC,LA);TGN16..(DCB,SCB,SMT)..(ARL,GCC,GEN,TH);KUN15,TGN26..(SCB,THDCB)..(HDCR,HTWC)..GEN;GGN15,25,35,KUN10,16,26,3#,TGN10,11,15,36..ANCOM,ARL,CO,GCC,GEN,LA,MA,PHL,SA,TH Production:2011-07 – … Replacements:84052-71010 (fitment: unknown) | |||
| 84450-0K010 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:LAN15,25..LHD;GGN15,25,35,KUN1#,2#,3#,TGN1#,26,36 Production:2011-07 – … | |||
| — | Part does not apply to this vehicle configuration. | 85432 | — |
| 84140-0K021 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:KUN25..SR..IDN;KUN25..RHD..DLX..(GEN,IDN,MA,SA);GGN15,25,KUN1#,26,35,TGN10,15,16,26..RHD..(DLX,STD)..(ARL,GEN,IDN,PKN,SA) Production:2011-07 – 2016-09 | |||
| 84306-0K051 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:GGN25..5FC..SR..ARL;KUN26..DCB..5F..ARL Production:2011-07 – 2013-11 Spec:TYPE A:REFER ILLUST. | |||
| — | Part does not apply to this vehicle configuration. | 84312 | — |
| 84652-0D130 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:KUN26..(4FC,5FC)..IV3;KUN26..DCB..DLX..ARL..CBU;KUN10,16,26,TGN10..SCB..5F..(ARL,IDN);KUN15,25,TGN16,26..RHD..(ARL,GEN,PKN) Production:2011-07 – 2016-07 Replacements:84652-0D131 (fitment: unknown) | |||
| 84652-06230 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:KUN26..(4FC,5FC)..IV3;KUN16,26..SCB..5F..ARL;KUN26..DCB..DLX..ARL..CBU Production:2011-07 – 2015-04 Replacements:84652-06231 (fitment: unknown) Spec:WIRELESS DOOR LOCK-WITH | |||
| — | Part does not apply to this vehicle configuration. | 84250A | — |
| 84247-0K010 | SWITCH, STEERING PAD, LH | 1 | |
Note:KUN15..SR..DCR;KUN26..4FC..DLX..CBU;GGN15..(DCB,XTR)..DLX;GGN25,KUN16,26..(5F,5FC)..DLX..ARL Production:2011-07 – 2013-08 | |||
| 90159-T0007 | standard | — | |
Replacements:90159-50199 (fitment: unknown) | |||
| 90168-T0004 | standard | — | |
Replacements:90168-40129 (fitment: unknown) | |||
| 90159-50199 | standard | — | |

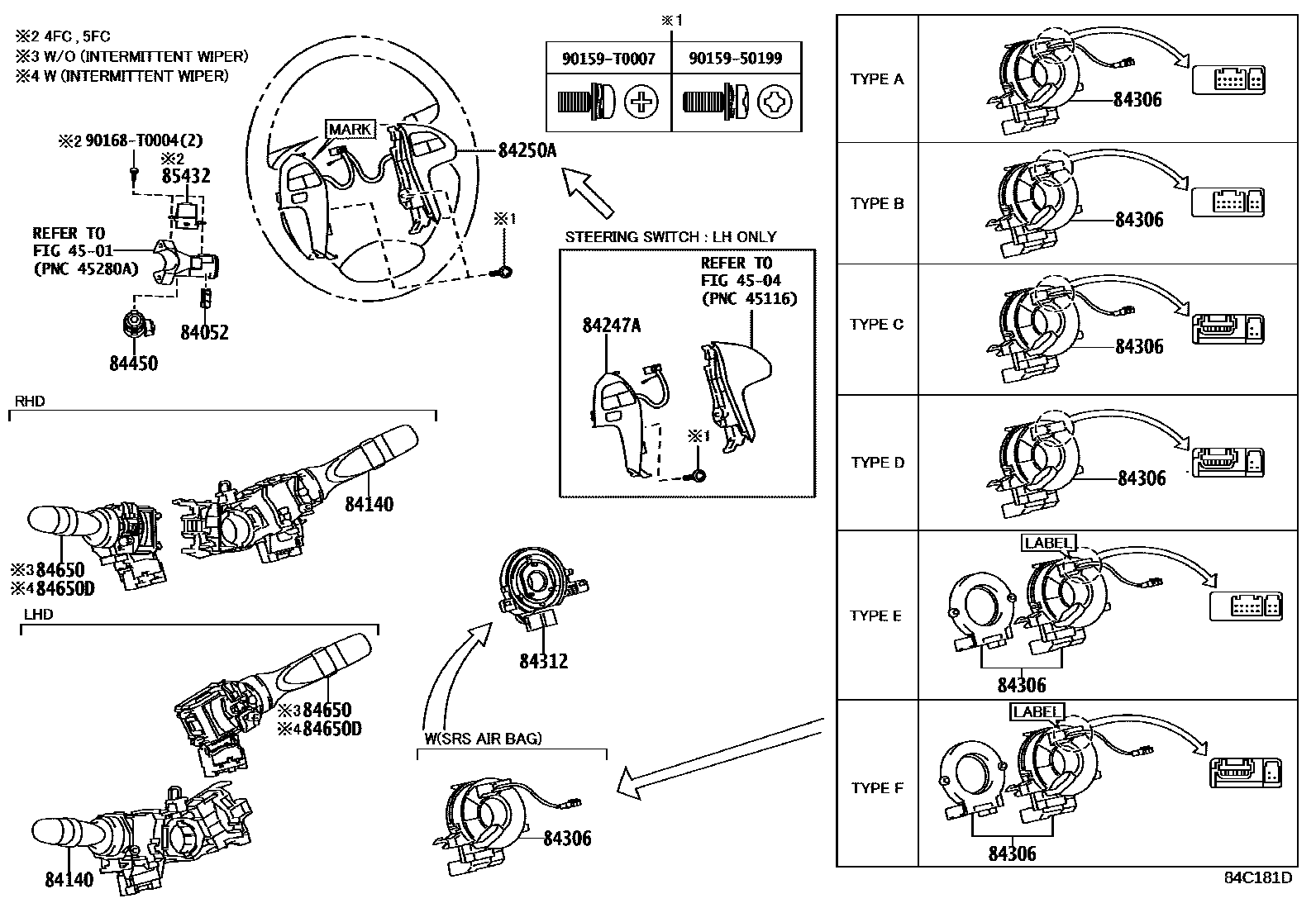

Diagram
10 parts
