Open RegionYearModelModelCode Details
USA / Canada 2014 HILUX TGN16L-PRPSKV
Catalog: TOYOTA202608 Engine: 2700CC 16-VALVE DOHC EFI Transmission Description: ATM, 4-SPEED FLOOR SHIFT Vehicle Grade: SR TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Doors Description: DOUBLE CAB Color Code: 040 Trim Code: FR30 Production: 201107-201504 Model Short: TGN16L-PRPSKV Region: NA Native Region: US

Toyota Hilux 2014 — Antenna

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 8620A —
86101-0K270 CORD SUB-ASSY, ANTENNA 1
Note:KUN15,2#,35,TGN15,16,26,36..LHD..(DCB,THDCB,XTR)..(GCC,GEN,PHL) Production:2011-07 – 2015-04
86101-0KD40 CORD SUB-ASSY, ANTENNA, NO.2 1
Note:GGN25..5FC..DLX;KUN26..(DCB,THDCB)..5F..(GEN,PHL,TH);KUN3#,TGN16..(DCB,THDCB)..(GCC,GEN,PHL,TH);KUN16,26..(DCB,THDCB)..(4FC,5FC)..(ARL,GEN,PHL,TH);GGN15,25,KUN15,25,TGN15,26,36..(DCB,THDCB)..(4FC,5F)..(ARL,GCC,GEN,IDN,PHL,TH) Production:2013-08 – 2015-04
86309-68020 POLE SUB-ASSY, ROOF ANTENNA 1
Note:TGN36..SR;GGN25..5FC..DLX;KUN35..CO,GEN,PHL,SA,TH;KUN15,25,TGN16..SCB..SA;TGN36..(DCB,THDCB)..DLX;GGN15,KUN16,26..XTR..ARL;KUN26,35..DCB..5F..(HDCR,IART)..LA;KUN26..(DCB,SADCB,THDCB)..(4FC,5FC);KUN26..5F..DCR..(CO,GEN,LA,PHL,SA,TH);TGN26..(DCB,THDCB)..(ANCOM,CO,GCC,GEN,LA);KUN16,TGN16..(DCB,SMT,XTR)..(GCC,GEN,SA,TH);GGN25,35,KUN36,LAN15,25,35,TGN15..ANCOM,GEN,LA,SA,TH;GGN15,25,KUN15,25,TGN15..(DCB,SMT,THDCB,XTR)..(4FC,5F)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) Production:2011-07 – …
86396-20040 NUT, ANTENNA 1
Note:TGN36..SR;GGN25..5FC..DLX;KUN35..CO,GEN,PHL,SA,TH;KUN15,25,TGN16..SCB..SA;TGN36..(DCB,THDCB)..DLX;GGN15,KUN16,26..XTR..ARL;KUN26,35..DCB..5F..(HDCR,IART)..LA;KUN26..(DCB,SADCB,THDCB)..(4FC,5FC);KUN26..5F..DCR..(CO,GEN,LA,PHL,SA,TH);TGN26..(DCB,THDCB)..(ANCOM,CO,GCC,GEN,LA);KUN16,TGN16..(DCB,SMT,XTR)..(GCC,GEN,SA,TH);GGN25,35,KUN36,LAN15,25,35,TGN15..ANCOM,GEN,LA,SA,TH;GGN15,25,KUN15,25,TGN15..(DCB,SMT,THDCB,XTR)..(4FC,5F)..(ARL,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) Production:2011-07 – …
86300-71090 ANTENNA ASSY, W/HOLDER 1
Note:GGN25..5FC..DLX;TGN26..DLX..HTWCF;TGN26,36..SR..HTWC..LA;KUN26..LHD..DCB..5FC..DCR;KUN26..(DCB,SADCB,THDCB)..5F..(GEN,PHL,SA,TH);GGN15,25,TGN26..(DCB,THDCB)..(4FC,5F)..(ANCOM,ARL,GCC,GEN);KUN26..(DCB,SADCB,THDCB)..(4FC,5FC)..(ARL,GEN,MA,PHL,SA,TH);GGN25,35,KUN15,16,25,3#,LAN15,25,35,TGN15,16,36..(DCB,THDCB)..(ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH) Production:2012-08 – …
82711-1A750 standard —
90105-T0050 standard —
Replacements:91551-80608 (fitment: unknown)
90119-06915 standard —

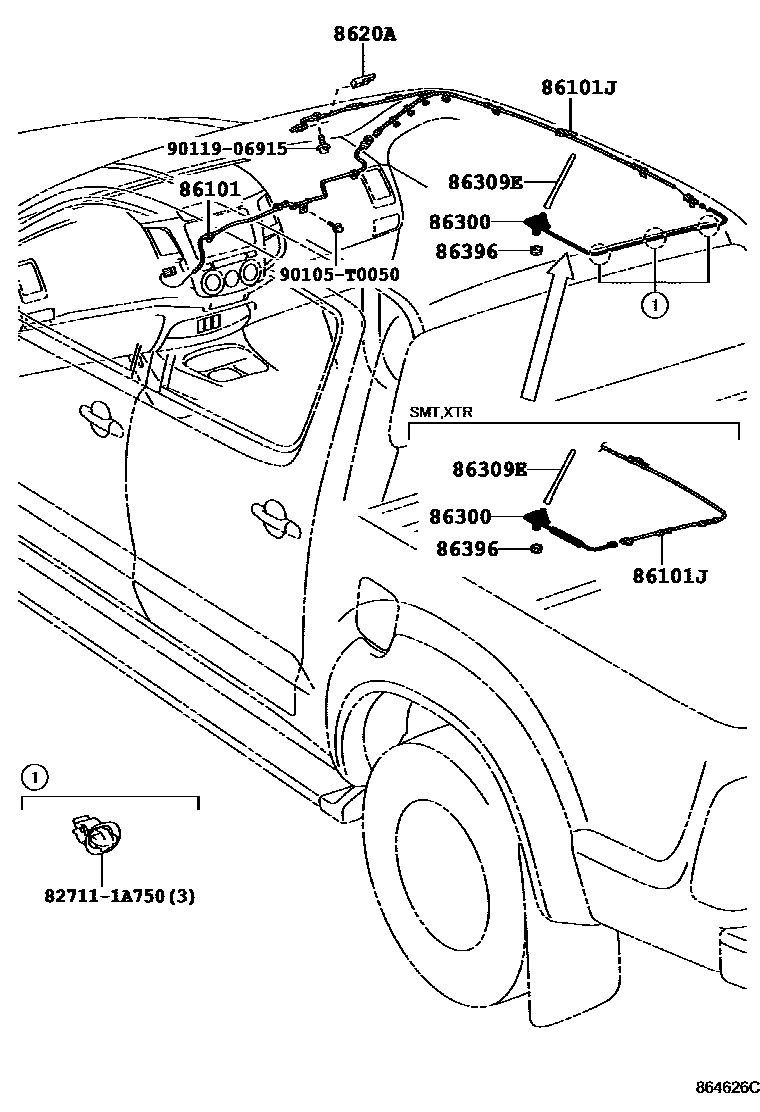

Diagram

8 parts
Toyota Hilux 2014 — Antenna
