Toyota Hilux 2010 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82741-0K010 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:TGN36..4FC..SR;KUN25..RHD..DLX;KUN26..LHD..SR..(GEN,LA);GGN25,TGN15..ANCOM,ARL,GEN,LA;KUN15,LAN15,25..RHD..(DLX,SR);GGN25,TGN16..(4FC,5FC)..(SA,TH);KUN15,TGN16..(DLX,SR)..(ARL,PHL);KUN25,36,TGN10..(SR,STD)..(IDN,LA,SA,TH);GGN15,35,KUN16,26,35,LAN35..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,PHL,SA,TH) Production:2008-08 – 2012-04 | |||
| 90982-09013 | FUSE, FUSE BLOCK | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2008-08 – 2012-04 Spec:30A,MINI FUSE,GRN | |||
| 90982-09020 | FUSE, FUSE BLOCK | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2008-08 – 2012-04 Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | FUSE, FUSE BLOCK | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2008-08 – 2012-04 Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | FUSE, FUSE BLOCK | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2008-08 – 2012-04 Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | FUSE, FUSE BLOCK | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2008-08 – 2012-04 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | FUSE, FUSE BLOCK | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2008-08 – 2012-04 Spec:25A,MINI FUSE | |||
| 82620-71012 | BLOCK ASSY, FUSIBLE LINK | 1 | |
Note:GGN25..ARL;KUN35..DLX;TGN15..GCC,SA;GGN25..5FC..SA;TGN36..4FC..DLX;TGN36..ANCOM..IV3;TGN26..ANCOM..CBU;TGN16..DCB,SCB,XTR;KUN35..SR..(PHL,TH);TGN36..LHD..5F..CBU;TGN26..LHD..(GCC,GEN,LA,SA);KUN26,36..ARL,GEN,IDN,LA,PHL,TH;GGN15,35,KUN1#,25,LAN15,25,35,TGN10,11..ANCOM,ARL,GCC,GEN,IDN,LA,MA,PHL,SA,TH Production:2008-08 – 2010-08 | |||
| 82641-71010 | RELAY, INTEGRATION NO.1 | 1 | |
Note:GGN25..5FC..SA;TGN36..4FC..SR;GGN15,35,TGN16..RHD..(ARL,SA);GGN25,TGN15..ANCOM,ARL,GEN,LA;TGN10,16..RHD..(SCB,SMT)..(SR,STD) Production:2008-08 – 2012-04 | |||
| 82663-0K010 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:TGN36..4FC..SR;KUN25..RHD..DLX;KUN26..LHD..SR..(GEN,LA);GGN25,TGN15..ANCOM,ARL,GEN,LA;KUN15,LAN15,25..RHD..(DLX,SR);GGN25,TGN16..(4FC,5FC)..(SA,TH);KUN15,TGN16..(DLX,SR)..(ARL,PHL);KUN25,36,TGN10..(SR,STD)..(IDN,LA,SA,TH);GGN15,35,KUN16,26,35,LAN35..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,PHL,SA,TH) Production:2008-08 – 2012-04 | |||
| 82631-0K010 | HOLDER ASSY, FUSE | 1 | |
Note:TGN36..4FC..SR;KUN25..RHD..DLX;KUN26..LHD..SR..(GEN,LA);GGN25,TGN15..ANCOM,ARL,GEN,LA;KUN15,LAN15,25..RHD..(DLX,SR);GGN25,TGN16..(4FC,5FC)..(SA,TH);KUN15,TGN16..(DLX,SR)..(ARL,PHL);KUN25,36,TGN10..(SR,STD)..(IDN,LA,SA,TH);GGN15,35,KUN16,26,35,LAN35..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,PHL,SA,TH) Production:2008-08 – 2012-04 | |||
| 82660-0C040 | BLOCK, ENGINE ROOM RELAY, NO.2 | 1 | |
Note:GGN25..5FC..SA;TGN36..4FC..SR;GGN15,35,TGN16..RHD..(ARL,SA);GGN25,TGN15..ANCOM,ARL,GEN,LA;TGN10,16..RHD..(SCB,SMT)..(SR,STD) Production:2008-08 – 2012-04 | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:TGN36..4FC..SR;KUN25..RHD..DLX;KUN26..LHD..SR..(GEN,LA);GGN25,TGN15..ANCOM,ARL,GEN,LA;KUN15,LAN15,25..RHD..(DLX,SR);GGN25,TGN16..(4FC,5FC)..(SA,TH);KUN15,TGN16..(DLX,SR)..(ARL,PHL);KUN25,36,TGN10..(SR,STD)..(IDN,LA,SA,TH);GGN15,35,KUN16,26,35,LAN35..(DCB,SCB,SMT,XTR)..(ARL,GEN,IDN,PHL,SA,TH) Production:2008-08 – 2012-04 | |||
| 82662-0K011 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:TGN16..XTR;GGN15..SCB,XTR;GGN15..DCB..DLX;TGN16..ARL,GCC,TH;GGN15..DCB..5FC..SR;GGN25..DCB..(ANCOM,ARL,LA);TGN10,11,15,26,36..ANCOM,GCC,GEN,IDN,LA Production:2009-01 – … | |||
| 28300-0L010 | RELAY ASSY, STARTER | 1 | |
Note:2TRFE..TGN16..XTR;1GRFE..GGN15..SCB,XTR;1GRFE..GGN15..DCB..DLX;2TRFE..TGN16..ARL,GCC,TH;2TRFE..TGN26..ANCOM..CBU;2TRFE..TGN36..ANCOM..IV3;1GRFE..GGN15..DCB..5FC..SR;1TRFE,2TRFE..TGN10,11,15,26..GCC,GEN,IDN,LA;1GRFE,2TRFE..GGN25,TGN36..(DCB,SCB)..(ANCOM,ARL,LA)..CBU Production:2008-08 – … Replacements:28300-0L011 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 28610 | — |
| 82661-0K010 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:TGN10..IV3;GGN15..SCB,XTR;KUN26..4FC..TH;GGN15,25..DCB..DLX;GGN15,25..DCB..5FC..SR..ARL;KUN16,26,TGN16..RHD..(ARL,GEN) Production:2009-08 – … | |||
| 90119-06923 | standard | — | |
| 82715-0K800 | standard | — | |

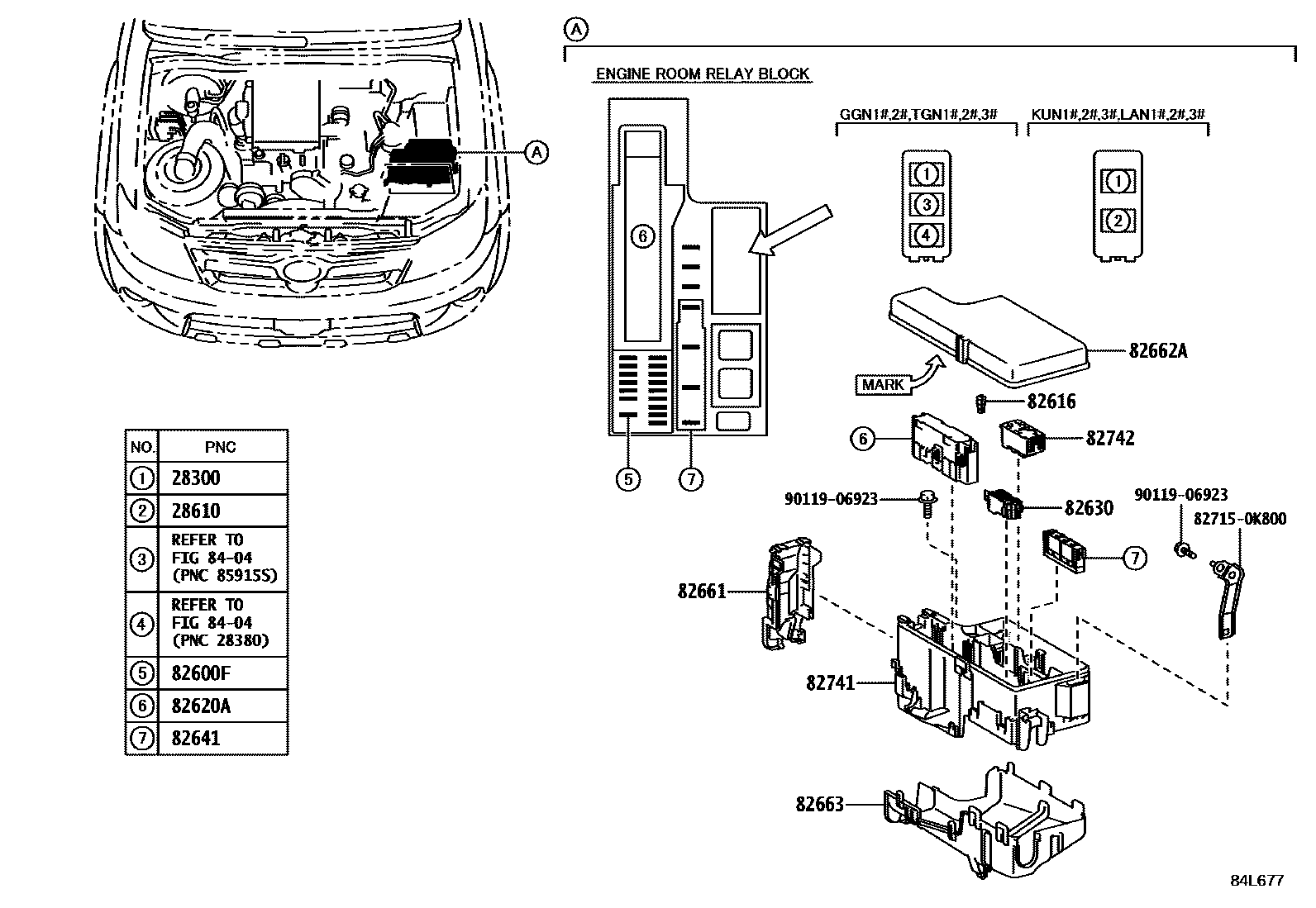

Diagram
18 parts
