Open RegionYearModelModelCode Details
USA / Canada 2014 HILUX KUN35L-PRMSHM
Catalog: TOYOTA202608 Engine: 2500CC DIESEL TURBO Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: SR TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: PHILIPPINES Doors Description: DOUBLE CAB Color Code: 1C0 Trim Code: FD40 Production: 201107-201504 Model Short: KUN35L-PRMSHM Region: NA Native Region: US

Toyota Hilux 2014 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 28380A —
83390-30100 SWITCH ASSY, VACUUM WARNING 1
Note:KUN36..RHD;KUN1#,25,35;KUN26,36..DLX..DCR..LA;KUN26,LAN15,25..LHD..(DEFI,IART);KUN26..4FC..(ARL,CO,GEN,MA,PHL,SA);KUN26..(5F,5FC)..(CO,GEN,PHL,SA,TH) Production:2011-07 – 2016-09
— Part does not apply to this vehicle configuration. 83320B —
— Part does not apply to this vehicle configuration. 28551 —
— Part does not apply to this vehicle configuration. 28559 —
— Part does not apply to this vehicle configuration. 28559A —
90119-T0037 standard —
Replacements:91621-J0612 (fitment: unknown)
90119-06915 standard —
90178-T0018 standard —

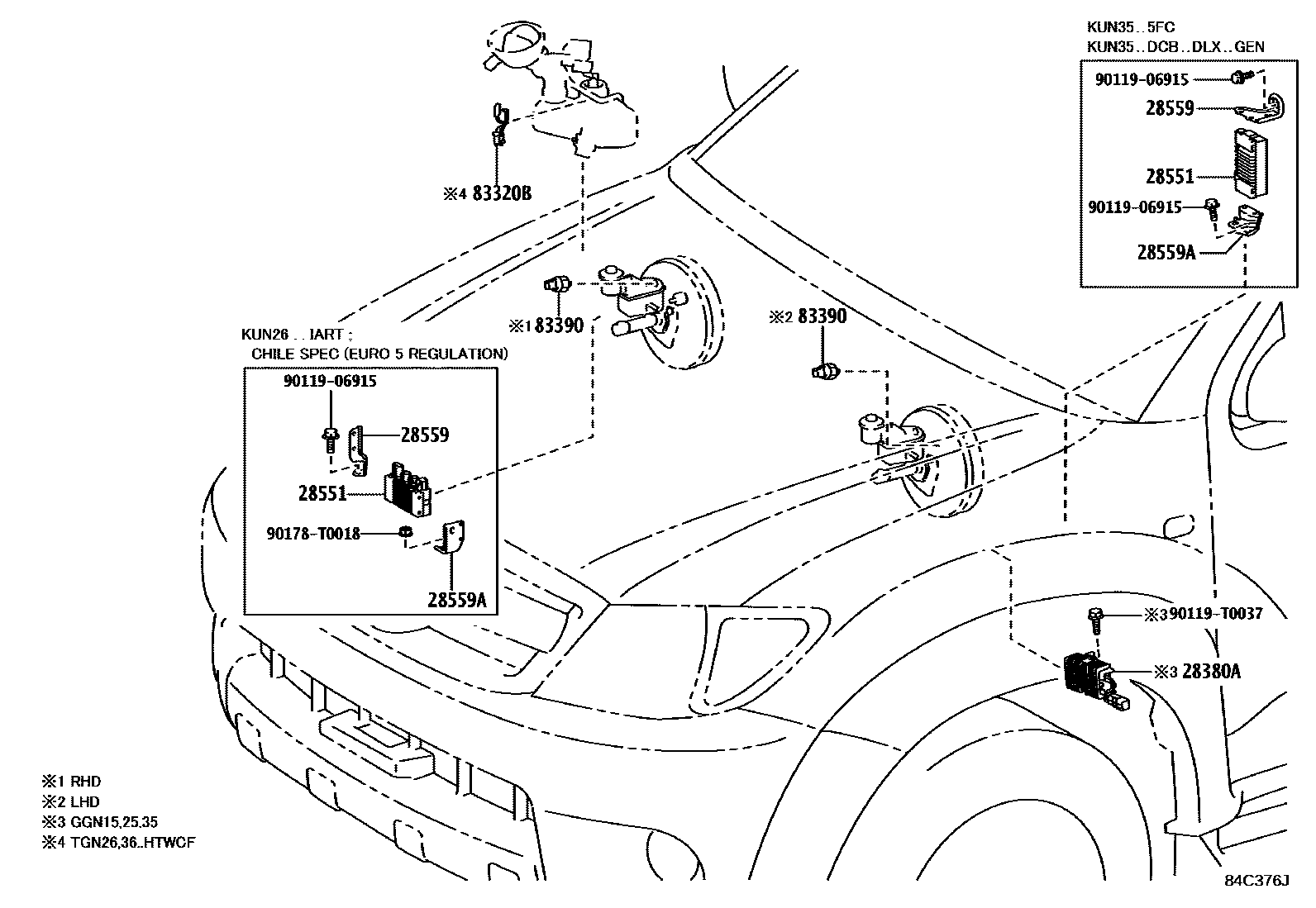

Diagram

4 parts
Toyota Hilux 2014 — Switch & Relay & Computer
