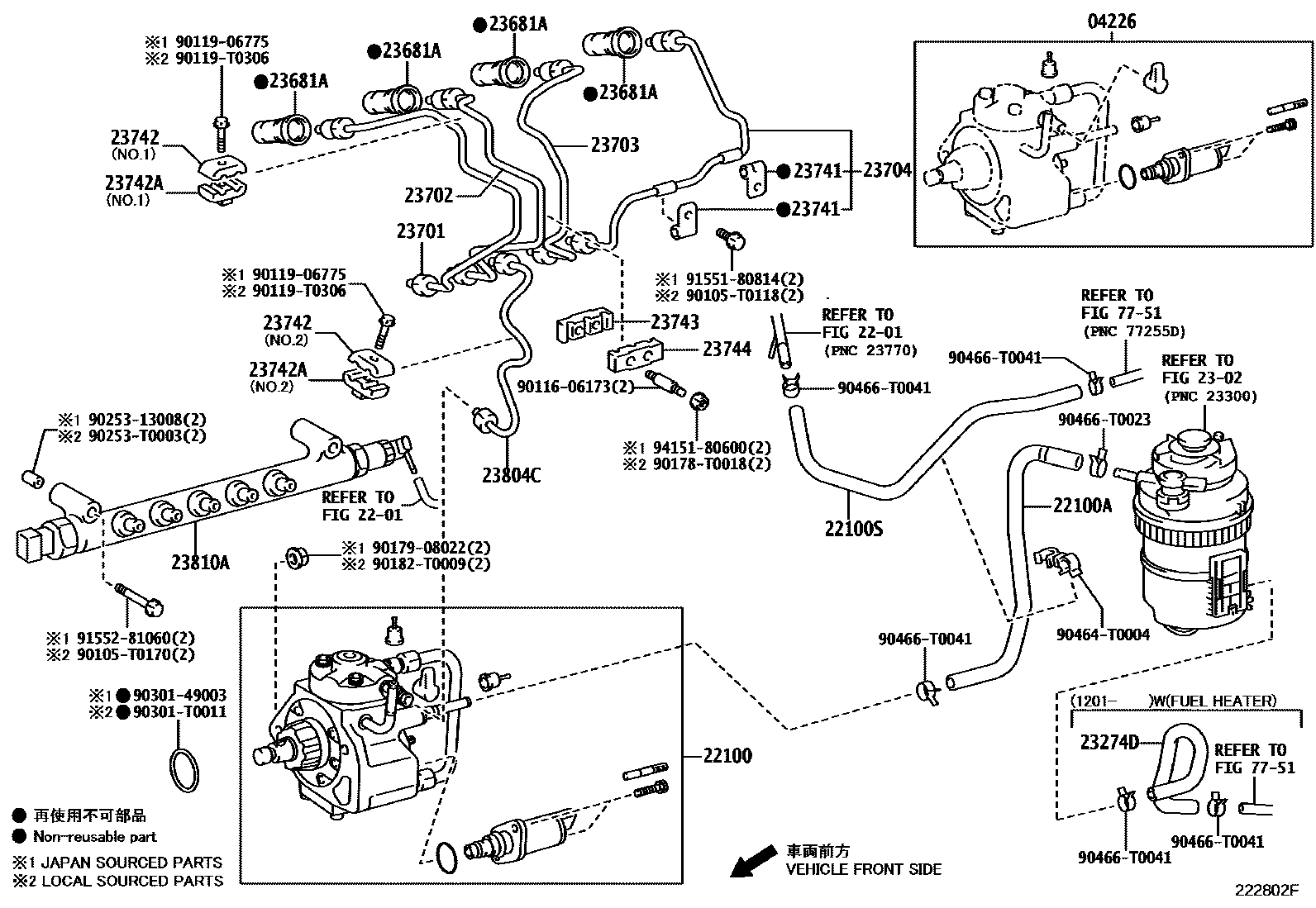

Toyota Hilux 2012 — Injection Pump Assembly

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
23273-30250 HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE) 1
Note:2KDFTV..KUN35..5F..(CO,GEN,PHL,SA,TH);1KDFTV,2KDFTV..KUN1#,2#,36..ARL,CO,GCC,GEN,IDN,MA,PHL,PKN,SA,TH Production:2011-07 – 2013-03
23271-0L060 HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) 1
Note:1KDFTV,2KDFTV..KUN1#,2#,3#..DCR,HDCR Production:2011-07 – 2016-09
23743-0L040 CLAMP, INJECTION PIPE, NO.4 1
Note:2KDFTV..KUN25;1KDFTV..KUN36..5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN3#..CO,LA,PHL,SA;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;1KDFTV..KUN26..5F..DCR..(CO,LA,PHL,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV..KUN26..(4FC,5FC)..DCR..(CO,LA,MA,PHL,SA,TH) Production:2012-10 – 2016-09 Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
23743-30011 CLAMP, INJECTION PIPE, NO.4 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR;2KDFTV..KUN15,25..HDCR..(GCC,GEN,MA,PKN,SA) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
23701-0L010 PIPE SUB-ASSY, INJECTION, NO.1 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN10,15..DCR;1KDFTV..KUN36..5F..SA;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN Production:2011-07 – 2016-09 Replacements:23701-30050 (fitment: unknown) Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
23701-30050 PIPE SUB-ASSY, INJECTION, NO.1 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
23702-0L010 PIPE SUB-ASSY, INJECTION, NO.2 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN10,15..DCR;1KDFTV..KUN36..5F..SA;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN Production:2011-07 – 2016-09 Replacements:23702-30050 (fitment: unknown) Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
23702-30050 PIPE SUB-ASSY, INJECTION, NO.2 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
23703-0L010 PIPE SUB-ASSY, INJECTION, NO.3 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN10,15..DCR;1KDFTV..KUN36..5F..SA;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN Production:2011-07 – 2016-09 Replacements:23703-30050 (fitment: unknown) Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
23703-30050 PIPE SUB-ASSY, INJECTION, NO.3 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
23704-09015 PIPE SUB-ASSY, INJECTION, NO.4 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN10,15..DCR;1KDFTV..KUN36..5F..SA;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN Production:2011-07 – 2016-09 Replacements:23704-39075 (fitment: unknown) Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
23704-39075 PIPE SUB-ASSY, INJECTION, NO.4 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
23681-0L010 SEAL, NOZZLE HOLDER 4
Note:2KDFTV..KUN25;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN35..CO,LA,PHL,SA;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..DCR..(CO,GCC,IDN,LA,MA,PHL,SA,TH) Production:2011-07 – 2016-09 Replacements:23681-30010 (fitment: unknown) Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
23681-30010 SEAL, NOZZLE HOLDER 4
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR;2KDFTV..KUN15,25..HDCR..(GCC,GEN,MA,PKN,SA) Production:2011-07 – 2016-09 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
23741-0L020 CLAMP, INJECTION PIPE, NO.1 2
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN10,15..DCR;1KDFTV..KUN36..5F..SA;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..MA,PHL,SA;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN26..4FC..(CO,TH);1KDFTV..KUN16..(4FC,5F)..TH;2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN Production:2011-07 – 2016-09 Replacements:23741-30020 (fitment: unknown) Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
23741-30020 CLAMP, INJECTION PIPE, NO.1 2
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
23743-0L040 CLAMP, INJECTION PIPE, NO.3 1
Note:2KDFTV..KUN25;1KDFTV..KUN36..5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN3#..CO,LA,PHL,SA;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;1KDFTV..KUN26..5F..DCR..(CO,LA,PHL,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV..KUN26..(4FC,5FC)..DCR..(CO,LA,MA,PHL,SA,TH) Production:2012-10 – 2016-09 Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
23743-30011 CLAMP, INJECTION PIPE, NO.3 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR;2KDFTV..KUN15,25..HDCR..(GCC,GEN,MA,PKN,SA) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
23804-0L010 PIPE SUB-ASSY, FUEL INLET 1
Note:2KDFTV..KUN25;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN35..CO,LA,PHL,SA;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV..KUN26,36..5F..DCR..(CO,LA,PHL,SA);1KDFTV..KUN26,36..(4FC,5FC)..DCR..(CO,LA,MA,PHL,SA,TH) Production:2011-07 – 2016-09 Replacements:23804-30050 (fitment: unknown) Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
23804-30050 PIPE SUB-ASSY, FUEL INLET 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR;2KDFTV..KUN15,25..HDCR..(GCC,GEN,MA,PKN,SA) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
23742-0L100 CLAMP, INJECTION PIPE, NO.3 1
Note:2KDFTV..KUN35..DLX..SA;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN25..GCC,GEN,PKN,SA;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..4FC..(CO,LA,TH);2KDFTV..KUN15..RHD..(GEN,PKN,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,26,36..GCC,IDN,MA,PHL,SA;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN Production:2012-10 – 2016-09 Replacements:23742-0L021 (fitment: unknown) Spec:*130,NO.1 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****),NO.1
23742-0L120 CLAMP, INJECTION PIPE, NO.3 1
Note:2KDFTV..KUN25;1KDFTV..KUN36..5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN3#..CO,LA,PHL,SA;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;1KDFTV..KUN26..5F..DCR..(CO,LA,PHL,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV..KUN26..(4FC,5FC)..DCR..(CO,LA,MA,PHL,SA,TH) Production:2012-10 – 2016-09 Replacements:23742-0L060 (fitment: unknown) Spec:*130,NO.2 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****),NO.2
23742-30020 CLAMP, INJECTION PIPE, NO.3 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR;2KDFTV..KUN15,25..HDCR..(GCC,GEN,MA,PKN,SA) Production:2011-07 – 2016-10 Spec:*360,NO.2 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX),NO.2
23742-58020 CLAMP, INJECTION PIPE, NO.3 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) Production:2011-07 – 2016-10 Spec:*360,NO.1 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX),NO.1
23742-0L090 CLAMP, INJECTION PIPE, NO.2 1
Note:2KDFTV..KUN35..DLX..SA;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN25..GCC,GEN,PKN,SA;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..4FC..(CO,LA,TH);2KDFTV..KUN15..RHD..(GEN,PKN,SA);1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV,2KDFTV..KUN10,26,36..GCC,IDN,MA,PHL,SA;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN Production:2012-10 – 2016-09 Spec:*130,NO.1 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****),NO.1
23742-0L110 CLAMP, INJECTION PIPE, NO.2 1
Note:2KDFTV..KUN25;1KDFTV..KUN36..5FC;2KDFTV..KUN15..DLX..DCR;2KDFTV..KUN35..5F..SR..(GEN,TH);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN15,35..(THDCB,XTR)..GEN;1KDFTV,2KDFTV..KUN3#..CO,LA,PHL,SA;1KDFTV,2KDFTV..KUN10,16..GCC,IDN,TH;1KDFTV..KUN26..5F..DCR..(CO,LA,PHL,SA);2KDFTV..KUN15..(DCB,SCB,XTR)..(SR,STD);1KDFTV..KUN26..LHD..(DCB,THDCB)..5F..GEN;1KDFTV..KUN26..(4FC,5FC)..DCR..(CO,LA,MA,PHL,SA,TH) Production:2012-10 – 2016-09 Replacements:23742-0L050 (fitment: unknown) Spec:*130,NO.2 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****),NO.2
23742-27010 CLAMP, INJECTION PIPE, NO.2 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) Production:2011-07 – 2016-10 Spec:*360,NO.1 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX),NO.1
23742-30010 CLAMP, INJECTION PIPE, NO.2 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..PHL,SA;2KDFTV..KUN35..LHD..GEN;1KDFTV..KUN36..5F..(GEN,SA);1KDFTV..KUN26..ARL,GEN,MA,PHL,SA;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR;2KDFTV..KUN15,25..HDCR..(GCC,GEN,MA,PKN,SA) Production:2011-07 – 2016-10 Spec:*360,NO.2 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX),NO.2
04226-0L020 VALVE KIT, SUCTION CONTROL 1
Note:2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..DCR..(CO,GCC,IDN,LA,MA,PHL,SA,TH) Production:2011-07 – 2016-09 Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
04226-0L020 VALVE KIT, SUCTION CONTROL 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
22100-0L060 PUMP ASSY, INJECTION OR SUPPLY 1
Note:2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..DCR..(CO,GCC,IDN,LA,MA,PHL,SA,TH) Production:2011-07 – 2016-09 Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
22100-0L060 PUMP ASSY, INJECTION OR SUPPLY 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..DLX..SA;1KDFTV..KUN26..4FC..TH;2KDFTV..KUN35..LHD..GEN;2KDFTV..KUN15..XTR..HDCR;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN25..GCC,GEN,PKN,SA;1KDFTV..KUN26..(4FC,5F)..(GEN,MA,PHL,SA);1KDFTV,2KDFTV..KUN1#..(4FC,5F)..DCR..(GCC,GEN,IDN,PHL,PKN,SA,TH) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
23810-0L030 RAIL ASSY, COMMON 1
Note:2KDFTV..KUN10,25;2KDFTV..KUN15..RHD;1KDFTV..KUN36..4FC;1KDFTV..KUN36..5F..SA;1KDFTV..KUN26..MA,PHL,SA;1KDFTV..KUN26..4FC..(CO,TH);2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN16,35..(4FC,5F)..(CO,LA,PHL,SA,TH) Production:2011-07 – 2016-09 Replacements:23810-30100 (fitment: unknown) Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****)
23810-30100 RAIL ASSY, COMMON 1
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..THDCB;2KDFTV..KUN10,15..DLX,STD;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;2KDFTV..KUN35..DLX..(PHL,SA,TH);1KDFTV..KUN16..(4FC,5F)..(GEN,TH);1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..(4FC,5F)..(GCC,GEN,MA,PHL,PKN,SA) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX)
— Part does not apply to this vehicle configuration. 23274D —
90466-T0041 standard —
Replacements:96133-41300 (fitment: unknown)
90464-T0004 standard —
Replacements:90464-00723 (fitment: unknown)
90466-T0023 standard —
Replacements:96137-41701 (fitment: unknown)
90116-06173 standard —
90119-06775 standard —
90119-T0306 standard —
90253-13008 standard —
Replacements:90253-13005 (fitment: unknown)
90253-T0003 standard —
Replacements:90253-13008 (fitment: unknown)
91552-81060 standard —
90105-T0170 standard —
Replacements:91552-81060 (fitment: unknown)
90179-08022 standard —
90182-T0009 standard —
Replacements:90179-08022 (fitment: unknown)
90301-49003 standard —
90301-T0011 standard —
Replacements:90301-49003 (fitment: unknown)
91551-80814 standard —
90105-T0118 standard —
Replacements:91551-80814 (fitment: unknown)
94151-80600 standard —
90178-T0018 standard —

Diagram

52 parts
Toyota Hilux 2012 — Injection Pump Assembly
