Open RegionYearModelModelCode Details
USA / Canada 2021 HILUX DOUBLE CAB GGN125L-DTTHKV
Catalog: TOYOTA202608 Engine: 4000CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 070 Trim Code: FR21 Production: 202108-202208 Model Short: GGN125L-DTTHKV Region: NA Native Region: US

Toyota HILUX-DOUBLE-CAB 2021 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
— Part does not apply to this vehicle configuration. 88280A —
— Part does not apply to this vehicle configuration. 84520 —
84550-02030 SWITCH ASSY, PARKING BRAKE 1
Note:GGN125,GUN12#,13#,LAN125,TGN120,121,126,136..GHAP,KENP,MMRP,SAP,THP Production:2021-08 – 2023-03 Replacements:84550-16060 (fitment: unknown)
89121-50020 SENSOR, AUTOMATIC LIGHT CONTROL 1
Note:GUN135..L..TH;TGN121..5F..H;TGN126..H..GCC;GUN126,136..S..ARL;TGN121..6FC..(H,L);GUN126..LHD..S..GEN;TGN121..5F..(ARL,SA);GUN135..6FC..(ARL,PH);GUN122,125..LHD..L..SA;GUN126..THP..6F..S..LA;GUN125..6F..(ARL,GHA,TH);GUN125..THP..6FC..(ARL,LA);GUN135..6F..(H,L)..(ARL,PH);GUN125..LHD..THP..6F..S..(GEN,LA);GUN135,TGN126..THP..(H,S)..(GEN,LA,TH,VN);GGN125,GUN122,125,126,136..(GHAP,KENP,MMRP,SAP,THP)..H Production:2021-08 – 2023-03
89533-71092 COMPUTER, 4 WHEEL DRIVE CONTROL 1
Note:GUN126..6FC..L;GUN125..GHA,PH,VN;GUN125..LHD..6F..H;TGN126..(H,S)..GEN;TGN126..THP..H..LA;GUN126..LHD..H..GEN;GUN125..LHD..THP..6F..S..(GEN,LA);GGN125,GUN125..LHD..(SAP,THP)..6FC..(H,S);GUN126..LHD..(GHAP,MMRP,SAP,THP)..(H,S)..(GCC,GHA,LA,MMR,PH,SA,TWN,VN) Production:2021-08 – 2023-03
90982-09019 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:5A,MINI FUSE,TAN
90982-09020 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:7.5A,MINI FUSE,BROWN
90982-09021 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:10A,MINI FUSE,RED
90982-09022 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:15A,MINI FUSE,BLUE
90982-09023 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:20A,MINI FUSE,YELLOW
90982-09024 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:25A,MINI FUSE
90982-09025 INSTRUMENT PANEL FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:30A,MINI FUSE,GRN
82673-0K010 BRACKET, JUNCTION BLOCK, NO.1 1
Note:GGN125,GUN122,125,126,13#,LAN125,TGN120,121,126,136..LHD..(GHAP,MMRP,SAP,THP) Production:2021-08 – 2023-03
82730-0K550 BLOCK ASSY, INSTRUMENT PANEL JUNCTION 1
Note:GGN125..GCC Production:2021-08 – 2022-08
82672-0K020 COVER, JUNCTION BLOCK 1
Note:GGN125,LAN125,TGN120,121,126,136..SAP,THP Production:2021-08 – 2023-01
89221-0K052 COMPUTER, BODY 1
Note:GUN125..LA,PH,VN;TGN136..L..(GEN,LA);GUN125,TGN126..LHD..L..GEN;GUN122,TGN121..LHD..(GEN,PH);GUN126,135,TGN126..(L,S)..(LA,VN);GGN125,GUN122,125,126,TGN121,126..H..GCC Production:2021-08 – 2022-10
82673-0K020 BRACKET, JUNCTION BLOCK, NO.2 1
Note:GGN125,GUN12#,13#,LAN125,TGN120,121,126,136..GHAP,KENP,MMRP,SAP,THP Production:2021-08 – 2023-03
90982-08294 INSTRUMENT PANEL FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:40A,FEMALE,GRN,58V
90982-08295 INSTRUMENT PANEL FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:30A,FEMALE,PNK,58V
84340-09380 SWITCH ASSY, STOP LAMP 1
Note:GGN125,GUN12#,13#,LAN125,TGN120,121,126,136..GHAP,KENP,MMRP,SAP,THP Production:2021-08 – 2023-03
89100-71011 COMPUTER, NETWORK GATEWAY 1
Note:GUN125..RHD..H..GEN;GUN125..6FC..H..GCC;GUN126..THP..S..(ARL,LA);TGN126..THP..H..(GEN,LA);GUN135..THP..L..(ARL,LA,TH);GUN126..(GHAP,MMRP,SAP,THP)..(H,L);GUN135..THP..(H,S)..(GEN,LA,TH,VN);GUN125,13#..(SAP,THP)..H..(ARL,LA,PH,SA);GGN125,GUN120,121,122..(SAP,THP)..(6F,6FC);GUN125,136,TGN121..THP..(L,S)..(ARL,LA,TH,VN) Production:2021-08 – 2023-03
84345-0K010 ADJUSTER, STOP LAMP SWITCH MOUNTING 1
Note:GGN125,GUN12#,13#,LAN125,TGN120,121,126,136..GHAP,KENP,MMRP,SAP,THP Production:2021-08 – 2023-03 Replacements:84345-51010 (fitment: unknown)
89960-71100 COMPUTER ASSY, HEADLAMP LEVELING 1
Note:GUN125,135..TH;GUN126..LHD..S..GEN;GUN125,135..H..(GCC,GEN,IDN,PH);GGN125,GUN126,136,TGN126..(GHAP,KENP,MMRP,SAP,THP)..H Production:2021-08 – 2023-03
— Part does not apply to this vehicle configuration. 69065A —
— Part does not apply to this vehicle configuration. 8598A —
— Part does not apply to this vehicle configuration. 89650 —
90159-T0003 standard —
90178-T0018 standard —
90119-T0313 standard —
Replacements:91673-80620 (fitment: unknown)
90178-T0007 standard —
Replacements:90179-06216 (fitment: unknown)
82715-KK300 standard —
90170-T0005 standard —
Replacements:94120-41000 (fitment: unknown)
90178-W0019 standard —
Replacements:94151-80600 (fitment: unknown)
94151-80600 standard —
90119-T0130 standard —
Replacements:90119-06915 (fitment: unknown)
90119-06915 standard —

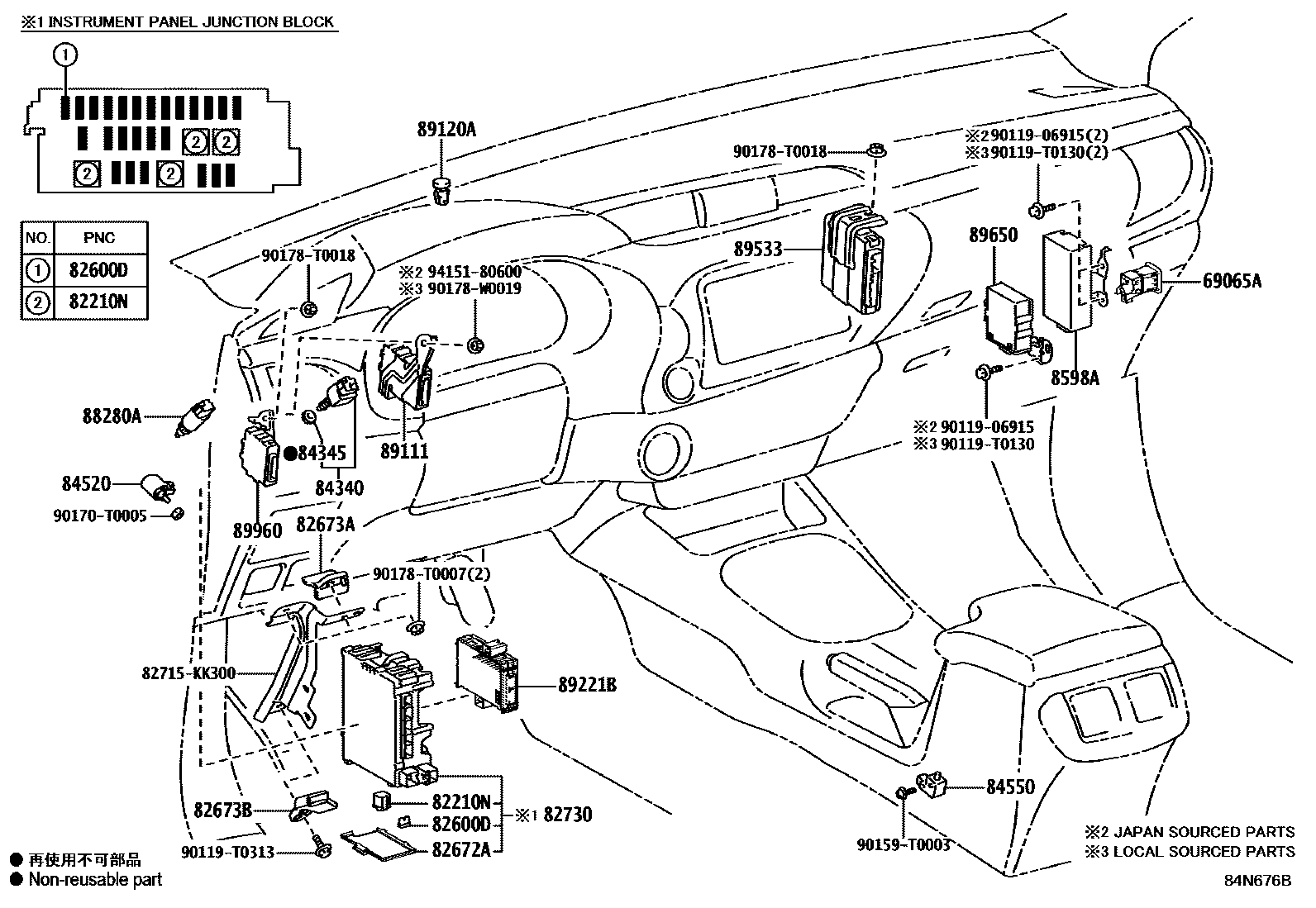

Diagram

31 parts
Toyota HILUX-DOUBLE-CAB 2021 — Switch & Relay & Computer
