USA / Canada 2021 HILUX DOUBLE CAB GGN125L-DTTHKV
Catalog: TOYOTA202608 Engine: 4000CC 24-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Color Code: 070 Trim Code: FR21 Production: 202108-202208 Model Short: GGN125L-DTTHKV Region: NA Native Region: US

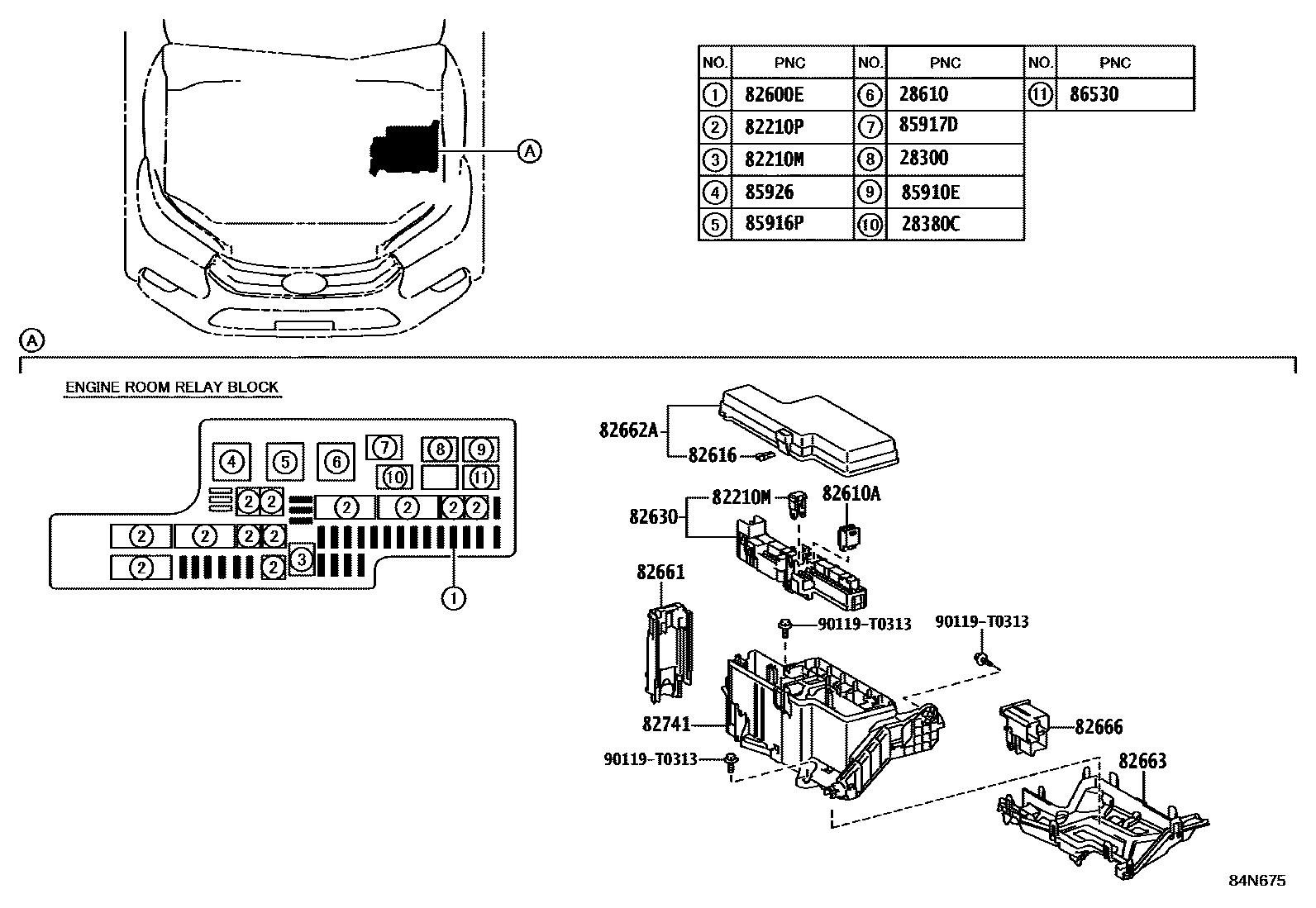

Toyota HILUX-DOUBLE-CAB 2021 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90987-T2002 RELAY, HEADLAMP 1
Note:GGN125,GUN12#,13#,LAN125,TGN120,121,126,136..MMRP,SAP,THP Production:2021-08 – 2023-04 Replacements:90987-02025 (fitment: unknown)
90987-T2001 RELAY ASSY, HORN 1
Note:GUN126..KENP,MMRP,SAP,THP;GGN125,GUN120,121,122,125,13#,LAN125,TGN120,121,126,136..SAP,THP Production:2021-08 – 2023-03 Replacements:90987-02027 (fitment: unknown)
90080-87009 RELAY ASSY, FUEL PUMP 1
Note:1GRFE..GGN125..GCC,SA Production:2021-08 – 2023-01 Replacements:90987-04004 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-04004 RELAY ASSY, FUEL PUMP 1
Note:1GRFE..GGN125..GCC,SA Production:2021-08 – 2023-01 Spec:(J) Spec Note:(Japan made)
28300-0L011 RELAY ASSY, STARTER 1
Note:1GRFE,1TRFE,2TRFE..GGN125,TGN12#,13# Production:2021-08 – 2022-10 Replacements:28300-21020 (fitment: unknown) Spec:(L) Spec Note:(Local made)
28300-21020 RELAY ASSY, STARTER 1
Note:1GRFE,1TRFE,2TRFE..GGN125,TGN120,121,126,136..SAP,THP Production:2021-08 – 2023-01 Spec:(J) Spec Note:(Japan made)
— Part does not apply to this vehicle configuration. 28610 —
90987-02027 RELAY, HEATER(FOR AIR FUEL RATIO SENSOR) 1
Note:GGN125,TGN120,121,126,136..SAP,THP Production:2021-08 – 2023-01 Spec:(J) Spec Note:(Japan made)
90987-T2001 RELAY, HEATER(FOR AIR FUEL RATIO SENSOR) 1
Note:GGN125,TGN120,121,126,136..SAP,THP Production:2021-08 – 2023-01 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90987-02027 RELAY, INJECTOR 1
Note:GGN125,TGN120,121,126,136..SAP,THP Production:2021-08 – 2023-01 Spec:(J) Spec Note:(Japan made)
90987-T2001 RELAY, INJECTOR 1
Note:GGN125,TGN120,121,126,136..SAP,THP Production:2021-08 – 2023-01 Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90982-09019 ENGINE ROOM FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:5A,MINI FUSE,TAN
90982-09020 ENGINE ROOM FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:7.5A,MINI FUSE,BROWN
90982-09021 ENGINE ROOM FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:10A,MINI FUSE,RED
90982-09022 ENGINE ROOM FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:15A,MINI FUSE,BLUE
90982-09023 ENGINE ROOM FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:20A,MINI FUSE,YELLOW
90982-09024 ENGINE ROOM FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:25A,MINI FUSE
90982-09025 ENGINE ROOM FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:30A,MINI FUSE,GRN
90982-08294 ENGINE ROOM FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:40A,FEMALE,GRN,58V
90982-08295 ENGINE ROOM FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:30A,FEMALE,PNK,58V
90982-08296 ENGINE ROOM FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:50A,FEMALE,RED,58V,MARK 58V
90982-08299 ENGINE ROOM FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:40A-40A-40A,FEMALE
90982-08300 ENGINE ROOM FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:50A-30A-30A,FEMALE
90982-08301 ENGINE ROOM FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:50A-30A-40A,FEMALE
90982-08302 ENGINE ROOM FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:50A-30A-50A,FEMALE
90982-08303 ENGINE ROOM FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:50A-50A-50A,FEMALE
90982-08304 ENGINE ROOM FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:60A,TERM.:FEMALE,YEL
90982-08305 ENGINE ROOM FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:80A,TERM.:FEMALE,BLK
90982-08307 ENGINE ROOM FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:50A,FEMALE,RED,32V,MARK 32V
90982-08308 ENGINE ROOM FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:40A-30A-30A,FEMALE
90982-08286 FUSIBLE LINK 1
Note:GGN125,GUN12#,13#,LAN125,TGN12#,13# Production:2021-08 – … Spec:140A,TERM.:MALE,RBR
90987-T2002 RELAY, HEADLAMP DIMMER 1
Note:GUN125..H..SA;GUN125..6FC..L..GEN;GUN125..6FC..(ARL,SA);GUN135..(SAP,THP)..6FC;GUN135..THP..6F..S..LA;GUN125..6F..L..(ARL,IDN);GUN125..(GHAP,THP)..(H,S);GUN135..6F..(ARL,GEN,PH,TH,VN);GGN125,GUN126,136,TGN126,136..(GHAP,KENP,MMRP,SAP,THP)..(H,S) Production:2021-08 – 2023-03 Replacements:90987-02025 (fitment: unknown)
82610-0K030 BLOCK ASSY, FUSE 1
Note:GUN126..TWN;GUN136..RHD;GUN125..H..SA;TGN136..AGTP..L..LA;GUN125,135..S..(MA,PH);GUN126..LHD..6F..H..GEN;GUN125..LHD..(L,S)..GEN;GGN125,GUN122,TGN120..LHD;GUN126..6F..H..(BZAG,GCC,TH);TGN126..5F..(L,S)..(GCC,LA,SA);GUN135..L..(ARL,BZAG,LA,SA,VN);TGN136..LHD..(SAP,THP)..(LA,SA);GUN125,TGN126..(5F,6FC)..L..GEN;GUN136,TGN121..LHD..MTM..(BZAG,GCC,GEN,SA);GUN125,126..RHD..H..(ARL,GEN,IDN,KEN,MA,SA);GUN135,TGN126..(6F,6FC)..(H,S)..(BZAG,LA,SA,TH,VN);GUN125,126..(L,S)..(ARL,BZAG,GCC,GHA,KEN,LA,PH,SA,TH,VN) Production:2021-08 – 2022-02
82630-0K020 HOLDER ASSY, FUSE 1
Note:GUN126..TWN;GUN136..RHD;GUN125..H..SA;TGN136..AGTP..L..LA;GUN125,135..S..(MA,PH);GUN126..LHD..6F..H..GEN;GUN125..LHD..(L,S)..GEN;GGN125,GUN122,TGN120..LHD;GUN126..6F..H..(BZAG,GCC,TH);TGN126..5F..(L,S)..(GCC,LA,SA);GUN135..L..(ARL,BZAG,LA,SA,VN);TGN136..LHD..(SAP,THP)..(LA,SA);GUN125,TGN126..(5F,6FC)..L..GEN;GUN136,TGN121..LHD..MTM..(BZAG,GCC,GEN,SA);GUN125,126..RHD..H..(ARL,GEN,IDN,KEN,MA,SA);GUN135,TGN126..(6F,6FC)..(H,S)..(BZAG,LA,SA,TH,VN);GUN125,126..(L,S)..(ARL,BZAG,GCC,GHA,KEN,LA,PH,SA,TH,VN) Production:2021-08 – 2022-02
82661-0K050 COVER, RELAY BLOCK, NO.1 1
Note:GGN125..GCC Production:2021-08 – 2022-08 Spec:FRONT BUMPER-PAINTED(MLM) & WITH(WIDE FENDER)&BACK MONITOR-WITH(*PVM)
82662-0K890 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:GGN125..GCC Production:2021-08 – 2022-08
82663-0K020 COVER, RELAY BLOCK, LOWER 1
Note:GUN126..TWN;GUN136..RHD;GUN125..H..SA;TGN136..AGTP..L..LA;GUN125,135..S..(MA,PH);GUN126..LHD..6F..H..GEN;GUN125..LHD..(L,S)..GEN;GGN125,GUN122,TGN120..LHD;GUN126..6F..H..(BZAG,GCC,TH);TGN126..5F..(L,S)..(GCC,LA,SA);GUN135..L..(ARL,BZAG,LA,SA,VN);TGN136..LHD..(SAP,THP)..(LA,SA);GUN125,TGN126..(5F,6FC)..L..GEN;GUN136,TGN121..LHD..MTM..(BZAG,GCC,GEN,SA);GUN125,126..RHD..H..(ARL,GEN,IDN,KEN,MA,SA);GUN135,TGN126..(6F,6FC)..(H,S)..(BZAG,LA,SA,TH,VN);GUN125,126..(L,S)..(ARL,BZAG,GCC,GHA,KEN,LA,PH,SA,TH,VN) Production:2021-08 – 2022-02
82666-0K150 HOLDER, CONNECTOR 1
Note:GUN126..TWN;GUN136..RHD;GUN125..H..SA;TGN136..AGTP..L..LA;GUN125,135..S..(MA,PH);GUN126..LHD..6F..H..GEN;GUN125..LHD..(L,S)..GEN;GGN125,GUN122,TGN120..LHD;GUN126..6F..H..(BZAG,GCC,TH);TGN126..5F..(L,S)..(GCC,LA,SA);GUN135..L..(ARL,BZAG,LA,SA,VN);TGN136..LHD..(SAP,THP)..(LA,SA);GUN125,TGN126..(5F,6FC)..L..GEN;GUN136,TGN121..LHD..MTM..(BZAG,GCC,GEN,SA);GUN125,126..RHD..H..(ARL,GEN,IDN,KEN,MA,SA);GUN135,TGN126..(6F,6FC)..(H,S)..(BZAG,LA,SA,TH,VN);GUN125,126..(L,S)..(ARL,BZAG,GCC,GHA,KEN,LA,PH,SA,TH,VN) Production:2021-08 – 2022-02
82741-0K020 BLOCK, ENGINE ROOM RELAY 1
Note:GUN126..TWN;GUN136..RHD;GUN125..H..SA;TGN136..AGTP..L..LA;GUN125,135..S..(MA,PH);GUN126..LHD..6F..H..GEN;GUN125..LHD..(L,S)..GEN;GGN125,GUN122,TGN120..LHD;GUN126..6F..H..(BZAG,GCC,TH);TGN126..5F..(L,S)..(GCC,LA,SA);GUN135..L..(ARL,BZAG,LA,SA,VN);TGN136..LHD..(SAP,THP)..(LA,SA);GUN125,TGN126..(5F,6FC)..L..GEN;GUN136,TGN121..LHD..MTM..(BZAG,GCC,GEN,SA);GUN125,126..RHD..H..(ARL,GEN,IDN,KEN,MA,SA);GUN135,TGN126..(6F,6FC)..(H,S)..(BZAG,LA,SA,TH,VN);GUN125,126..(L,S)..(ARL,BZAG,GCC,GHA,KEN,LA,PH,SA,TH,VN) Production:2021-08 – 2022-02
82616-58010 PULLER, FUSE 1
Note:GGN125,GUN12#,13#,LAN125,TGN120,121,126,136..GHAP,KENP,MMRP,SAP,THP Production:2021-08 – 2023-03
90119-T0313 standard —
Replacements:91673-80620 (fitment: unknown)

Diagram

40 parts
