Toyota HILUX-DOUBLE-CAB 2025 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 84052 | — |
| — | Part does not apply to this vehicle configuration. | 84450 | — |
| — | Part does not apply to this vehicle configuration. | 85432 | — |
| 84307-0K200 | CABLE SUB-ASSY, SPIRAL W/SENSOR | 1 | |
Note:TGN126..L..GCC;GUN125..TP..L..LA;GUN125..LHD..SP..(H,S);TGN126..(H,S)..(GCC,LA);GUN125..RHD..(KEN,MA,SA);GUN126,135..L..(BZAG,LA);GUN125..6F..L..(BZAG,GCC,GHA);GUN125..6F..(H,S)..(GCC,IDN,LA);GGN125,GUN136,TGN120..BZAG,GCC,LA,SA;GUN125,TGN126..(6F,6FC)..(H,S)..(GEN,GHA);GUN125,TGN121,136..(5F,6FC)..(BZAG,GCC,IDN,LA);GUN122,126,135..(H,S)..(BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA) Production:2024-08 – … | |||
| 84308-0K070 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:TGN126..L..GCC;GUN125..TP..L..LA;GUN125..LHD..SP..(H,S);TGN126..(H,S)..(GCC,LA);GUN125..RHD..(KEN,MA,SA);GUN126,135..L..(BZAG,LA);GUN125..6F..L..(BZAG,GCC,GHA);GUN125..6F..(H,S)..(GCC,IDN,LA);GGN125,GUN136,TGN120..BZAG,GCC,LA,SA;GUN125,TGN126..(6F,6FC)..(H,S)..(GEN,GHA);GUN125,TGN121,136..(5F,6FC)..(BZAG,GCC,IDN,LA);GUN122,126,135..(H,S)..(BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA) Production:2024-08 – … | |||
| 84140-0K570 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:GUN125,126..H..MA Production:2024-09 – … | |||
| 8924B-0D020 | SENSOR, STEERING | 1 | |
Note:TGN121..GCC,GEN;GUN125..6F..L..GCC;GUN125..LHD..S..GEN;GUN125,TGN121..LHD..SP;GUN126,135..L..(BZAG,LA);TGN121,126..6FC..(ARL,GEN);GUN125..RHD..(GEN,KEN,MA,SA);GUN125..6F..(H,S)..(GCC,GHA,IDN,LA);GUN125..LHD..6F..(H,L)..(BZAG,GEN,GHA,LA);GGN125,GUN122,136,TGN120..BZAG,GCC,GEN,LA,SA;GUN125,TGN126,136..(5F,6FC)..(BZAG,GCC,IDN,LA);GUN126,135..(H,S)..(BZAG,GCC,GEN,GHA,IND,KEN,LA,MA,MMR,PH,PKN,SA,TWN) Production:2024-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 84610F | — |
| — | Part does not apply to this vehicle configuration. | 84523 | — |
| 84250-0K420-C1 | SWITCH ASSY, STEERING PAD | 1 | |
Note:GUN126..MA Production:2024-09 – … Spec:BLACK & SILVER 21SV85,TRIM2# | |||
| — | Part does not apply to this vehicle configuration. | 45124A | — |
| — | Part does not apply to this vehicle configuration. | 84650 | — |
| 84652-0K241 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:GUN125..H..MA;GUN126..RHD..S..(GEN,SA);GUN126..RHD..H..(GEN,KEN,MA,PKN,SA);GUN125,135..RHD..(H,S)..(GEN,IDN,KEN,SA);GGN125,GUN120,121,122,136,TGN136..(H,S)..(SA,TH) Production:2024-08 – … | |||
| 90168-T0004 | standard | — | |
Replacements:90168-40129 (fitment: unknown) | |||
| 90168-40113 | standard | — | |
| 90159-50199 | standard | — | |

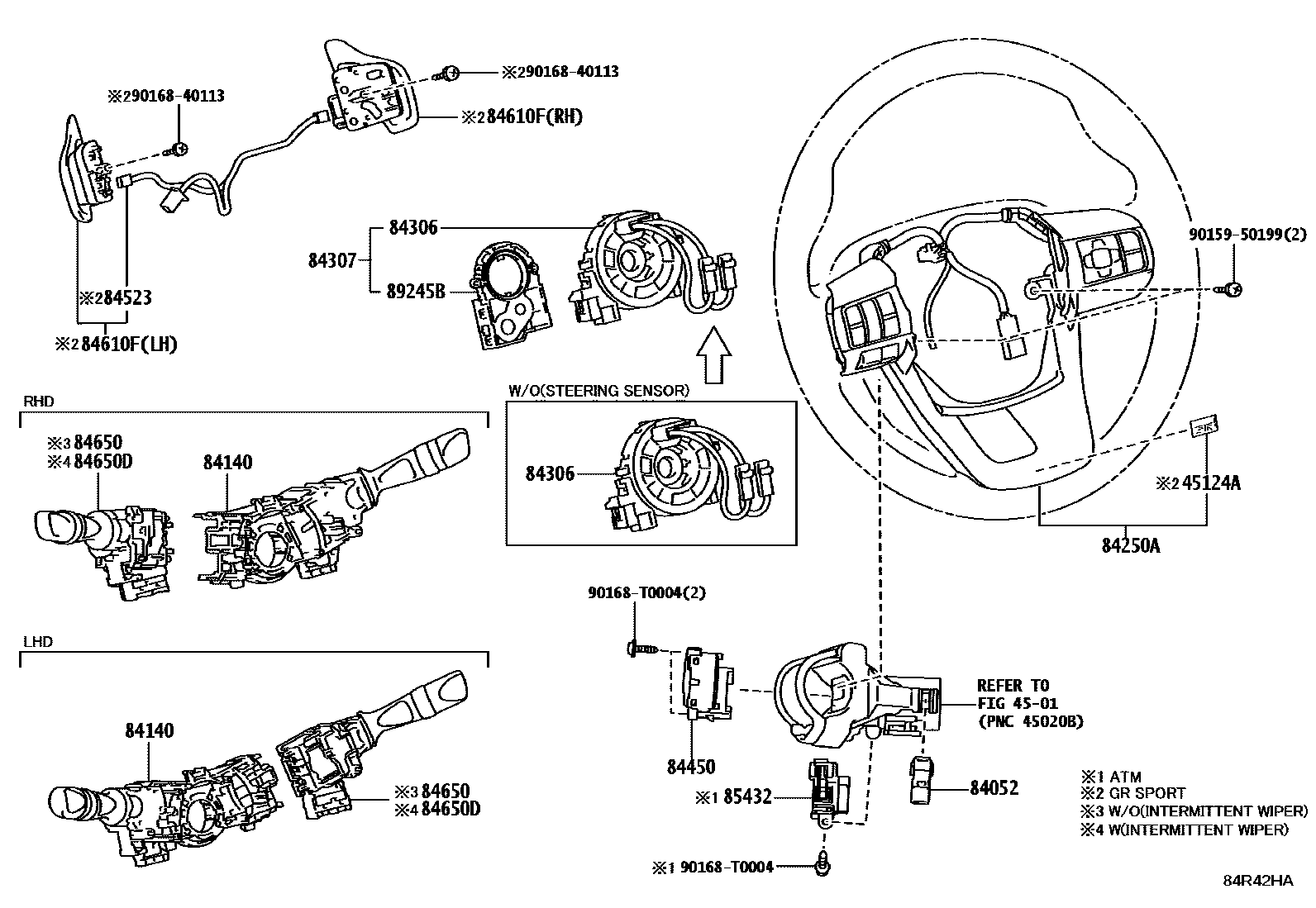

Diagram
9 parts
