Open RegionYearModelModelCode Details
General 2007 HILUX TGN11L-TRMDKV
Catalog: TOYOTA202608 Engine: 2700CC 16-VALVE DOHC EFI Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: DLX TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Doors Description: SINGLE CAB Color Code: 040 Trim Code: GA30 Production: 200510-200808 Model Short: TGN11L-TRMDKV Region: OTHER Native Region: GR

Toyota Hilux 2007 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84052-71010 SWITCH ASSY, UN-LOCK WARNING 1
Note:KUN15,16..SR;KUN25..THDCB,THSCB;KUN15,25..ANCOM,GCC,LA;KUN15,25..RHD..SCB..SA;KUN16,TGN15..ARL,GCC,SA;TGN26..(SCB,THDCB)..(GEN,SA);TGN16,26..ANCOM,ARL,GCC,LA,TH;KUN25..RHD..(DCB,XTR)..(MA,SA,TH);GGN15,25,KUN10,26,3#,TGN10,11,36..ANCOM,ARL,GCC,GEN,LA,PHL,SA,TH Production:2004-08 – 2008-02
84450-0K010 SWITCH ASSY, IGNITION OR STARTER 1
Note:TGN36..SCB;KUN26..THDCB;KUN25..SCB..MA;KUN26..DCB..5F..SA;KUN36..(DCB,SCB)..5F;KUN25..(DCB,XTR)..SR;KUN16,36,TGN16..XTR..TH;TGN26,36..DCB..5F..DLX..LA;TGN26..ANCOM,GCC,GEN,SA,TH;TGN36..DCB..(ANCOM,PHL,SA);KUN15..(DCB,SCB)..(PHL,SA)..CBU;KUN16,TGN10..(DCB,SCB)..(DLX,SR);KUN25,35..DLX..(ANCOM,GCC,GEN,LA,SA);KUN26..(DCB,SCB,XTR)..(ARL,LA,PHL,TH);KUN15..(DCB,SCB,XTR)..(GCC,GEN,PKN,TH);GGN15,25,KUN10,LAN15,25,35,TGN11,15,16..(5F,5FC)..(ANCOM,ARL,GCC,GEN,PKN,SA) Production:2004-08 – 2012-02
— Part does not apply to this vehicle configuration. 85432 —
84140-0K050 SWITCH ASSY, HEADLAMP DIMMER 1
Note:KUN26,TGN26..LHD..DLX..(GCC,GEN,SA);KUN10,15,25,35,LAN15,25,TGN1#..LHD..(GCC,GEN,PHL,SA) Production:2004-11 – 2008-08
— Part does not apply to this vehicle configuration. 84306 —
84312-0K030 PLATE, HORN CONTACT 1
Note:KUN15..LHD..SA;KUN35..ANCOM,GEN;KUN35..DCB..DLX..SA;KUN36..(DCB,XTR)..TH;KUN25,TGN26..(THDCB,THSCB)..DLX;TGN26..LHD..DLX..(ANCOM,GCC,SA);KUN15,TGN15,36..5F..(ANCOM,GCC,PKN);KUN25,TGN16..LHD..5F..(ANCOM,GCC,SA);KUN10,26,LAN15,25,35,TGN10,11..(DLX,STD)..(GCC,GEN,IDN,PKN,SA)..CBU Production:2005-01 – 2012-02
84652-0K040 SWITCH ASSY, WINDSHIELD WIPER 1
Note:KUN10,15,25,35,TGN1#,26,36..LHD..(DCB,SCB,XTR)..DLX..(ANCOM,GCC,GEN) Production:2005-02 – 2008-08
— Part does not apply to this vehicle configuration. 84650D —
— Part does not apply to this vehicle configuration. 84250A —
— Part does not apply to this vehicle configuration. 84247A —
90159-T0007 standard —
Replacements:90159-50199 (fitment: unknown)
90168-T0004 standard —
Replacements:90168-40129 (fitment: unknown)
90159-50199 standard —

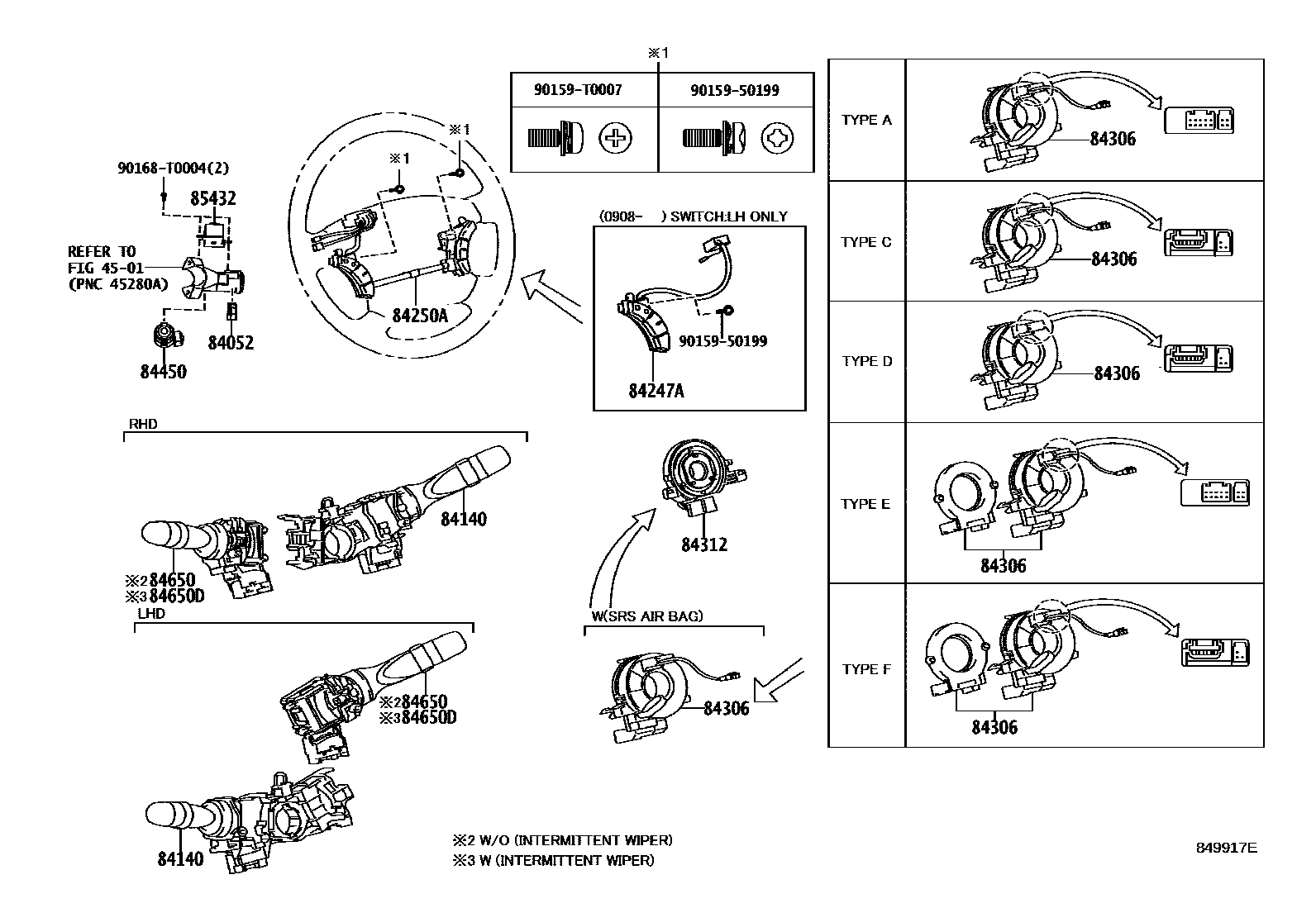

Diagram

8 parts
Toyota Hilux 2007 — Switch & Relay & Computer
