Toyota Hilux 2013 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 28300-0L010 | RELAY ASSY, STARTER | 1 | |
Note:1GRFE,1TRFE,2TRFE..GGN15,25,35,TGN1#,26,36 Production:2011-07 – 2016-04 Replacements:28300-0L011 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 85926 | — |
| — | Part does not apply to this vehicle configuration. | 85916P | — |
| — | Part does not apply to this vehicle configuration. | 28610 | — |
| 90982-09013 | ENGINE ROOM FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:30A,MINI FUSE,GRN | |||
| 90982-09020 | ENGINE ROOM FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | ENGINE ROOM FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | ENGINE ROOM FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | ENGINE ROOM FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | ENGINE ROOM FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … Spec:25A,MINI FUSE | |||
| 82661-0K010 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:KUN15..LHD..SCB..DCR..(GCC,GEN);TGN16..(DCB,SCB)..DLX..(GCC,GEN);KUN15..LHD..(DCB,XTR)..DLX..(GCC,GEN,PHL);KUN10,2#,35,TGN10,11,15,26..LHD..(DCB,SCB,THDCB,THSCB,XTR)..DLX..(GCC,GEN) Production:2011-07 – 2014-08 | |||
| 82631-0K010 | HOLDER ASSY, FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … | |||
| 82662-0K281 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:GGN15,25,TGN1#,26,36..HTWC..(ARL,GCC,GEN,IDN,TH) Production:2013-08 – 2021-10 Spec:MARK 82662-0K281 | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … | |||
| 82663-0K010 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … | |||
| 82741-0K010 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:GGN15,25,35,KUN1#,2#,3#,LAN15,25,35,TGN1#,26,36 Production:2011-07 – … | |||
| 82660-0C040 | BLOCK, ENGINE ROOM RELAY, NO.2 | 2 | |
Note:TGN26..DLX..HTWC..LA;TGN16..DCB..5F..SR..GCC;TGN1#,36..LHD..DLX..HTWC;TGN26..LHD..(ANCOM,CO,GCC,GEN,SA) Production:2013-08 – 2014-04 | |||
| — | Part does not apply to this vehicle configuration. | 82742A | — |
| 82641-71010 | RELAY, INTEGRATION NO.1 | 2 | |
Note:TGN26..DLX..HTWC..LA;TGN16..DCB..5F..SR..GCC;TGN1#,36..LHD..DLX..HTWC;TGN26..LHD..(ANCOM,CO,GCC,GEN,SA) Production:2013-08 – 2014-04 | |||
| 82620-71012 | BLOCK ASSY, FUSIBLE LINK | 1 | |
Note:TGN26..DLX..HTWC..LA;TGN16..DCB..5F..SR..GCC;TGN1#,36..LHD..DLX..HTWC;TGN26..LHD..(ANCOM,CO,GCC,GEN,SA) Production:2013-08 – 2014-04 | |||
| 82715-0K800 | standard | — | |
| 90119-T0185 | standard | — | |
Replacements:90119-06923 (fitment: unknown) | |||
| 90119-06923 | standard | — | |

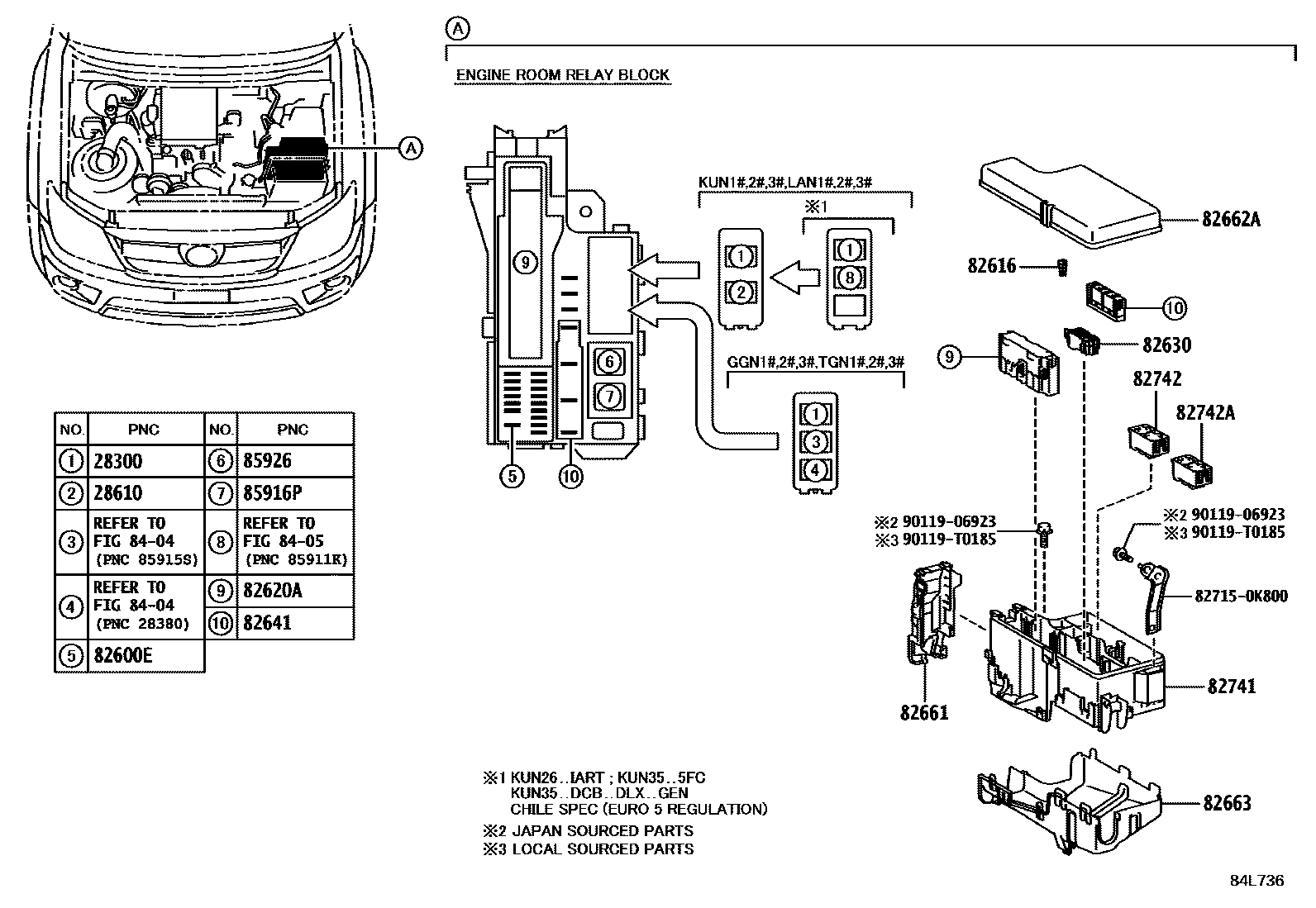

Diagram
19 parts
