Toyota Grnva-Hiace-Mjsty 2019 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82673-26130 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:GDH322..NZ;GRH300..ARL;GDH320..RHD..6F;GDH322..RHD..GSOB..N;GDH300,303..RHD..5D..GEN;GDH300,322..RHD..4D..(GSOB,SP)..6F;GDH301,320..RHD..(GSOB,SP)..6FC..GEN;GDH300,322..RHD..4D..(PSOB,SG)..(D,N)..(GEN,TH);GDH301,304,306,321,GRH301,303,304,32#..RHD..(SG,SP)..(ARL,GEN,IDN,TH) Production:2019-02 – … | |||
| 82673-26120 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:GDH322..NZ;GRH300..ARL;GDH320..RHD..6F;GDH322..RHD..GSOB..N;GDH300,303..RHD..5D..GEN;GDH300,322..RHD..4D..(GSOB,SP)..6F;GDH301,320..RHD..(GSOB,SP)..6FC..GEN;GDH300,322..RHD..4D..(PSOB,SG)..(D,N)..(GEN,TH);GDH301,304,306,321,GRH301,303,304,32#..RHD..(SG,SP)..(ARL,GEN,IDN,TH) Production:2019-02 – … | |||
| 82715-26R50 | BRACKET, WIRING HARNESS CLAMP | 1 | |
Note:GDH300..SG..6FC;GDH303..RHD..GEN;GDH322..RHD..GSOB..N;GDH322,GRH300..ARL,NZ;GDH301..RHD..GSOB..6FC;GDH300..4D..SP..(ARL,TH);GDH300,322..RHD..4D..(PSOB,SG)..(D,N);GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300..RHD..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,304,306,320,321,GRH301,303,304,32#..RHD..(PSOB,SG,SP) Production:2019-02 – … | |||
| 82730-26100 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:GDH320..6F;GDH322..GCC,NZ;GRH322..RHD..6F;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH321..RHD..(GEN,IDN);GRH322..LHD..6F..(N,P,Q);GDH306,320..RHD..6FC..GEN;GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300,322..RHD..4D..(GSOB,SP)..6F;GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH);GDH320,GRH322..(PSOB,SG)..6FC..(AGT,BZ,GCC,GEN);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH301,GRH301,303,320,321..(PSOB,SG,SP)..(ARL,GCC,GEN,TH) Production:2019-02 – … | |||
| — | Part does not apply to this vehicle configuration. | 85910Y | — |
| — | Part does not apply to this vehicle configuration. | 89747F | — |
| 89121-30020 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:GDH320..6F;GRH320..LHD..5D;GDH320..6FC..GCC;GDH300..4D..PSOB..6F;GDH322..RHD..GSOB..6F;GDH320..RHD..6FC..GEN;GRH301,320,322..RHD..D;GDH322..SG..D..(GEN,TH);GDH322,GRH322..P..(GCC,NZ);GDH320,GRH301..LHD..SG..6FC..D;GDH300,321..RHD..4D..(SG,SP)..6F..D;GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300..5D..(HPSOB,PSOB,SP)..(GCC,GEN);GDH300,301..(GSOB,PSOB,SHP)..6FC..D..GEN;GDH300,301,GRH322..LHD..(GSOB,SHP)..6F..D;GDH300,322,GRH300..LHD..(GSOB,SP)..D..GEN;GDH301,328,GRH321..SG..(D,P)..(ARL,GEN,TH,VN) Production:2019-02 – … Spec:LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM) | |||
| — | Part does not apply to this vehicle configuration. | 84520 | — |
| — | Part does not apply to this vehicle configuration. | 88280A | — |
| — | Part does not apply to this vehicle configuration. | 89280 | — |
| 89100-26010 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:GDH320..RHD..SP;GDH322..ARL,GCC,NZ;GDH320..LHD..SP..6F;GDH320..SP..6FC..GCC;GDH322..LHD..(P,Q)..GEN;GDH30#,321,328,GRH30#,32#;GDH320,322..(GSOB,PSOB,SG)..(D,N) Production:2019-02 – 2023-09 | |||
| 85940-26050 | RELAY ASSY, WINDSHIELD WIPER | 1 | |
Note:GDH320..6F;GDH322..GCC,NZ;GRH322..RHD..6F;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH321..RHD..(GEN,IDN);GRH322..LHD..6F..(N,P,Q);GDH306,320..RHD..6FC..GEN;GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300,322..RHD..4D..(GSOB,SP)..6F;GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,GEN,TH);GDH320,GRH322..(PSOB,SG)..6FC..(AGT,BZ,GCC,GEN);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN);GDH301,GRH301,303,320,321..(PSOB,SG,SP)..(ARL,GCC,GEN,TH) Production:2019-02 – … | |||
| — | Part does not apply to this vehicle configuration. | 8598A | — |
| 84550-33010 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:GDH320..6F;GRH322..6FC;GDH301..GSOB..6FC;GDH322..P..(GCC,NZ);GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH300..5D..(GCC,GEN);GDH322..LHD..GSOB..6FC;GDH322..LHD..SG..P..GEN;GDH322..GSOB..6F..(D,P);GDH300..SP..6F..(ARL,TH);GDH328,GRH320,321..D,P,Q;GRH322..LHD..6F..(N,P,Q);GDH306,320..RHD..6FC..GEN;GDH301,GRH322..LHD..GSOB..6F..D;GDH321,GRH303..RHD..(ARL,GEN,IDN);GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC);GDH300,GRH322..RHD..4D..(SG,SP)..6F..GEN;GDH320,GRH303..LHD..(PSOB,SG)..6FC..(D,G);GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH300,301,322,GRH301..4D..(PSOB,SG)..(D,N,Q)..(AGT,GCC,GEN,TH) Production:2019-02 – … Spec:TOKAI RIKA,MATSUSHITA | |||
| — | Part does not apply to this vehicle configuration. | 85965 | — |
| 84345-51010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:GDH306,321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH322..LHD..GSOB;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..GSOB,PSOB,SG;GDH322..RHD..GSOB..N;GDH320..SP..6FC..GCC;GDH300,GRH322..SG..6FC;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH301,GRH322..LHD..GSOB..6F;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH301,GRH301,303,320,321..PSOB,SG,SP;GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,306,GRH300..LHD..(SG,SP)..(D,J)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,322..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,TH);GDH303,304,328,GRH304..(D,G,H,J)..(BZ,GCC,GEN,TH,VN) Production:2019-02 – … Spec:(J) Spec Note:(Japan made) | |||
| 84340-49045 | SWITCH ASSY, STOP LAMP | 1 | |
Note:GDH321..RHD;GDH320..RHD..SP;GRH322..RHD..6F;GDH301..GSOB..6FC;GDH320..LHD..SP..6F;GDH320..SP..6FC..GCC;GDH322..RHD..GSOB..N;GDH320..GSOB,PSOB,SG;GDH301..LHD..GSOB..6F;GDH300,GRH322..SG..6FC;GDH328,GRH320,321..D,P,Q;GDH300..4D..SP..(ARL,TH);GRH322..LHD..6F..(N,P,Q);GDH322..LHD..SG..(P,Q)..GEN;GDH300..5D..(GSOB,HPSOB,PSOB,SHP,SP);GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,322,GRH300,322..LHD..(GSOB,SP)..GEN;GDH322,GRH300..(PSOB,SG,SHP,SP)..(ARL,GCC,NZ);GDH300,301,322,GRH301..4D..(PSOB,SG)..(D,N)..(AGT,ARL,GEN,NZ,TH) Production:2019-02 – … | |||
| — | Part does not apply to this vehicle configuration. | 89650 | — |
| 89220-26C80 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:GDH322..TH Production:2019-06 – 2020-05 Replacements:89220-V3C20 (fitment: unknown) Spec:LIGHT CONTROL SYSTEM-WITH(LIGHT CONTROL SYSTEM) | |||
| — | Part does not apply to this vehicle configuration. | 82600D | — |
| — | Part does not apply to this vehicle configuration. | 82210N | — |
| 94151-80600 | standard | — | |
| 90178-T0018 | standard | — | |
| 93315-14012 | standard | — | |
| 91673-80620 | standard | — | |
| 94120-41000 | standard | — | |

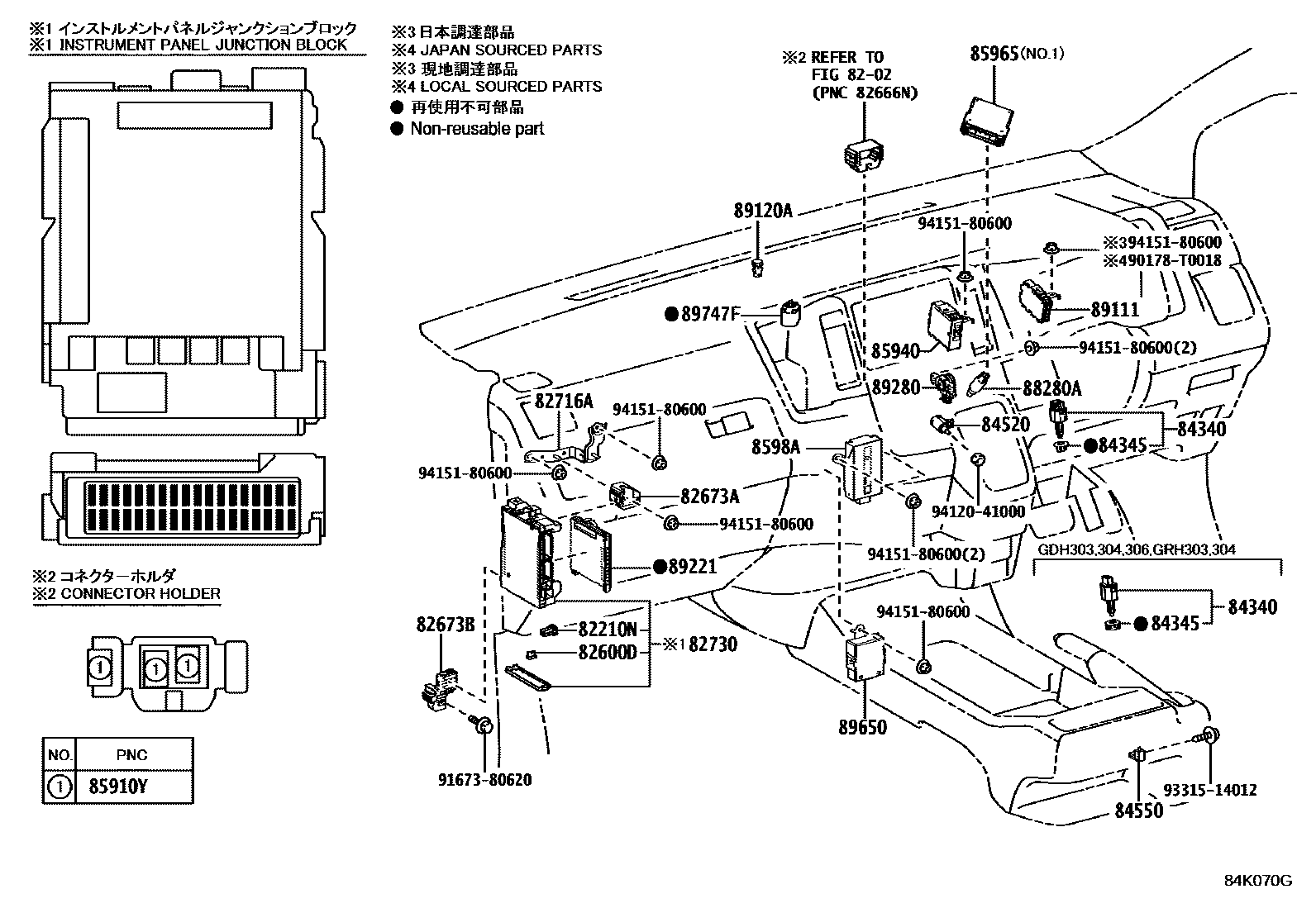

Diagram
16 parts
