Open RegionYearModelModelCode Details
General 2018 FORTUNER GUN165R-SDFSHD
Catalog: TOYOTA202608 Engine: 2400CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Body Description: INDONESIA PRODUCED SUV WAGON Steering Description: RIGHT-HAND DRIVE VEHICLES Destination Description: INDONESIA Color Code: 040 Trim Code: FN41 Production: 201601-202007 Model Short: GUN165R-SDFSHD Region: OTHER Native Region: GR

Toyota Fortuner 2018 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90987-T2002 RELAY, HEADLAMP DIMMER 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV Production:2015-07 – 2021-04 Replacements:90987-02025 (fitment: unknown)
90987-T2002 RELAY, HEADLAMP 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV Production:2015-07 – 2021-04 Replacements:90987-02025 (fitment: unknown)
28300-30050 RELAY ASSY, STARTER 1
Note:1GDFTV,2GDFTV,1KDFTV,2KDFTV,5LE..GUN15#,16#,KUN156,165,LAN155..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV Production:2015-07 – 2021-04
90987-02025 RELAY ASSY, INTAKE HEATER OR GLOW PLUG 1
Note:1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV Production:2015-07 – 2021-04 Spec:(J) Spec Note:(Japan made)
90987-T2002 RELAY ASSY, INTAKE HEATER OR GLOW PLUG 1
Note:1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV Production:2015-07 – 2021-04 Replacements:90987-02025 (fitment: unknown) Spec:(L) Spec Note:(Local made)
— Part does not apply to this vehicle configuration. 28300F —
90987-T2001 RELAY ASSY, HORN 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV Production:2015-07 – 2021-04 Replacements:90987-02027 (fitment: unknown)
82610-0K030 BLOCK ASSY, FUSE 1
Note:GUN156..6F..M;GUN156..THSUV..(H,L);GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);GUN16#..AGTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV;TGN156,166..BZAGT,EPT,GEN,KZS,LA,MA,PH,PKN,SA,VN;GGN155,165,GUN155,KUN156,165,LAN155,TGN168..BZAGT,GCC,GEN,IDN,LA,MA,SA Production:2015-07 – 2021-04
82630-0K020 HOLDER ASSY, FUSE 1
Note:GUN156..6F..M;GUN156..THSUV..(H,L);GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);GUN16#..AGTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV;TGN156,166..BZAGT,EPT,GEN,KZS,LA,MA,PH,PKN,SA,VN;GGN155,165,GUN155,KUN156,165,LAN155,TGN168..BZAGT,GCC,GEN,IDN,LA,MA,SA Production:2015-07 – 2021-04
82661-0K050 COVER, RELAY BLOCK, NO.1 1
Note:GUN155,165..S..IDN Production:2017-08 – 2020-07 Spec:HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH,EXCEPT INDONESIA
82661-0K090 COVER, RELAY BLOCK, NO.1 1
Note:GUN155,165..S..IDN Production:2017-08 – 2020-07 Replacements:82661-0K050 (fitment: unknown) Spec:HEADLAMP-LED&DAYTIME RUNNING LIGHT SYSTEM-WITH,INDONESIA
82662-0K630 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:GUN15#,165,KUN156..AGTSU,IDNSU,VNSUV Production:2017-08 – 2019-07 Spec:MARK 82662-0K630
82663-0K020 COVER, RELAY BLOCK, LOWER 1
Note:GUN156..6F..M;GUN156..THSUV..(H,L);GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);GUN16#..AGTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV;TGN156,166..BZAGT,EPT,GEN,KZS,LA,MA,PH,PKN,SA,VN;GGN155,165,GUN155,KUN156,165,LAN155,TGN168..BZAGT,GCC,GEN,IDN,LA,MA,SA Production:2015-07 – 2021-04
82666-0K150 HOLDER, CONNECTOR 1
Note:GUN156..6F..M;GUN156..THSUV..(H,L);GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);GUN16#..AGTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV;TGN156,166..BZAGT,EPT,GEN,KZS,LA,MA,PH,PKN,SA,VN;GGN155,165,GUN155,KUN156,165,LAN155,TGN168..BZAGT,GCC,GEN,IDN,LA,MA,SA Production:2015-07 – 2021-04
82741-0K020 BLOCK, ENGINE ROOM RELAY 1
Note:GUN156..6F..M;GUN156..THSUV..(H,L);GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);GUN16#..AGTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV;TGN156,166..BZAGT,EPT,GEN,KZS,LA,MA,PH,PKN,SA,VN;GGN155,165,GUN155,KUN156,165,LAN155,TGN168..BZAGT,GCC,GEN,IDN,LA,MA,SA Production:2015-07 – 2021-04
90982-08294 ENGINE ROOM FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:40A,FEMALE,GRN,58V
90982-08295 ENGINE ROOM FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:30A,FEMALE,PNK,58V
90982-08296 ENGINE ROOM FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:50A,FEMALE,RED,58V,MARK=58V
90982-08299 ENGINE ROOM FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:40A-40A-40A,FEMALE
90982-08300 ENGINE ROOM FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:50A-30A-30A,FEMALE
90982-08301 ENGINE ROOM FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:50A-30A-40A,FEMALE
90982-08302 ENGINE ROOM FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:50A-30A-50A,FEMALE
90982-08303 ENGINE ROOM FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:50A-50A-50A,FEMALE
90982-08304 ENGINE ROOM FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:60A,TERM.:FEMALE,YEL
90982-08305 ENGINE ROOM FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:80A,TERM.:FEMALE,BLK
90982-08307 ENGINE ROOM FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:50A,FEMALE,RED,32V,MARK=32V
90982-08308 ENGINE ROOM FUSIBLE LINK 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:40A-30A-30A,FEMALE
90982-09019 ENGINE ROOM FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:5A,MINI FUSE,TAN
90982-09020 ENGINE ROOM FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:7.5A,MINI FUSE,BROWN
90982-09021 ENGINE ROOM FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:10A,MINI FUSE,RED
90982-09022 ENGINE ROOM FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:15A,MINI FUSE,BLUE
90982-09023 ENGINE ROOM FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:20A,MINI FUSE,YELLOW
90982-09024 ENGINE ROOM FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:25A,MINI FUSE
90982-09025 ENGINE ROOM FUSE 1
Note:GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN156,16# Production:2015-07 – … Spec:30A,MINI FUSE,GRN
90982-08286 FUSIBLE LINK 1
Note:GUN156..6F..M;GUN156..THSUV..(H,L);GUN156..AGTSU,IDNSU,PKNSU,SASUV,VNSUV;GUN156,TGN156,166..THSUV..S..(ARL,GCC);GUN16#..AGTSU,IDNSU,MASUV,SASUV,THSUV,VNSUV;TGN156,166..BZAGT,EPT,GEN,KZS,LA,MA,PH,PKN,SA,VN;GGN155,165,GUN155,KUN156,165,LAN155,TGN168..BZAGT,GCC,GEN,IDN,LA,MA,SA Production:2015-07 – 2021-04 Spec:140A,TERM.:MALE,RBR
82616-58010 PULLER, FUSE 1
Note:GUN156..(H,S)..IART;GUN156..6F..S..BZAGT;GUN155,165..IDNSU..(GCC,IDN,PH);GUN156..(H,L,M)..HDCR..(BZAGT,LA,PH);GUN165,KUN156..(AGTSU,IDNSU)..(5FC,6F)..(GEN,LA,VN) Production:2016-10 – 2021-04
90119-T0313 standard —
Replacements:91673-80620 (fitment: unknown)

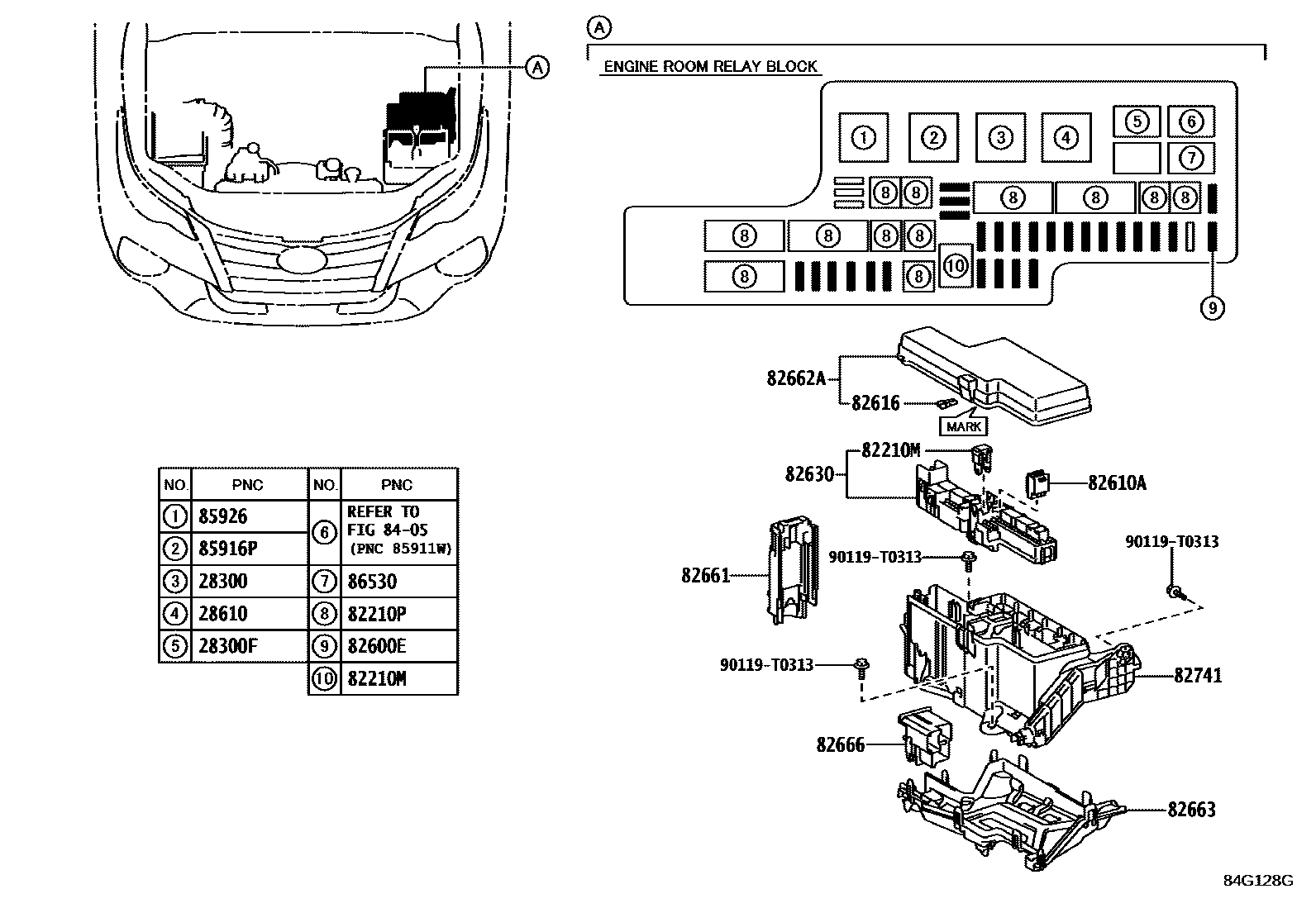

Diagram

36 parts
