Toyota Sienna-Hybrid 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82663-08120 | COVER, RELAY BLOCK, LOWER, NO.2 | 1 | |
Note:AXLH4# Production:2021-12 – … | |||
| 82741-08100 | BLOCK, ENGINE ROOM RELAY | 1 | |
Note:AXLH4# Production:2021-12 – … | |||
| 82660-08110 | BLOCK ASSY, RELAY | 1 | |
Note:AXLH4# Production:2021-12 – … | |||
| 82662-08120 | COVER, RELAY BLOCK, UPPER, NO.2 | 1 | |
Note:AXLH40 Production:2021-12 – 2024-04 | |||
| 90982-09021 | ENGINE ROOM FUSE | 1 | |
Note:AXLH4# Production:2021-12 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09023 | ENGINE ROOM FUSE | 1 | |
Note:AXLH4# Production:2021-12 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09025 | ENGINE ROOM FUSE | 1 | |
Note:AXLH4# Production:2021-12 – … Spec:30A,MINI FUSE,GRN | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:AXLH4# Production:2021-12 – … | |||
| 82662-08130 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:AXLH4# Production:2021-12 – … | |||
| 82644-45040 | COMPUTER, SEMICONDUCTOR POWER INTEGRATION | 1 | |
Note:AXLH40..E,L,U,X Production:2021-12 – 2024-04 | |||
| 82660-08100 | BLOCK ASSY, RELAY | 1 | |
Note:AXLH4# Production:2021-12 – … | |||
| 82610-08040 | BLOCK ASSY, FUSE | 1 | |
Note:AXLH4# Production:2021-12 – … | |||
| 82666-08370 | HOLDER, CONNECTOR | 1 | |
Note:AXLH4# Production:2021-12 – … | |||
| 82661-08040 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:AXLH4# Production:2021-12 – … | |||
| 82663-08110 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:AXLH4# Production:2021-12 – … | |||
| 90987-T2005 | RELAY ASSY, WINDSHIELD DEICER | 1 | |
Note:AXLH4# Production:2021-12 – 2025-09 Replacements:90987-02027 (fitment: unknown) | |||
| 90987-02027 | RELAY(FOR SECURITY WARNING) | 1 | |
Note:AXLH4# Production:2021-12 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY(FOR SECURITY WARNING) | 1 | |
Note:AXLH4# Production:2021-12 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-02027 | RELAY, VVT | 1 | |
Note:AXLH4# Production:2021-12 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, VVT | 1 | |
Note:AXLH4# Production:2021-12 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-02027 | RELAY, HYBRID WATER PUMP | 1 | |
Note:AXLH40 Production:2021-12 – 2024-04 Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, HYBRID WATER PUMP | 1 | |
Note:AXLH4# Production:2021-12 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-T2005 | RELAY (FOR OIL PUMP MOTOR) | 1 | |
Note:AXLH4# Production:2021-12 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-02027 | RELAY, INJECTOR | 1 | |
Note:AXLH4# Production:2021-12 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, INJECTOR | 1 | |
Note:AXLH4# Production:2021-12 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| — | Part does not apply to this vehicle configuration. | 28371M | — |
| — | Part does not apply to this vehicle configuration. | 28371N | — |
| 90987-T2004 | RELAY, IGP | 1 | |
Note:A25DFXS..AXLH4# Production:2021-12 – … | |||
| 90987-T2004 | RELAY, WINDSHIELD WIPER | 1 | |
Note:AXLH4# Production:2021-12 – … | |||
| 90987-T2005 | RELAY ASSY, HORN | 1 | |
Note:AXLH4# Production:2021-12 – … Replacements:90987-02027 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 86220A | — |
| 82620-08100 | BLOCK ASSY, FUSIBLE LINK | 1 | |
Note:AXLH4# Production:2021-12 – … | |||
| 90987-02025 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | 1 | |
Note:AXLH4# Production:2021-12 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2004 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | 1 | |
Note:AXLH4# Production:2021-12 – … Spec:(L) Spec Note:(Local made) | |||
| 90987-02027 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | 1 | |
Note:AXLH4# Production:2021-12 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | 1 | |
Note:AXLH4# Production:2021-12 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90987-02027 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | 1 | |
Note:AXLH4# Production:2021-12 – … Spec:(J) Spec Note:(Japan made) | |||
| 90987-T2005 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | 1 | |
Note:AXLH4# Production:2021-12 – … Replacements:90987-02027 (fitment: unknown) Spec:(L) Spec Note:(Local made) | |||
| 90119-06A18 | standard | — | |
| 90119-C0564 | standard | — | |
| 94151-80600 | standard | — | |
| 90178-C0032 | standard | — | |
| 90178-06025 | standard | — | |
| 90178-C0139 | standard | — | |
| 90119-06558 | standard | — | |

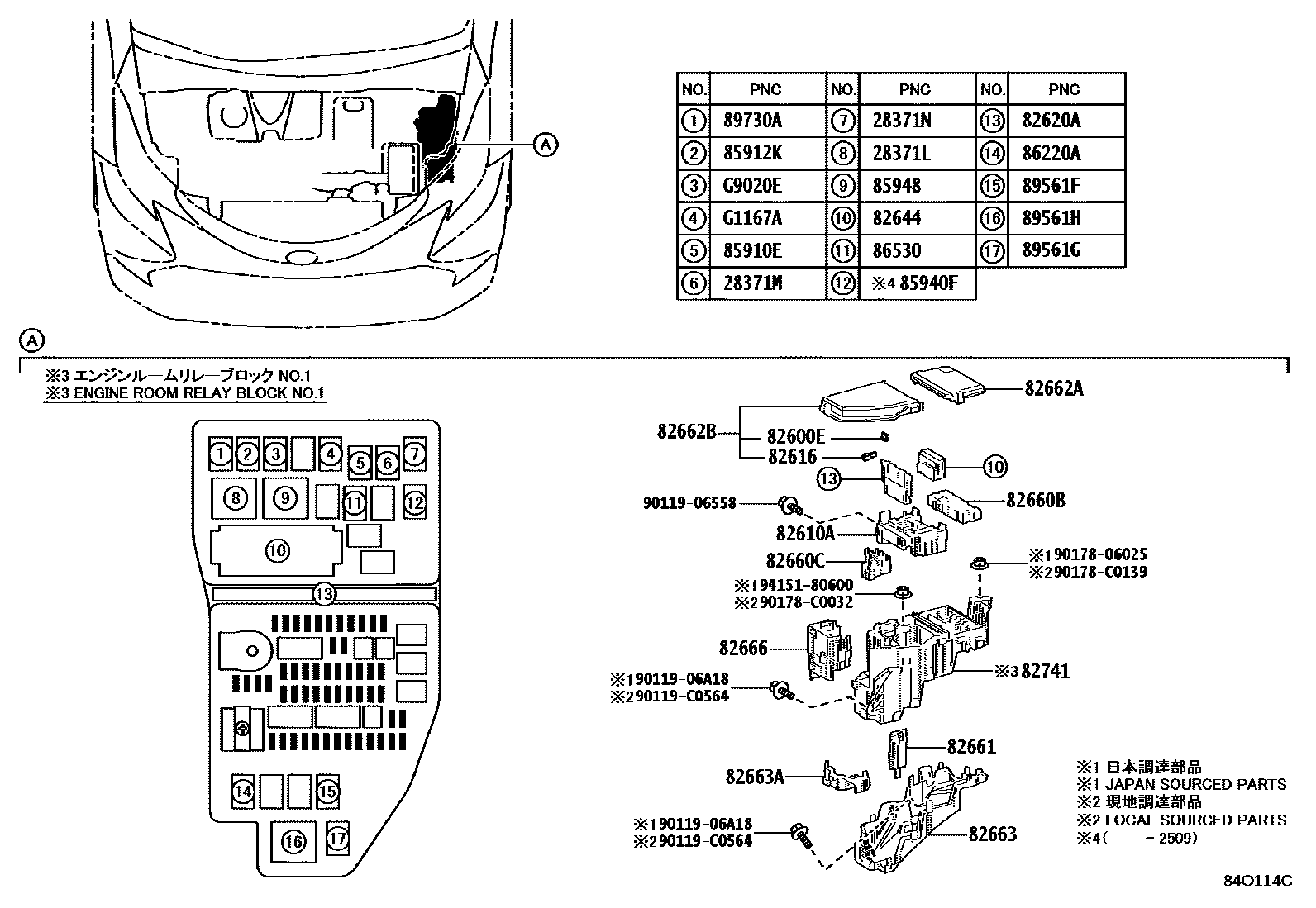

Diagram
42 parts
