Toyota Wildlander-Gtmc 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84250-02G30 | SWITCH ASSY, STEERING PAD | 1 | |
Note:AXAH5#,MXAA5#..A,G,M Production:2021-12 – 2023-03 | |||
| 84308-02150 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:AXAH5#,MXAA5# Production:2020-04 – 2023-03 | |||
| 84652-0R150 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:AXAH5#,MXAA5#..A,M,X Production:2020-04 – 2023-03 | |||
| 8924B-0R030 | SENSOR, STEERING | 1 | |
Note:AXAH5#,MXAA5# Production:2020-04 – 2023-03 | |||
| 84319-02050 | HOUSING, STEERING WHEEL SWITCH | 1 | |
Note:AXAH5#,MXAA5# Production:2020-04 – 2023-03 | |||
| 84329-02190 | SWITCH, TURN SIGNAL | 1 | |
Note:AXAH5#,MXAA5# Production:2020-04 – 2023-03 | |||
| — | Part does not apply to this vehicle configuration. | 84450 | — |
| — | Part does not apply to this vehicle configuration. | 84052 | — |
| 84140-02G80 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:AXAH5#,MXAA5# Production:2020-04 – 2023-03 | |||
| 90159-C0010 | standard | — | |

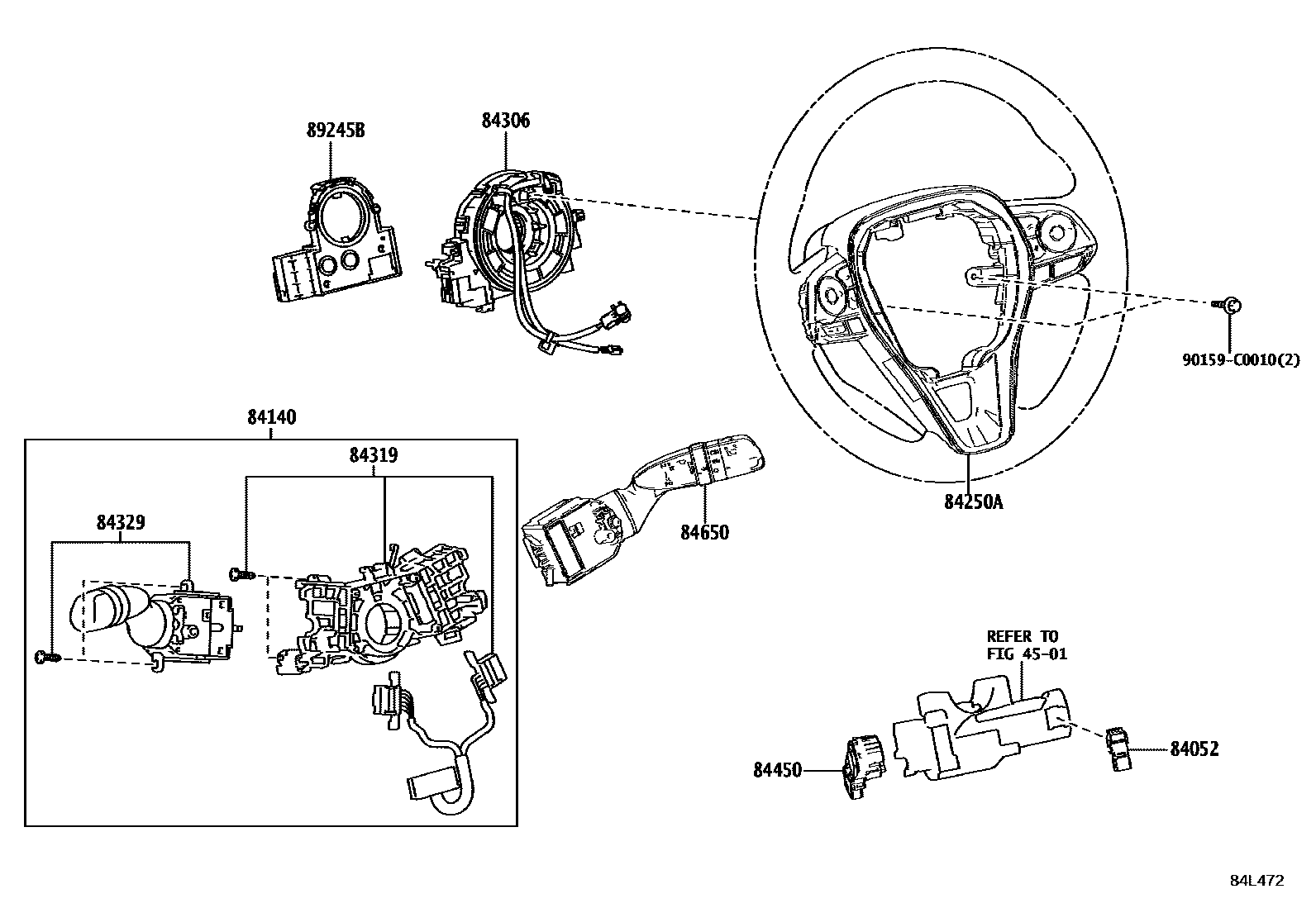

Diagram
8 parts
