Toyota Wildlander-Gtmc 2024 — Starter
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 28249-37100 | RELAY, STARTER INRUSH CURRENT REDUCTION | 1 | |
Note:M20CFKS..MXAA5# Production:2024-05 – … | |||
| 28150-F2170 | STARTER KIT, REPAIR SERVICE | 1 | |
Note:M20CFKS..MXAA5# Production:2024-05 – … | |||
| 28140-F2170 | HOLDER ASSY, STARTER BRUSH | 1 | |
Note:M20CFKS..MXAA5# Production:2024-05 – … | |||
| 28160-F2170 | ARMATURE ASSY, STARTER | 1 | |
Note:M20CFKS..MXAA5# Production:2024-05 – … | |||
| 28021-F2170 | CLUTCH SUB-ASSY, STARTER CENTER BEARING | 1 | |
Note:M20CFKS..MXAA5# Production:2024-05 – … | |||
| 28100-F2090 | STARTER ASSY | 1 | |
Note:M20CFKS..MXAA5# Production:2024-05 – … Spec:12V 1.2KW | |||
| 90105-10592 | standard | — | |
| 90105-C0332 | standard | — | |
| 90178-C0034 | standard | — | |
| 90182-C0009 | standard | — | |

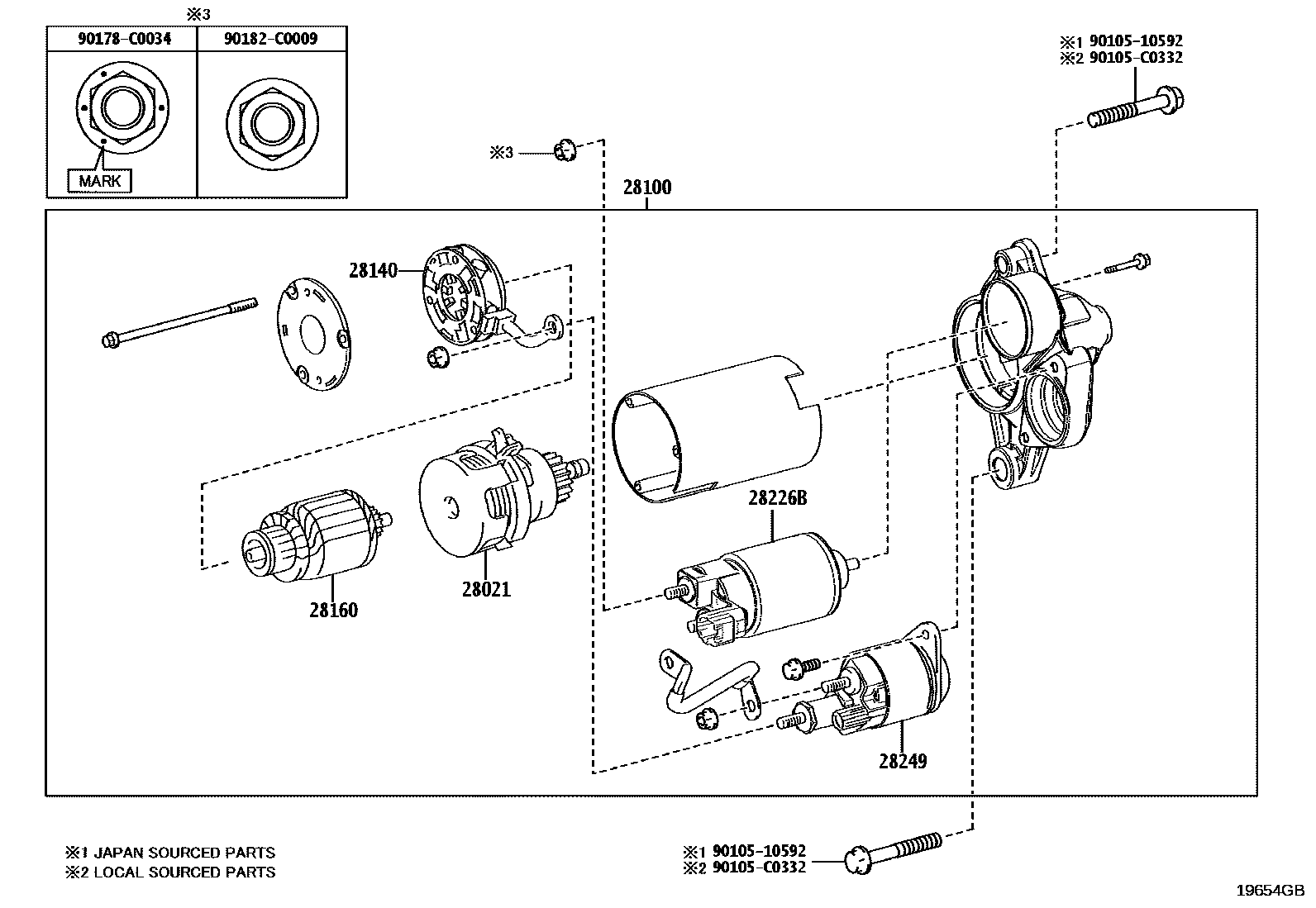

Diagram
10 parts
