Toyota BZ3X 2025 — Front Fender Apron & Dash Panel
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 57101-YL010 | MEMBER SUB-ASSY, FRONT SIDE, RH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 57102-YL010 | MEMBER SUB-ASSY, FRONT SIDE, LH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 51465-YL010 | BRACE, RADIATOR SUPPORT, UPPER RH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 51466-YL010 | BRACE, RADIATOR SUPPORT, UPPER LH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 52141-YL010 | STAY, FRONT BUMPER, RH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53213-YL010 | SUPPORT, RADIATOR, UPPER RH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53633-YL010 | BRACKET, FRONT BUMPER ARM MOUNTING, NO.3 | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 52957-YL010 | BRACKET, HOOD DAMPER MOUNTING | 2 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53214-YL010 | SUPPORT, RADIATOR, UPPER LH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53216-YL010 | SUPPORT, RADIATOR, UPPER | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53217-YL010 | BRACE, HOOD LOCK SUPPORT | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53218-YL010 | SUPPORT, RADIATOR, LOWER | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53238-YL010 | BRACKET, HOOD BUMPER MOUNTING | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 57104-YL010 | MEMBER SUB-ASSY, FRONT CROSS | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – 2026-04 | |||
| 53203-YL011 | SUPPORT SUB-ASSY, RADIATOR, LH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53201-YL010 | SUPPORT SUB-ASSY, RADIATOR | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … Spec:RH | |||
| 53201-YL020 | SUPPORT SUB-ASSY, RADIATOR | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … Spec:LH | |||
| 53202-YL011 | SUPPORT SUB-ASSY, RADIATOR, RH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53214-YL020 | SUPPORT, RADIATOR, UPPER LH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 90541-C0013 | CUSHION, HOOD BUMPER | 2 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 61151-YL010 | RETAINER, FRONT BODY PILLAR UPPER HINGE | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 61152-YL010 | RETAINER, FRONT BODY PILLAR UPPER HINGE, LH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53731-YL010 | MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53732-YL020 | PATCH, FRONT FENDER APRON, LH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53743-YL010 | REINFORCEMENT, FRONT FENDER APRON, FRONT RH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53785-YL010 | GUSSET, FRONT FENDER APRON, UPPER RH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53786-YL010 | GUSSET, FRONT FENDER APRON, UPPER LH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53822-YL010 | BRACKET, FRONT FENDER, REAR NO.1 LH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53821-YL010 | BRACKET, FRONT FENDER, REAR NO.1 RH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53823-YL020 | GUSSET, FRONT FENDER, RH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53824-YL020 | GUSSET, FRONT FENDER, LH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 53213-YL020 | SUPPORT, RADIATOR, UPPER RH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 51460-YL010 | SUPPORT SUB-ASSY, RADIATOR, UPPER | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 90105-C0496 | standard | — | |
| 90105-C0484 | standard | — | |
| 90178-C0152 | standard | — | |
| 90174-C0047 | standard | — | |
| 90105-C0457 | standard | — | |

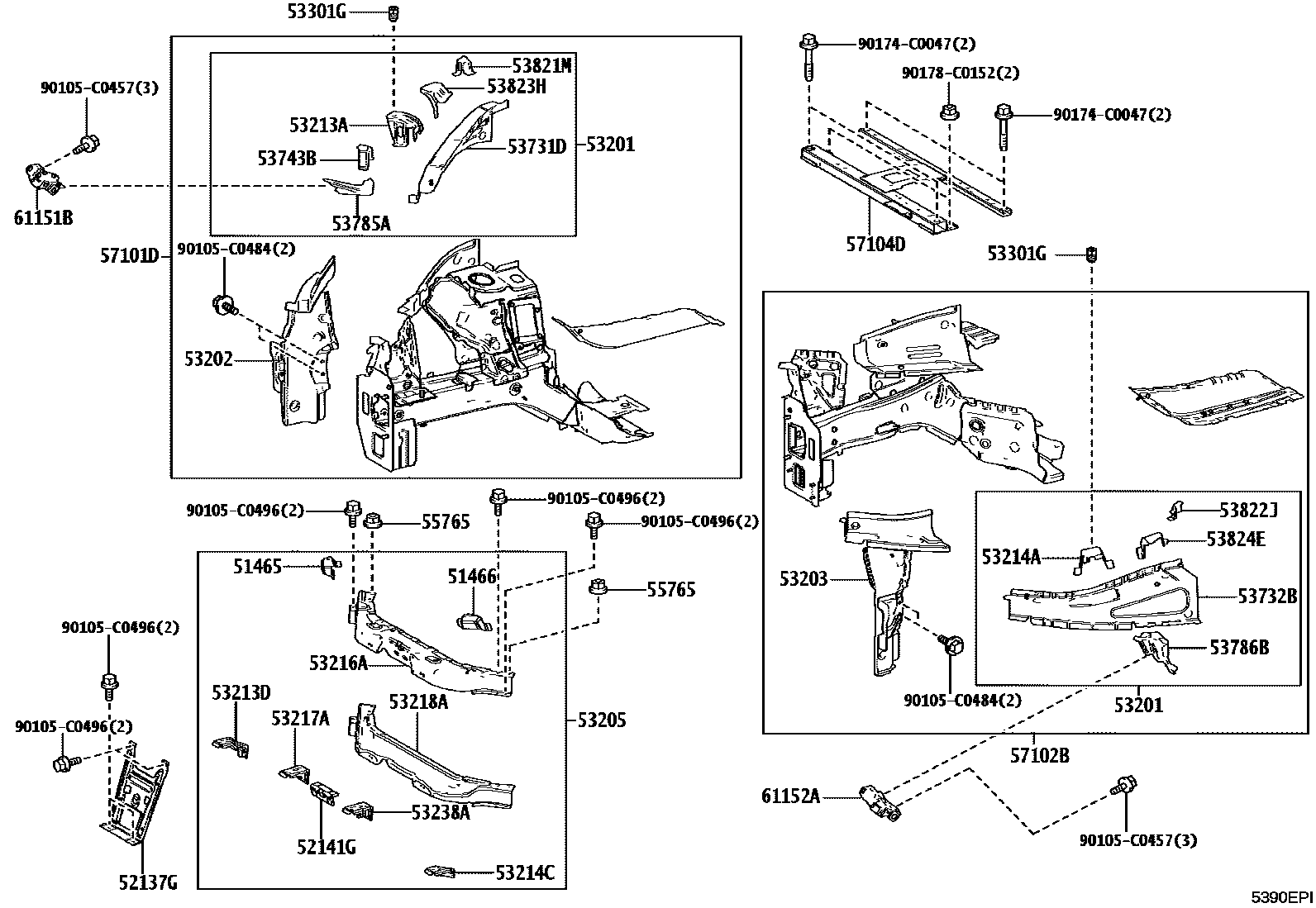

Diagram
38 parts
