Toyota BZ3X 2025 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84040-YL011-C1 | MASTER SWITCH ASSY,MULTIPLEX NETWORK | 1 | |
Note:XEGM10,YEGM10..L,M,P Production:2025-02 – … Spec:REGIONAL COLOR,TRIM2#,3# | |||
| — | Part does not apply to this vehicle configuration. | 88210A | — |
| 84810-YL011-C1 | SWITCH ASSY, POWER WINDOW REGULATOR | 3 | |
Note:XEGM10,YEGM10..L,M,P Production:2025-02 – … Spec:REGIONAL COLOR,TRIM2#,3# | |||
| 85972-YL022 | COMPUTER, SLIDE DOOR CONTROL, RH | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 85972-YL012 | COMPUTER, SLIDE DOOR CONTROL | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 89228-YL010 | COMPUTER, MULTIPLEX NETWORK REAR JUNCTION | 1 | |
Note:XEGM10,YEGM10 Production:2025-02 – … | |||
| 84390-YL011 | SWITCH ASSY, ELECTRIC PARKING BRAKE | 1 | |
Note:XEGM10,YEGM10 Production:2025-05 – … | |||
| 84040-YL020-C1 | SWITCH, DOOR CONTROL | 1 | |
Note:XEGM10,YEGM10..L,M,P Production:2025-02 – … Spec:REGIONAL COLOR,TRIM2#,3# | |||
| 88162-YL090 | SENSOR, BLIND SPOT MONITOR, RH | 1 | |
Note:XEGM10,YEGM10..M,P Production:2025-02 – 2026-04 | |||
| 88162-YL090 | SENSOR, BLIND SPOT MONITOR, LH | 1 | |
Note:XEGM10,YEGM10..M,P Production:2025-02 – 2026-04 | |||
| 84930-YL010-C0 | SWITCH ASSY, DOOR CONTROL | 1 | |
Note:XEGM10,YEGM10..L,M,P Production:2025-02 – … Spec:REGIONAL COLOR,TRIM2#,3#,4# | |||
| 84930-YL020-C0 | SWITCH ASSY, DOOR CONTROL | 1 | |
Note:XEGM10,YEGM10..M,P Production:2025-02 – … Spec:REGIONAL COLOR,TRIM2#,3#,4# | |||
| 89222-YL011 | COMPUTER, MULTIPLEX NETWORK DOOR | 1 | |
Note:XEGM10,YEGM10..M,P Production:2025-08 – … | |||
| 90167-C0033 | standard | — | |
| 90105-C0450 | standard | — | |
| 90159-C0055 | standard | — | |
| 90467-C0108 | standard | — | |
| 48714-YL010 | standard | — | |
| 90174-C0046 | standard | — | |
| 90178-C0155 | standard | — | |

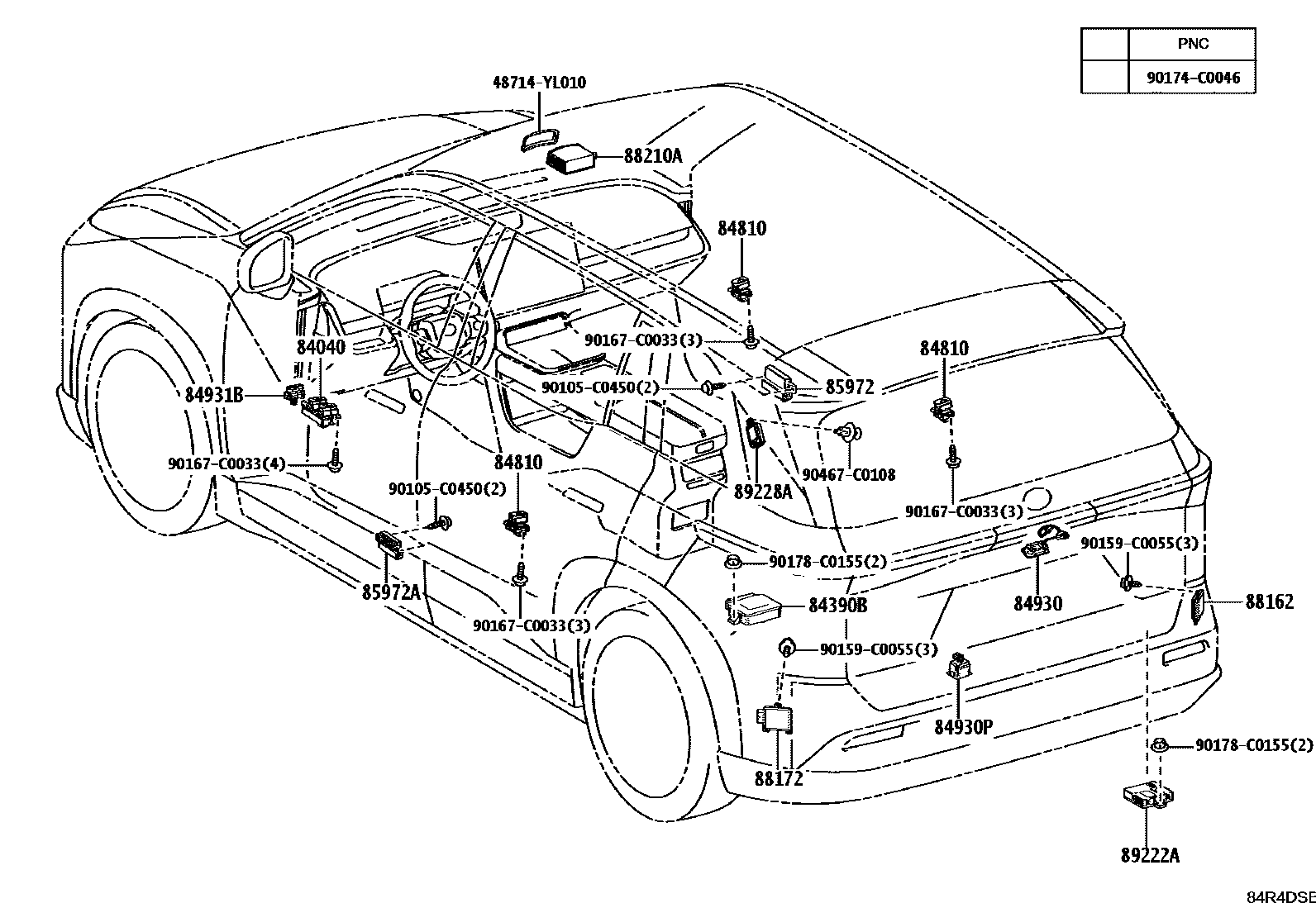

Diagram
19 parts
