Toyota BZ3X 2025 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84921-YL020-E1 | KNOB, POWER SEAT SWITCH, RH (FOR SLIDE & VERTICAL) | 1 | |
Note:XEGM10,YEGM10..L,M,P Production:2025-02 – … Spec:VIBRANT ORANGE,TRIM3# | |||
| 84922-YL030 | SWITCH, FRONT POWER SEAT, RH | 1 | |
Note:XEGM10,YEGM10..L,M,P Production:2025-02 – 2026-04 Spec:SEAT PACKAGE | |||
| 84922-YL040 | SWITCH, FRONT POWER SEAT, LH | 1 | |
Note:XEGM10,YEGM10..L,M,P Production:2025-02 – … | |||
| 71261-YL010 | COMPUTER ASSY, POSITION CONTROL, RH | 1 | |
Note:XEGM10,YEGM10..L,M,P Production:2025-02 – 2026-04 Spec:SEAT PACKAGE | |||
| 84921-YL030-E1 | KNOB, POWER SEAT SWITCH, LH (FOR RECLINING) | 1 | |
Note:XEGM10,YEGM10..L,M,P Production:2025-02 – … Spec:VIBRANT ORANGE,TRIM3# | |||
| 84921-YL010-E1 | KNOB, POWER SEAT SWITCH, RH (FOR RECLINING) | 1 | |
Note:XEGM10,YEGM10..L,M,P Production:2025-02 – … Spec:VIBRANT ORANGE,TRIM3# | |||
| 84921-YL040-E1 | KNOB, POWER SEAT SWITCH, LH (FOR SLIDE & VERTICAL) | 1 | |
Note:XEGM10,YEGM10..L,M,P Production:2025-02 – … Spec:VIBRANT ORANGE,TRIM3# | |||
| 90167-C0026 | standard | — | |
| 90167-C0028 | standard | — | |

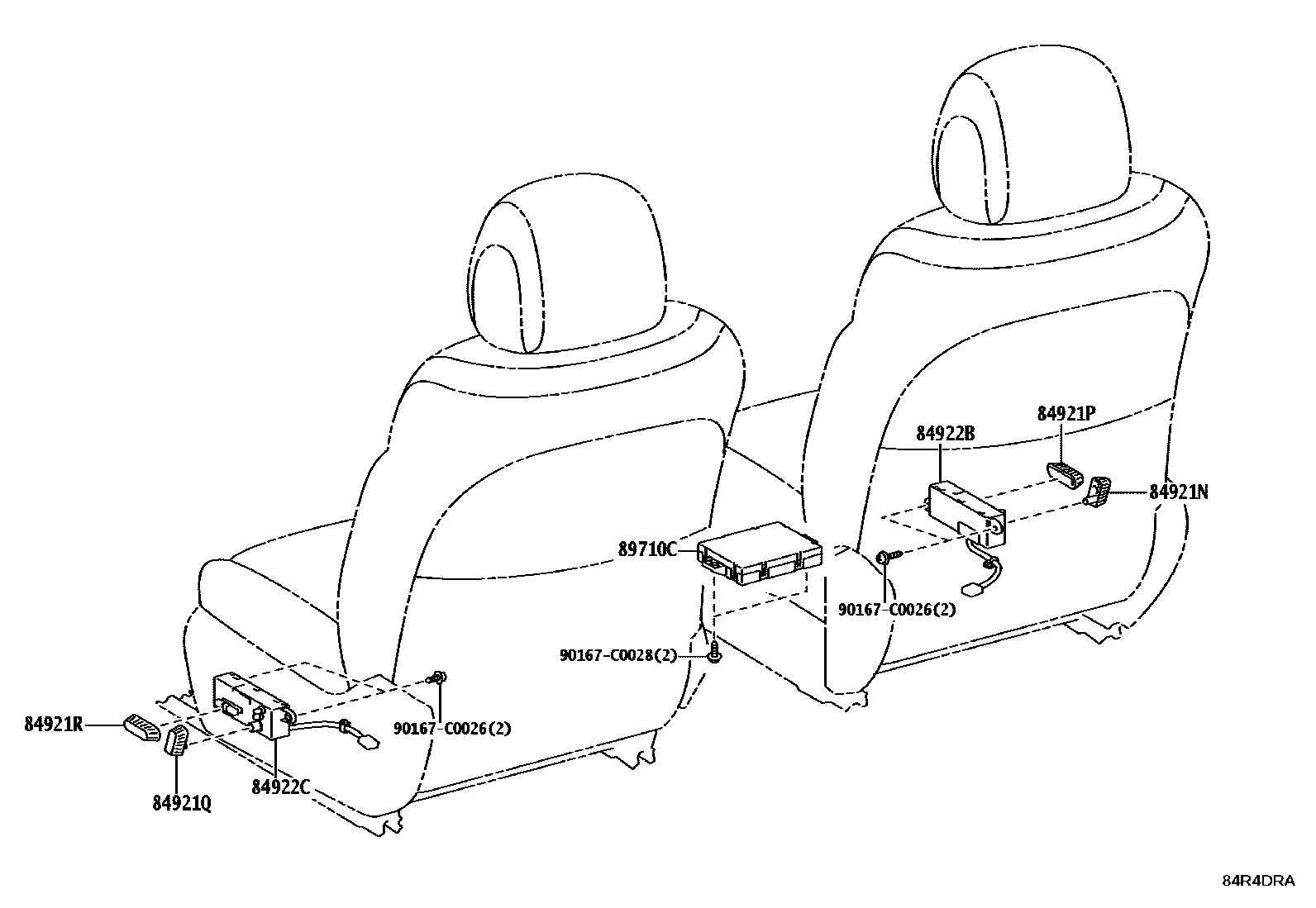

Diagram
9 parts
