Toyota Front-Lander 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84250-0A100 | SWITCH ASSY, STEERING PAD | 1 | |
Note:MXGH10..A;MXGA10..A,E,N Production:2023-04 – … | |||
| 84308-0E030 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:MXGH10..A;MXGA10..A,E,N Production:2023-04 – … | |||
| 84652-0R160 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:MXGH10..A;MXGA10..A,E,N Production:2023-04 – … | |||
| 8924B-0A020 | SENSOR, STEERING | 1 | |
Note:MXGH10..A;MXGA10..A,E,N Production:2023-04 – … Spec:*614 Spec Note:*614(IT IS NECESSARY TO CONNECT TO THE TOYOTA SEVER. REFER TO THE REPAIR MANUAL FOR DETAILS.) | |||
| 84319-02050 | HOUSING, STEERING WHEEL SWITCH | 1 | |
Note:MXGH10..A;MXGA10..A,E,N Production:2023-04 – … | |||
| 84329-02200 | SWITCH, TURN SIGNAL | 1 | |
Note:MXGA10..N Production:2023-04 – … | |||
| — | Part does not apply to this vehicle configuration. | 84450 | — |
| — | Part does not apply to this vehicle configuration. | 84052 | — |
| 90159-C0010 | standard | — | |

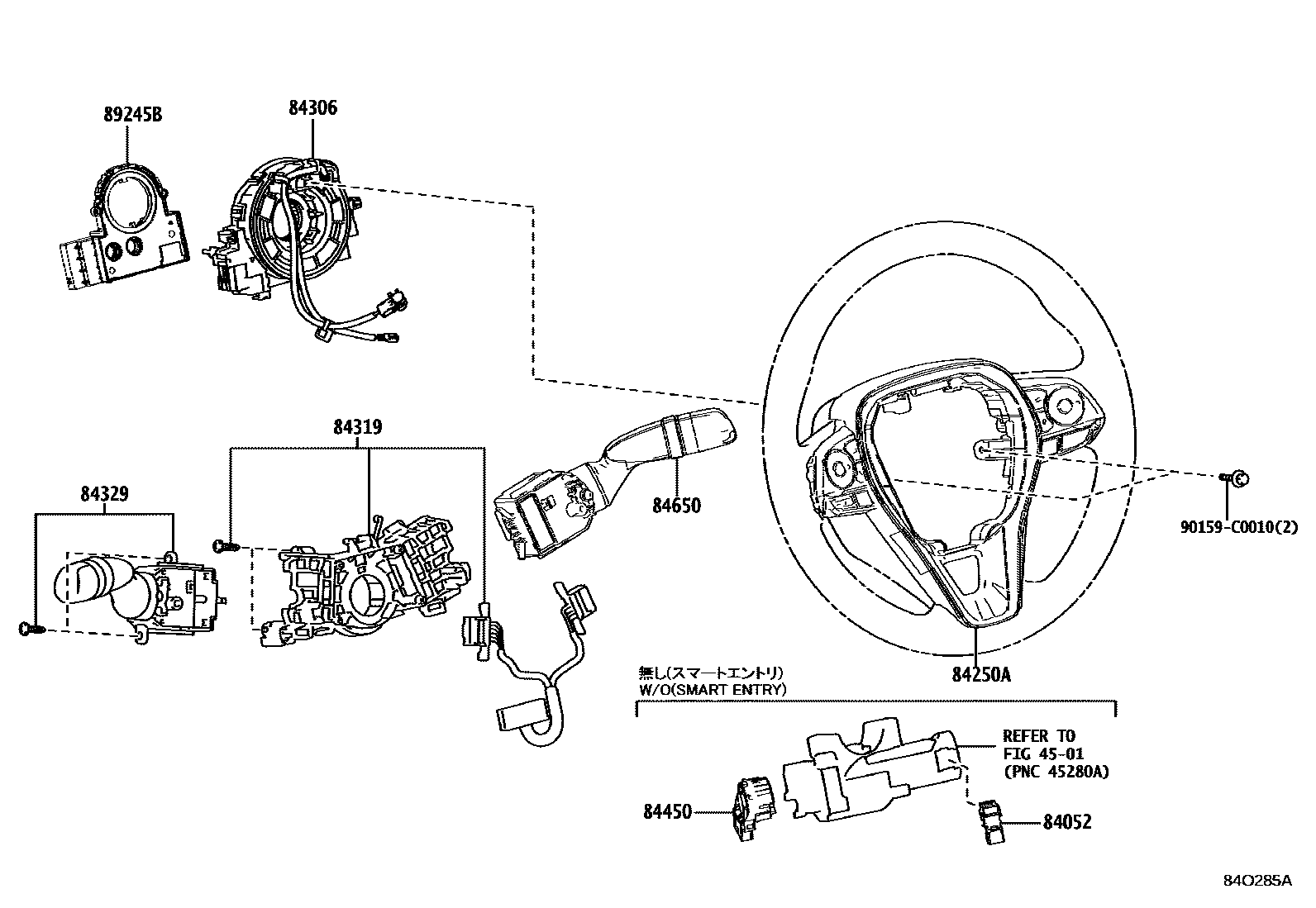

Diagram
7 parts
