Toyota Levin-Hybrid 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 82660N | — |
| — | Part does not apply to this vehicle configuration. | 82663A | — |
| 89220-02B62 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:NRE210..E Production:2021-11 – 2023-04 | |||
| — | Part does not apply to this vehicle configuration. | 82660P | — |
| — | Part does not apply to this vehicle configuration. | 82660M | — |
| — | Part does not apply to this vehicle configuration. | 84841C | — |
| 90987-02027 | RELAY(FOR SECURITY WARNING) | 1 | |
Note:NRE210..E Production:2021-11 – … Spec:MARK 90987-02027 | |||
| 90987-T2005 | RELAY(FOR SECURITY WARNING) | 1 | |
Note:NRE210..E Production:2021-11 – … Replacements:90987-02027 (fitment: unknown) Spec:MARK 90987-T2005 | |||
| — | Part does not apply to this vehicle configuration. | 85916D | — |
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:NRE210..E Production:2019-06 – … Spec:30A,FEMALE,PNK,32V | |||
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:NRE210..E Production:2019-06 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:NRE210..E Production:2019-06 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:NRE210..E Production:2019-06 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:NRE210..E Production:2019-06 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:NRE210..E Production:2019-06 – … Spec:20A,MINI FUSE,YELLOW | |||
| 82672-02170 | COVER, JUNCTION BLOCK | 1 | |
Note:NRE210..E Production:2019-06 – … | |||
| 82730-0Z120 | BLOCK ASSY, DRIVER SIDE JUNCTION | 1 | |
Note:NRE210..E Production:2019-06 – … | |||
| 82673-02320 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:NRE210..E Production:2019-06 – … | |||
| 82715-12X60 | BRACKET, WIRING HARNESS CLAMP | 1 | |
Note:NRE210..E Production:2019-06 – … Spec:(J) Spec Note:(Japan made) | |||
| 82715-0ZC10 | BRACKET, WIRING HARNESS CLAMP | 1 | |
Note:NRE210..E Production:2021-11 – … Spec:(L) Spec Note:(Local made) | |||
| 84345-0R010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:NRE210..E Production:2019-06 – … | |||
| 84340-09340 | SWITCH ASSY, STOP LAMP | 1 | |
Note:NRE210..E Production:2019-06 – … | |||
| 89111-06190 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:NRE210..E Production:2021-04 – 2024-03 | |||
| 82877-F4040 | BOX, COMPUTER INTEGRATION, RH | 1 | |
Note:NRE210..E Production:2019-06 – … | |||
| 89121-0E040 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:NRE210..E Production:2019-06 – … | |||
| 85940-02070 | RELAY ASSY, WINDSHIELD WIPER | 1 | |
Note:NRE210..E Production:2019-06 – … | |||
| 82673-F4080 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:NRE210..E Production:2019-06 – … | |||
| 89650-12K50 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:NRE210..E Production:2019-06 – 2024-09 Spec:JTEKT/DENSO,SPORT PACKAGE | |||
| 90119-06A21 | standard | — | |
| 90178-C0032 | standard | — | |
| 94151-80600 | standard | — | |
| 90179-06274 | standard | — | |
| 90178-C0011 | standard | — | |
| 90119-C0074 | standard | — | |
| 90183-06032 | standard | — | |
| 90178-C0058 | standard | — | |

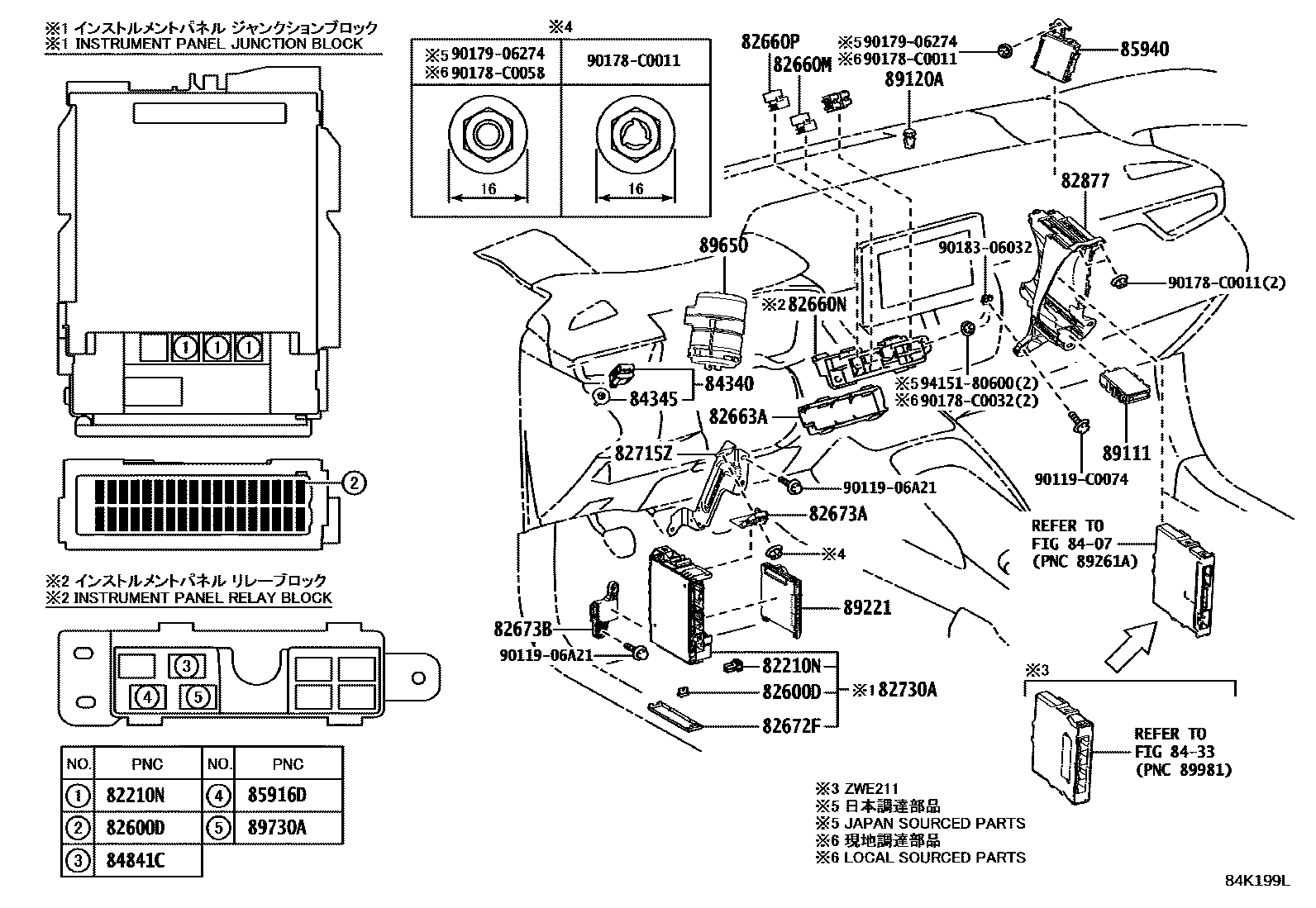

Diagram
30 parts
