Toyota Camry-Hybrid-China 2025 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84250-06C90-C0 | SWITCH ASSY, STEERING PAD | 1 | |
Note:AXVH80,MXVA80,MXVH80..S Production:2024-03 – … Spec:BLACK,TRIM2#,3# | |||
| 84140-02G90 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:AXVH80,MXVA80,MXVH80 Production:2024-03 – … | |||
| 84319-02050 | HOUSING, POWER CURTAIN SWITCH | 1 | |
Note:AXVH80,MXVA80,MXVH80 Production:2024-03 – … | |||
| 84329-02200 | SWITCH, TURN SIGNAL | 1 | |
Note:AXVH80,MXVA80,MXVH80 Production:2024-03 – … | |||
| 84652-0R210 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:AXVH80,MXVA80,MXVH80..G,S Production:2024-03 – … | |||
| 8924B-02080 | SENSOR, STEERING | 1 | |
Note:AXVH80,MXVA80,MXVH80 Production:2024-03 – … Spec:*614 Spec Note:*614(IT IS NECESSARY TO CONNECT TO THE TOYOTA SEVER. REFER TO THE REPAIR MANUAL FOR DETAILS.) | |||
| 84308-0R090 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:AXVH80,MXVA80,MXVH80 Production:2024-03 – … | |||
| 89235-06020 | SWITCH, TILT & TELESCOPIC | 1 | |
Note:AXVH80,MXVH80..G,S Production:2024-03 – 2026-07 Spec:SEAT COMFORT PACKAGE | |||
| 89227-06010 | COMPUTER, MULTIPLEX TILT & TELESCOPIC | 1 | |
Note:AXVH80,MXVH80..G,S Production:2024-03 – 2026-07 Spec:SEAT COMFORT PACKAGE | |||
| 90159-C0010 | standard | — | |

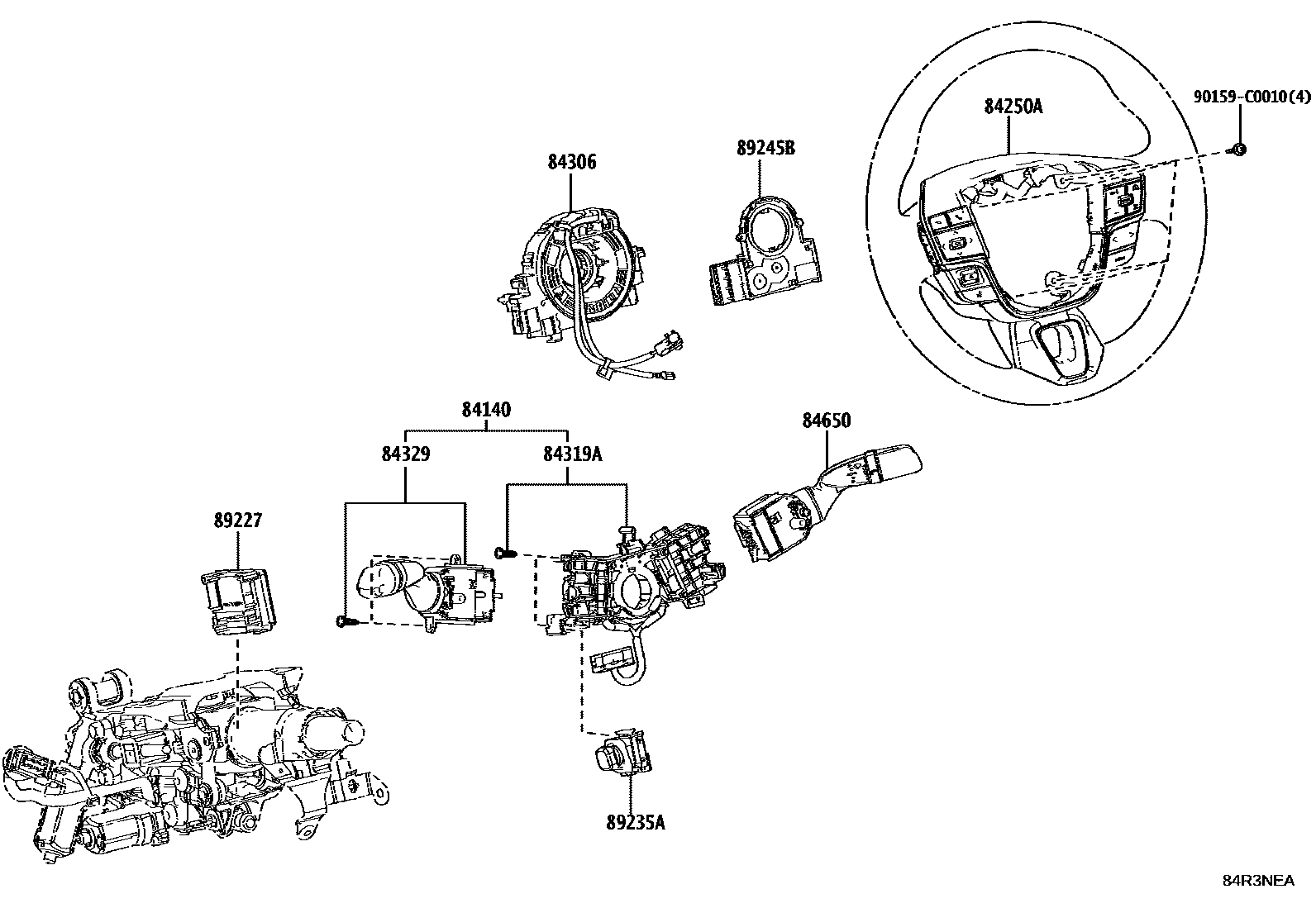

Diagram
10 parts
