Toyota Camry-Hybrid-China 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84390-06030 | SWITCH ASSY, ELECTRIC PARKING BRAKE | 1 | |
Note:AXVH71 Production:2021-03 – … | |||
| 89611-02162 | SWITCH, PUSH START | 1 | |
Note:AXVH71 Production:2021-03 – … | |||
| 84153-06030 | SWITCH, AUTO HIGH BEAM | 1 | |
Note:AXVA70,AXVH71,MXVA71..G,S Production:2021-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 84721B | — |
| — | Part does not apply to this vehicle configuration. | 84470A | — |
| 84332-06130 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 85532-06070 | SOCKET, USB CHARGER | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – 2023-04 | |||
| 84840-06051 | SWITCH ASSY, LUGGAGE DOOR OPENING | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 84841-06031 | SWITCH, FUEL LID OPENER | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 84975-06040 | SWITCH, TRIP | 1 | |
Note:AXVH71..G Production:2021-03 – … Spec:WITHOUT(CLEARANCE & BACK SONER) | |||
| 84988-06140 | SWITCH, VSC OFF | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 85530-52010 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| 85535-06110 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … | |||
| — | Part does not apply to this vehicle configuration. | 84752 | — |
| 83950-06120 | LAMP ASSY, TELLTALE | 1 | |
Note:AXVA70,AXVH71,MXVA71 Production:2021-03 – … Spec:W/O(CLOCK) | |||
| — | Part does not apply to this vehicle configuration. | 85530D | — |
| 90167-C0004 | standard | — | |

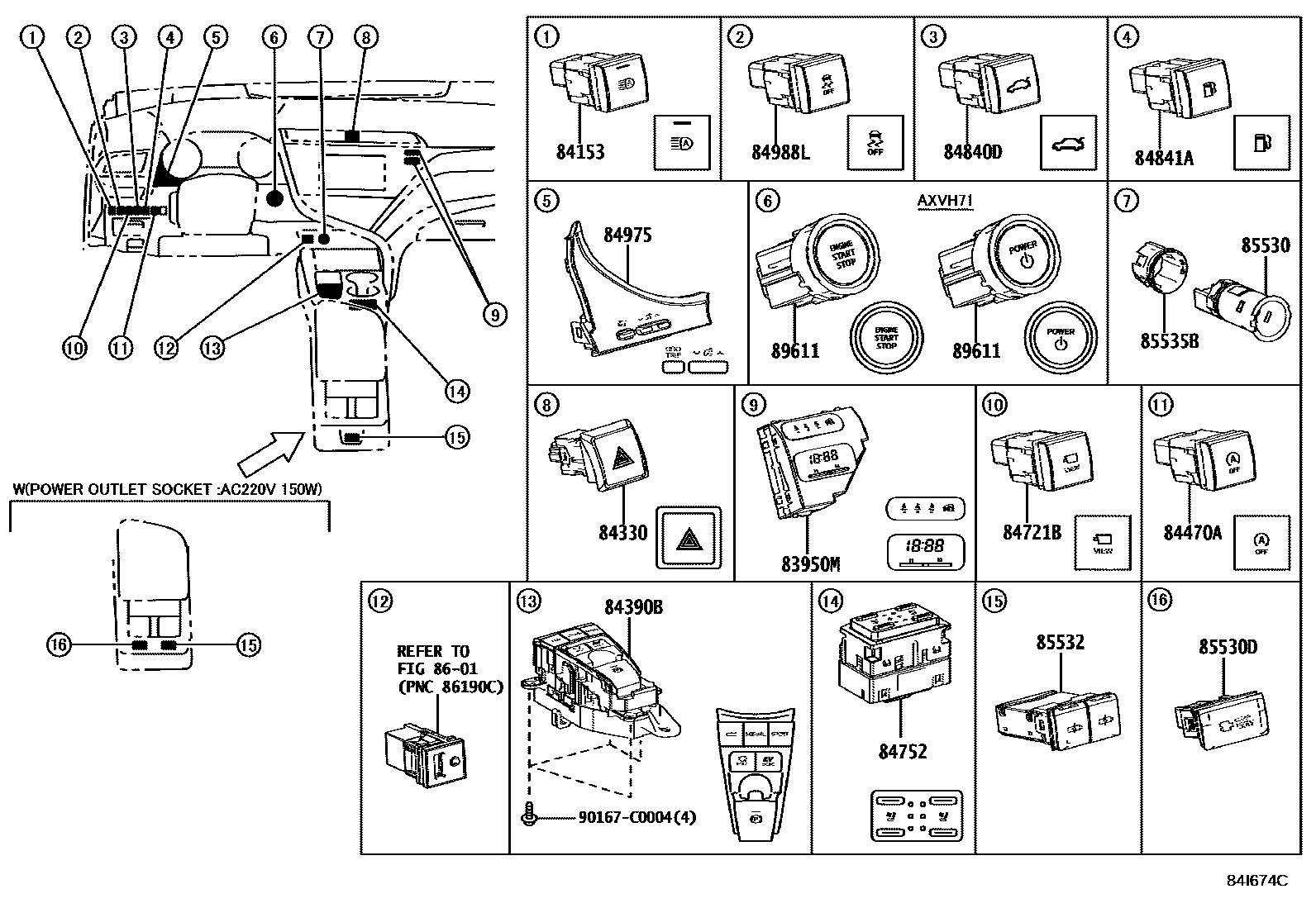

Diagram
13 parts
