Open RegionYearModelModelCode Details
General 2024 LEVIN HYBRID ZWE219L-CEXEBC
Catalog: TOYOTA202608 Engine: 1800CC 16-VALVE DOHC EFI Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Color Code: 040 Trim Code: FB20 Production: 202304-202512 Model Short: ZWE219L-CEXEBC Region: OTHER Native Region: GR

Toyota Levin-Hybrid 2024 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84231-0E070 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 2
Note:MZEA17,ZWE219 Production:2023-04 – …
84040-02660 MASTER SWITCH ASSY,MULTIPLEX NETWORK 1
Note:MZEA17,ZWE219..E,G Production:2023-04 – …
84231-0R010 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 2
Note:MZEA17,ZWE219 Production:2023-04 – …
84810-02410 SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:MZEA17,ZWE219..E,G Production:2023-04 – …
84810-02410 SWITCH ASSY, POWER WINDOW REGULATOR, REAR 2
Note:MZEA17,ZWE219..E,G Production:2023-04 – …
84872-0A190 SWITCH ASSY, OUTER MIRROR 1
Note:MZEA17,ZWE219..E,G Production:2023-04 – …
90164-C0009 standard —
90166-C0004 standard —
90166-C0005 standard —

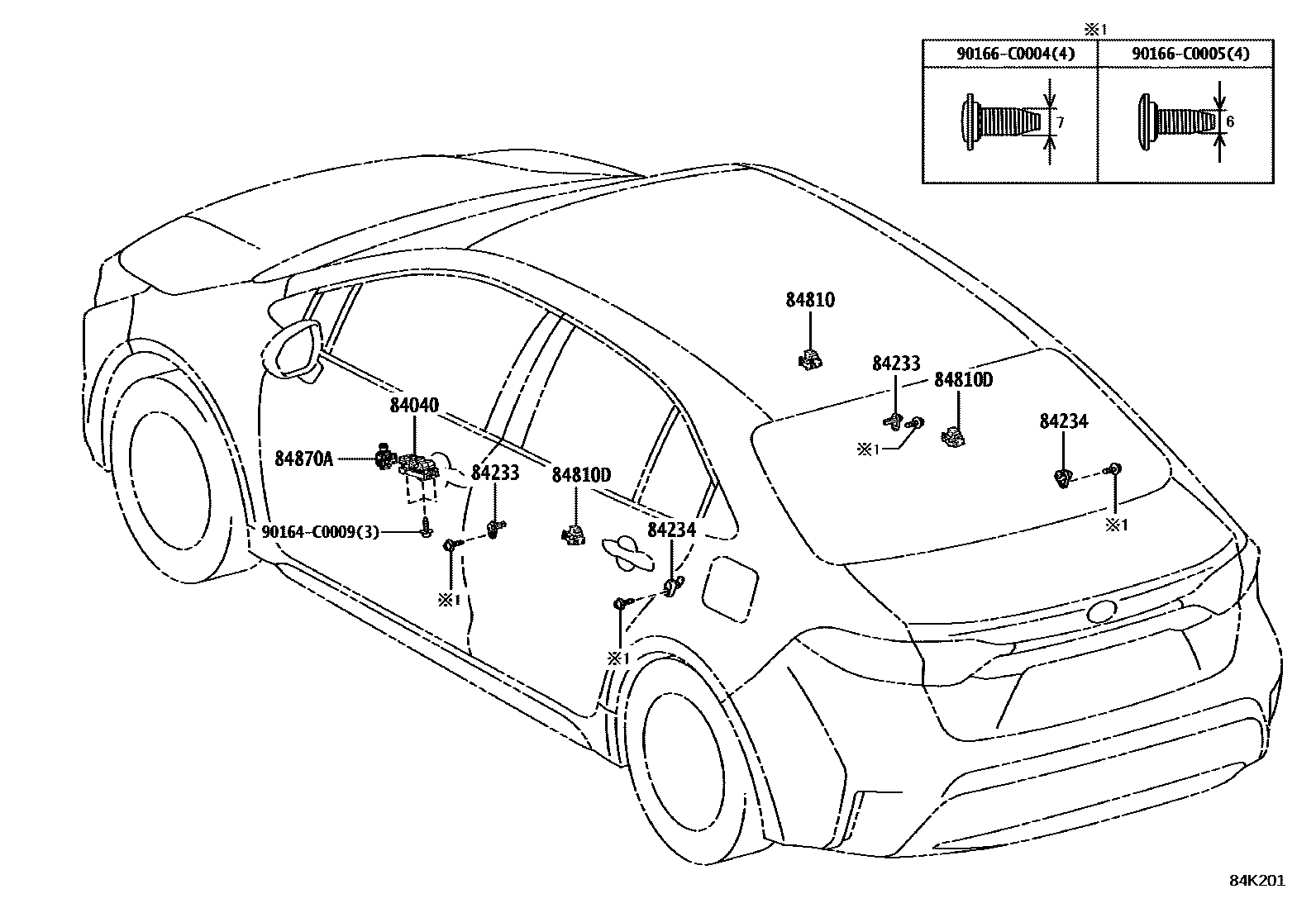

Diagram

9 parts
Toyota Levin-Hybrid 2024 — Switch & Relay & Computer
