Toyota Levin-Hybrid 2025 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89221-02A81 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:MZEA17,ZWE219 Production:2023-09 – … Spec:*614 Spec Note:*614(IT IS NECESSARY TO CONNECT TO THE TOYOTA SEVER. REFER TO THE REPAIR MANUAL FOR DETAILS.) | |||
| 82672-02250 | COVER, JUNCTION BLOCK | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:30A,FEMALE,PNK,32V | |||
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09025 | INSTRUMENT PANEL FUSE | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:30A,MINI FUSE,GRN | |||
| 90982-09026 | INSTRUMENT PANEL FUSE | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:3A,MINI FUSE,VIOLET | |||
| 82730-0Z210 | BLOCK ASSY, DRIVER SIDE JUNCTION | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 82673-02420 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 82715-0ZC10 | BRACKET, WIRING HARNESS CLAMP | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:(L) Spec Note:(Local made) | |||
| 82715-12X60 | BRACKET, WIRING HARNESS CLAMP | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:(J) Spec Note:(Japan made) | |||
| 84345-0R010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 84340-09460 | SWITCH ASSY, STOP LAMP | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 89121-0E040 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 85940-02090 | RELAY ASSY, WINDSHIELD WIPER | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 82673-02430 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 89650-02B00 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … Spec:JTEKT/DENSO,*614 Spec Note:JTEKT/DENSO,*614(IT IS NECESSARY TO CONNECT TO THE TOYOTA SEVER. REFER TO THE REPAIR MANUAL FOR DETAILS.) | |||
| 82877-02110 | BOX, COMPUTER INTEGRATION, RH | 1 | |
Note:MZEA17,ZWE219 Production:2023-04 – … | |||
| 89111-12170 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:ZWE219 Production:2023-04 – … Spec:*614 Spec Note:*614(IT IS NECESSARY TO CONNECT TO THE TOYOTA SEVER. REFER TO THE REPAIR MANUAL FOR DETAILS.) | |||
| 90119-06A21 | standard | — | |
| 90179-06274 | standard | — | |
| 90178-C0011 | standard | — | |
| 90119-C0074 | standard | — | |
| 90178-C0058 | standard | — | |
| 90183-06032 | standard | — | |
| 94151-80600 | standard | — | |
| 90178-C0032 | standard | — | |

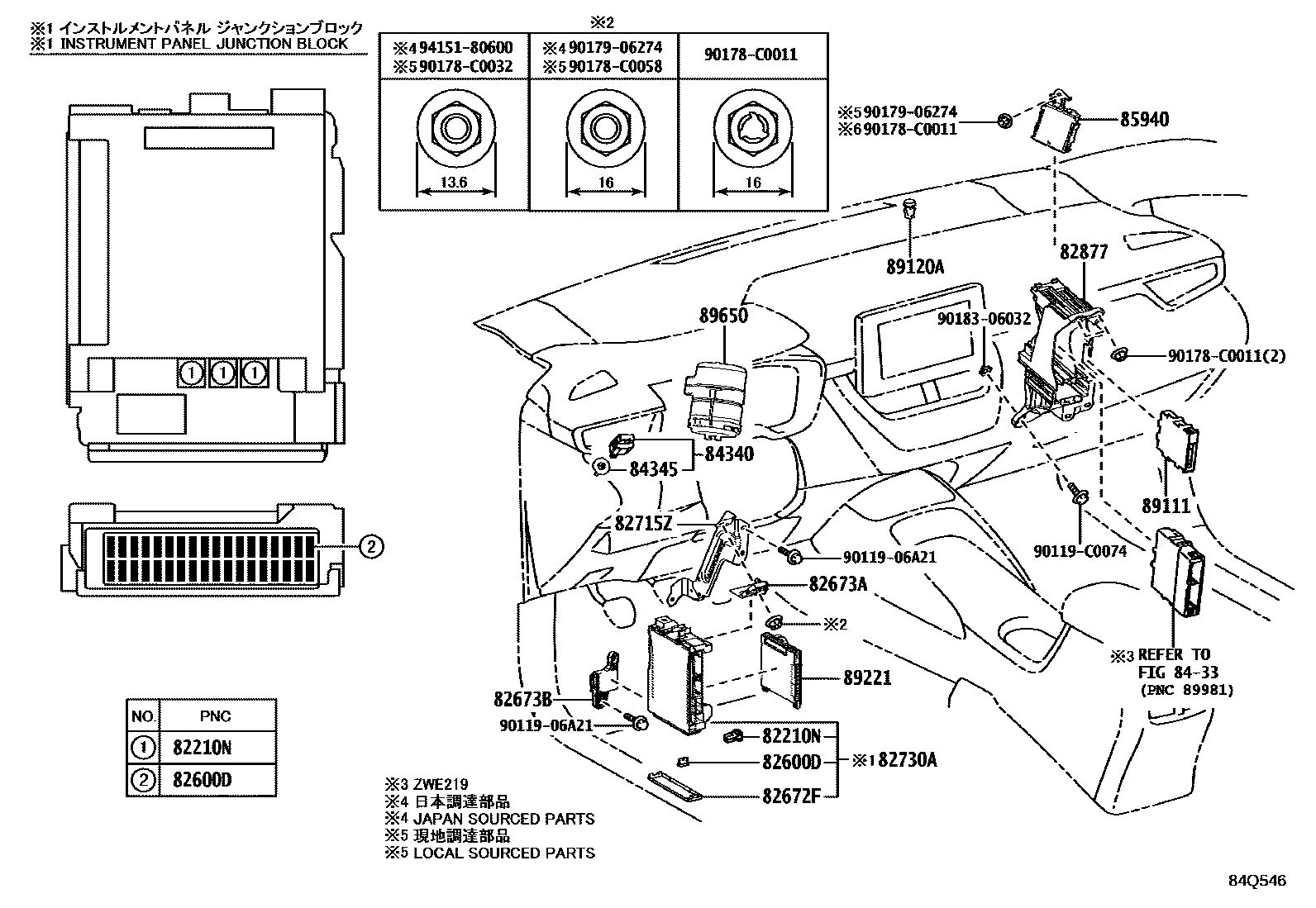

Diagram
30 parts
