Toyota RAV4-SFTM 2025 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| — | Part does not apply to this vehicle configuration. | 82610C | — |
| — | Part does not apply to this vehicle configuration. | 82662B | — |
| — | Part does not apply to this vehicle configuration. | 82663A | — |
| — | Part does not apply to this vehicle configuration. | 82740A | — |
| 82620-48270 | BLOCK ASSY, FUSIBLE LINK | 1 | |
Note:MXAA5# Production:2024-09 – … | |||
| 82610-48040 | BLOCK ASSY, FUSE | 1 | |
Note:MXAA5# Production:2024-09 – … | |||
| 82660-42100 | BLOCK ASSY, RELAY, ENGINE ROOM | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 82660-42110 | BLOCK ASSY, RELAY | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 82661-42070 | COVER, RELAY BLOCK, NO.1 | 1 | |
Note:MXAA5# Production:2024-09 – … | |||
| 82663-0R100 | COVER, RELAY BLOCK, LOWER | 1 | |
Note:MXAA5# Production:2024-09 – … | |||
| 82740-0R060 | BLOCK ASSY, ENGINE ROOM RELAY | 1 | |
Note:MXAA5# Production:2024-09 – … | |||
| 90982-09019 | ENGINE ROOM FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | ENGINE ROOM FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | ENGINE ROOM FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | ENGINE ROOM FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | ENGINE ROOM FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09025 | ENGINE ROOM FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:30A,MINI FUSE,GRN | |||
| 90982-08283 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:30A,TERM.:FEMALE,PNK | |||
| 90982-08285 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:50A,FEMALE,RED,32VDC | |||
| 90982-08298 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:30A,TERMINAL:FEMALE | |||
| 90982-08300 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:50A-30A-30A,FEMALE | |||
| 90982-08302 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:50A-30A-50A,FEMALE | |||
| 90982-08303 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:MXAA5# Production:2024-09 – … Spec:50A-50A-50A,FEMALE | |||
| 90982-08312 | ENGINE ROOM FUSIBLE LINK | 1 | |
Note:MXAA5# Production:2024-09 – … Spec:50A,FEMALE,RED,58VDC | |||
| 90987-T2005 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | 1 | |
Note:MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2005 | RELAY, WINDSHIELD WIPER | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2005 | RELAY, INJECTOR | 1 | |
Note:MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2005 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | 1 | |
Note:MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2005 | RELAY ASSY, HORN | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| 90987-T2005 | RELAY, VVT | 1 | |
Note:MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| 28300-21020 | RELAY ASSY, STARTER | 1 | |
Note:M20..MXAA5# Production:2024-09 – … | |||
| 90987-T2005 | RELAY, FOG LAMP | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 85912 | — |
| 90987-T2004 | RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.3 | 1 | |
Note:MXAA5# Production:2024-09 – … | |||
| 90987-T2005 | RELAY, HEADLAMP | 2 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| 82616-58010 | PULLER, FUSE | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … | |||
| 82662-0R292 | COVER, RELAY BLOCK, UPPER, NO.1 | 1 | |
Note:MXAA5# Production:2024-09 – … | |||
| 90982-09023 | FUSE, FUSE BLOCK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09025 | FUSE, FUSE BLOCK | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Spec:30A,MINI FUSE,GRN | |||
| 90987-T2005 | RELAY, RUNNING LIGHT | 1 | |
Note:AXAL5#,MXAA5# Production:2024-09 – … Replacements:90987-02027 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 85926 | — |
| — | Part does not apply to this vehicle configuration. | 87989 | — |
| — | Part does not apply to this vehicle configuration. | 82662E | — |
| — | Part does not apply to this vehicle configuration. | 82663C | — |

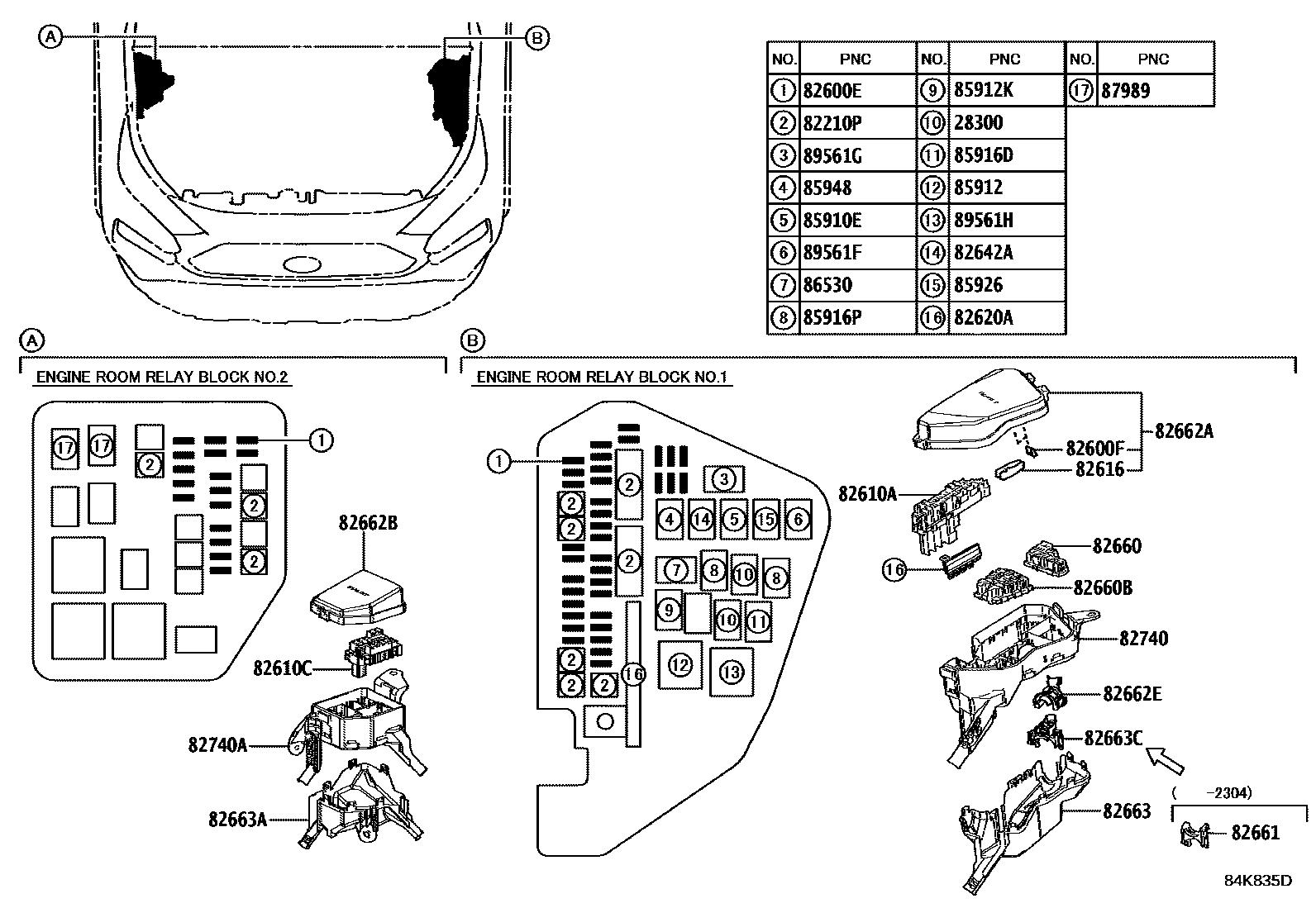

Diagram
35 parts
