Toyota RAV4-SFTM 2023 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 85535-0R070 | COVER, POWER OUTLET SOCKET, NO.1 | 1 | |
Note:AXAL5#,MXAA5# Production:2023-04 – 2024-09 | |||
| 85530-07020 | SOCKET ASSY, POWER OUTLET, NO.1 | 1 | |
Note:AXAL5#,MXAA5# Production:2023-04 – 2024-09 | |||
| — | Part does not apply to this vehicle configuration. | 85535E | — |
| 84010-0R270 | CONTROL & PANEL ASSY, INTEGRATION | 1 | |
Note:MXAA52 Production:2023-04 – 2024-09 Spec:TYPE B:REFER ILLUST. | |||
| — | Part does not apply to this vehicle configuration. | 85535H | — |
| — | Part does not apply to this vehicle configuration. | 85530D | — |
| — | Part does not apply to this vehicle configuration. | 85530E | — |
| 85532-0R120 | SOCKET, USB CHARGER | 1 | |
Note:AXAL5#,MXAA5#..G,M Production:2023-04 – 2024-09 | |||
| 85532-0R110 | SOCKET, USB CHARGER, NO.2 | 1 | |
Note:AXAL5#,MXAA5#..G,M Production:2023-04 – 2024-09 | |||
| 90167-C0004 | standard | — | |

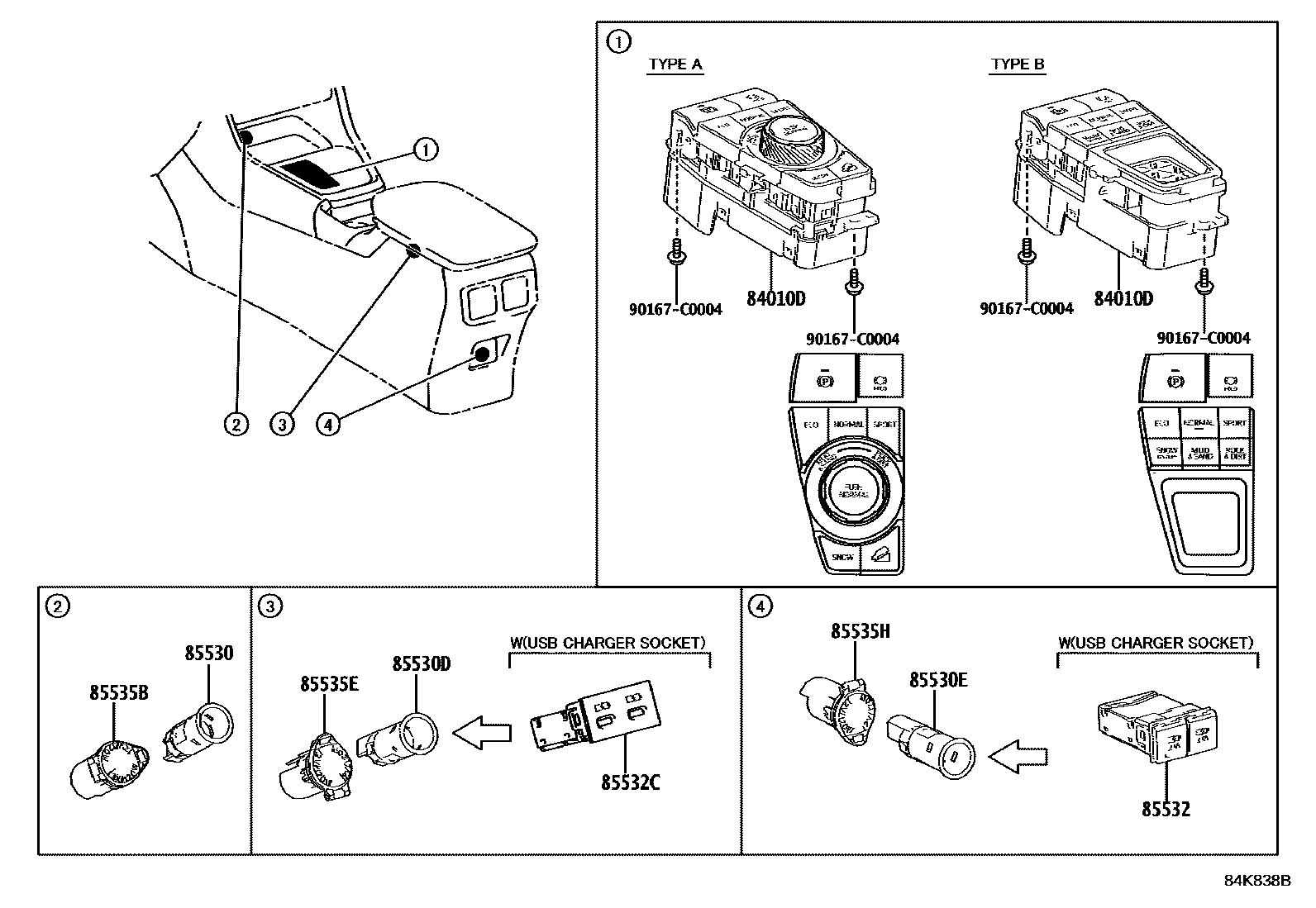

Diagram
6 parts
