Toyota Granvia-Hybrid 2024 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84040-08060 | MASTER SWITCH ASSY,MULTIPLEX NETWORK | 1 | |
Note:AXLH40..N Production:2023-03 – 2026-05 | |||
| — | Part does not apply to this vehicle configuration. | 84927 | — |
| 84872-08080 | SWITCH ASSY, OUTER MIRROR | 1 | |
Note:AXLH40..E,N Production:2023-03 – 2026-05 | |||
| 84810-03030 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:AXLH40..N Production:2022-11 – 2026-05 | |||
| 84810-03030 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:AXLH40..N Production:2022-11 – 2026-05 | |||
| — | Part does not apply to this vehicle configuration. | 84963 | — |
| 84231-0R010 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 | |||
| — | Part does not apply to this vehicle configuration. | 89430A | — |
| — | Part does not apply to this vehicle configuration. | 89430B | — |
| 84231-0R010 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:AXLH40..L,N Production:2022-11 – 2026-05 | |||
| 85532-0R120 | SOCKET, USB CHARGER, NO.4 | 1 | |
Note:AXLH40..L,N Production:2023-03 – 2026-05 | |||
| — | Part does not apply to this vehicle configuration. | 75865K | — |
| — | Part does not apply to this vehicle configuration. | 75863K | — |
| — | Part does not apply to this vehicle configuration. | 891B0 | — |
| — | Part does not apply to this vehicle configuration. | 75864E | — |
| — | Part does not apply to this vehicle configuration. | 75866J | — |
| 90167-50063 | standard | — | |
| 90167-C0019 | standard | — | |
| 90189-05183 | standard | — | |
| 90901-48003 | standard | — | |
| 90159-C0006 | standard | — | |
| 90164-C0009 | standard | — | |
| 90166-C0004 | standard | — | |
| 90166-C0005 | standard | — | |
| 90189-06245 | standard | — | |
| 90189-C0033 | standard | — | |
| 90467-07215 | standard | — | |
| 90467-C0101 | standard | — | |
| 90467-C0043 | standard | — | |

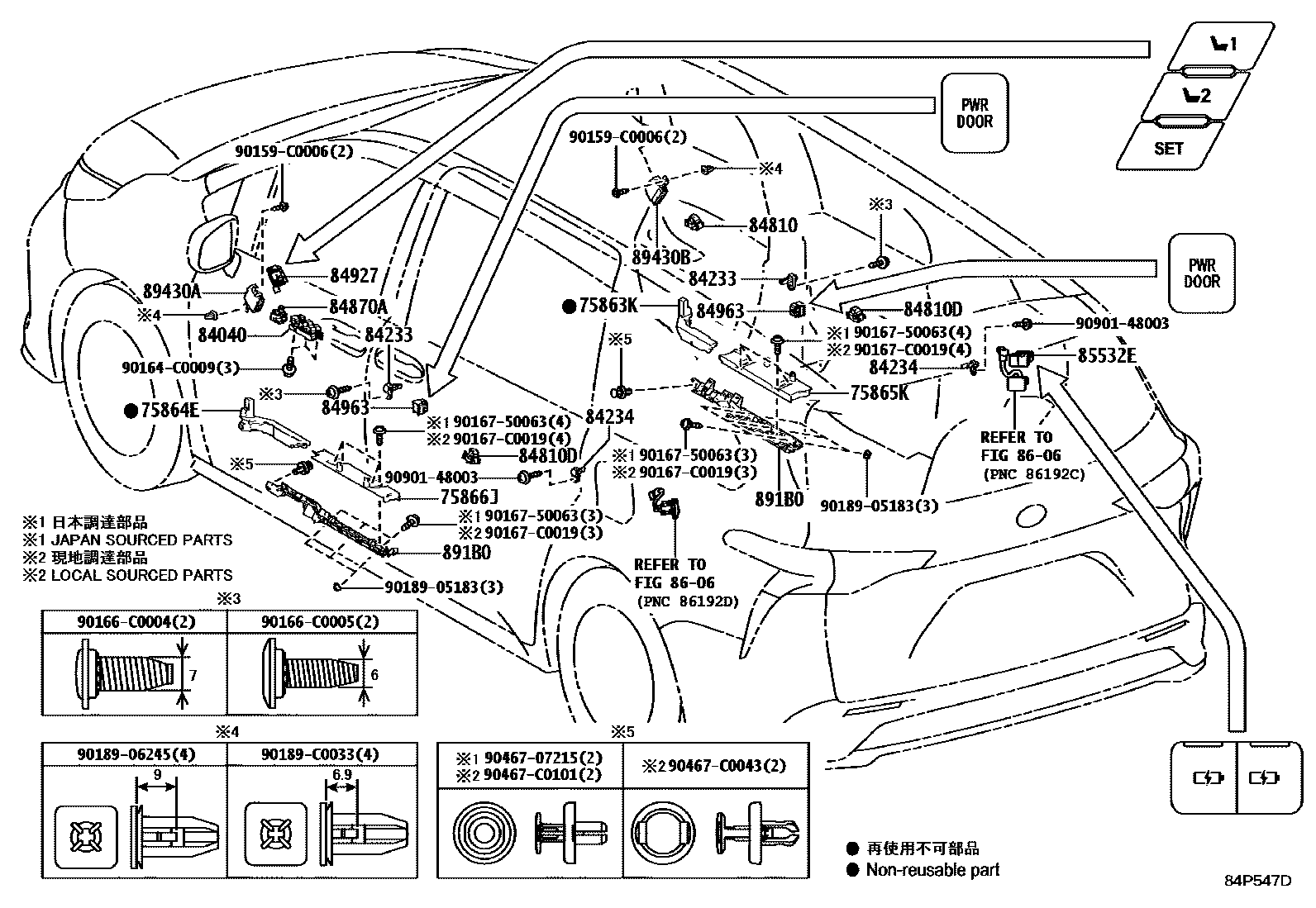

Diagram
20 parts
